Huck 244 - Page 15

MODEL 244/244OS TOOL HUCK FASTENERS
15
(CHECK VALVE HOLE)
85
83
84
82
81
75
76
78
77
INSTALL FILL & BLEED
BOTTLE HERE
85
Model 244OS
LOCKNUT (92)
PISTON STOP (89)
Model 244
RED LINE INDICATOR
124090 STALL NUT
RETAINING NUT
40
FILL TOOL 112465 IN
LOCK OUT POSITION
FILL TOOL 112465-1 IN
LOCK OUT POSITION
120337 FILL BOTTLE ASSY
INCLUDES:
120336 FILL BOTTLE
120004 CAP
FILL POINT

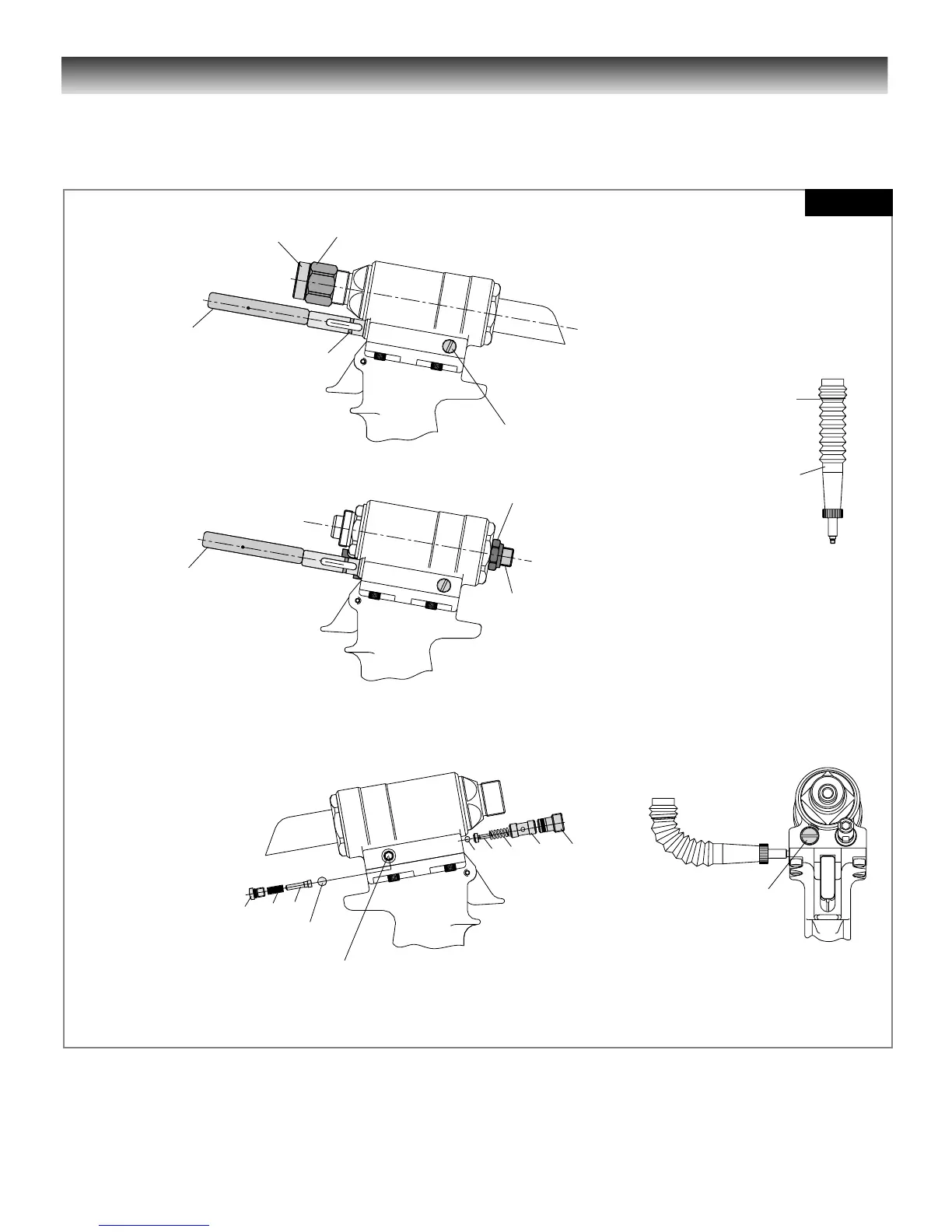

FIG. 8
FILL AND BLEED
