Huck 244 - Attaching Nose Assembly (244 OS); Nose Assembly Attachment

MODEL 244/244OS TOOL HUCK FASTENERS
21
91
90
18
9
NOSE ASSEMBLY
89
T-WRENCH
46
FIG. 12

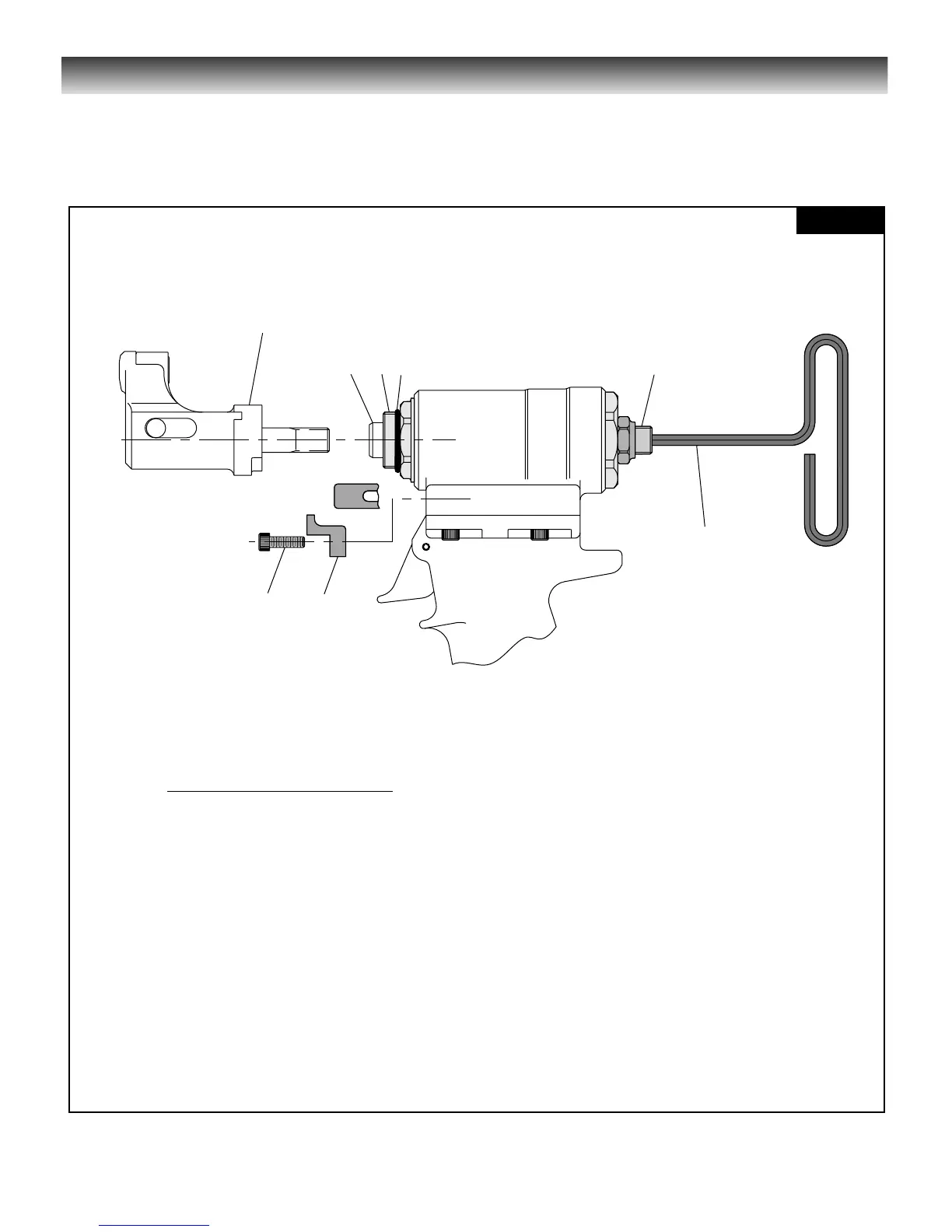

ATTACHING NOSE ASSEMBLY (244OS)
ATTACHING NOSE ASSEMBLY
1. Remove Cap Screw (91) and Rotational Stop (90).
2. Insert a 3/16" hexagonal T-Wrench through Piston Stop (89) until it engages the
internal hex in Hydraulic Piston (18).
3. Thread the nose assembly onto the tool until it bottoms out. Then back it off half to
one full turn.
4. Install Rotational Stop (90) and secure with Cap Screw (91). The nose should be free
to rotate approximately 45 degrees from the vertical in either direction (90 degrees
included).
