Huffy 214636E - Page 16

16
P/N 214636E 03/04
8
.

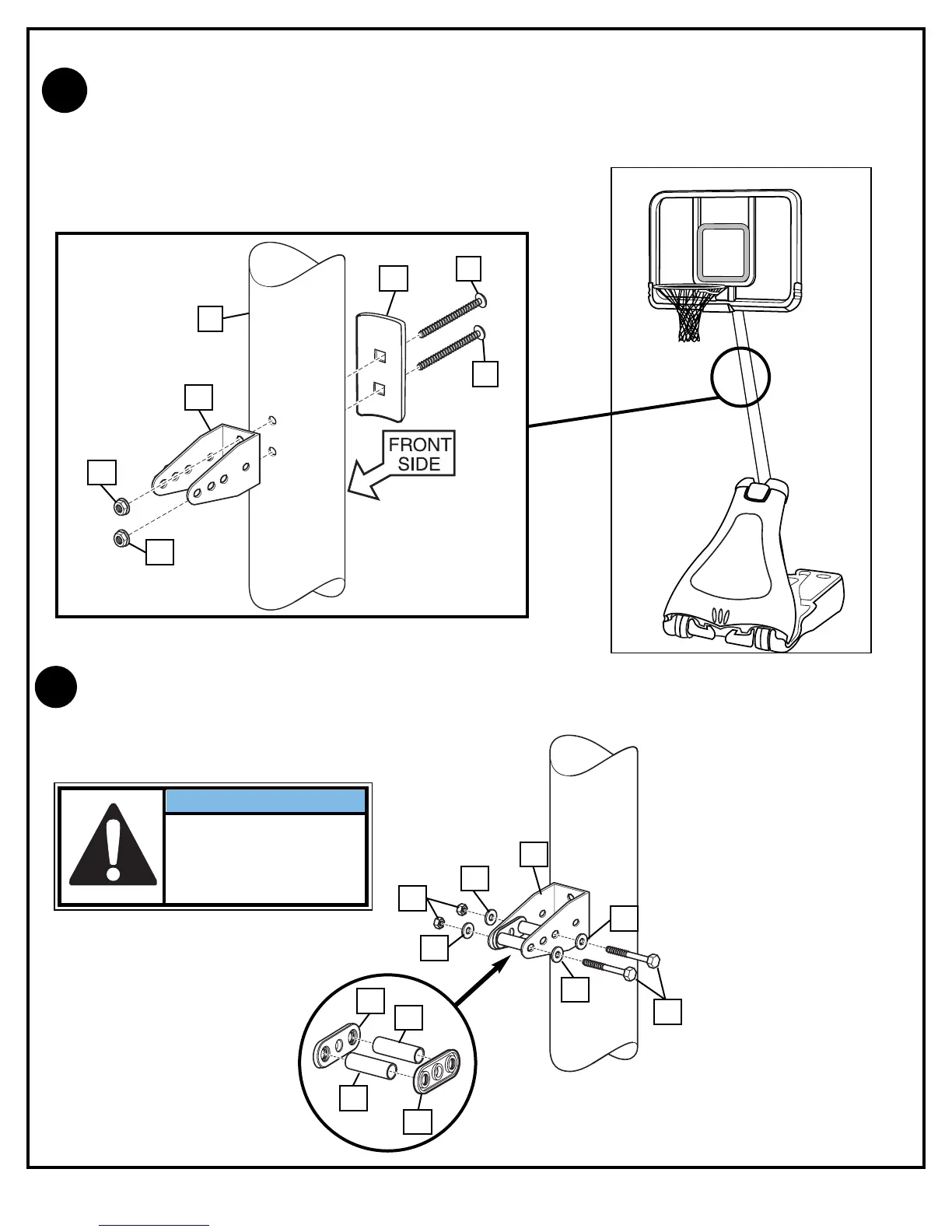

Install pole mount bracket (15) and reinforcement bracket (49) with carriage bolts
(16) as shown. Tighten flange nuts (14) completely.
4
15
14
14
49
16
16
9.
Attach spacers (20, 21) to pole mount bracket (15) with bolts (19), washers (17),
and nuts (18) as shown.
15
17
17
18
19
17
17
21
20
20
21
IMPORTANT!:
Tighten just until
washers (17) stop
moving.
