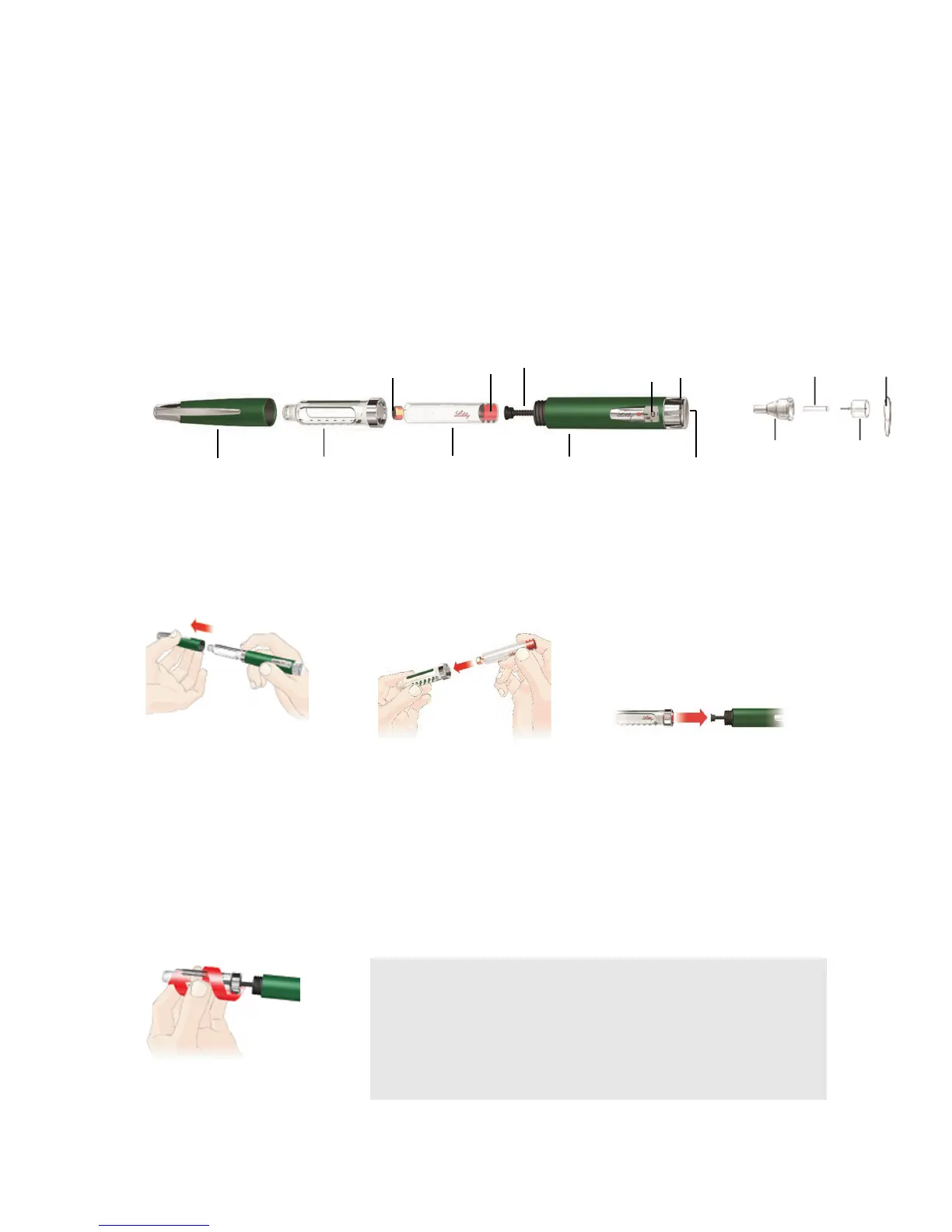

Getting Ready
Wash your hands and make sure you have the following items before beginning:
 HumaPen LUXURA
®
HD
 Lilly 3 mL Insulin Cartridge
 New Pen Needle
 Alcohol Swab
HumaPen LUXURA HD
INSULIN DELIVERY DEVICE
Pen Needle
(sold separately)
Rubber
Seal
*Cartridge
Plunger
Screw Dose
Window
Dose
Knob
Inner
Cap
Paper Tab
Pen
Cap
Cartridge
Holder
Lilly 3 mL
Insulin Cartridge
(sold separately)
Pen
Body
Injection
Button
Outer
Cap
Needle
*The colour of your Cartridge Plunger may differ
HumaPen LUXURA
®
HD Pen Parts
1
INSERT THE INSULIN CARTRIDGE
Pull Off Pen Cap Insert Cartridge Push Screw Back
Unscrew Cartridge
Holder
Insert small end of
Lilly 3 mL insulin cartridge
into the cartridge holder.

The screw may be in or
out when you get the
pen.
 If the screw is out, use
the cartridge plunger to
push the screw back.
Note:
Check the insulin cartridge
to make sure it is not
cracked or broken and
your insulin is not expired
before inserting the insulin
cartridge.
Note:
If you push the injection
button without a cartridge in
the cartridge holder the
screw will not move
forward.
A B C
