Humminbird HELIX 7 G2 SERIES User Manual

58
Sonar (2D)
Change the Sonar Colors Palette
T
he Sonar X-Press Menu allows you to quickly change the display palette while you fish. See Customize the Sonar View: Change the
View Colors for more information.
1. Sonar X-Press Menu: With a Sonar View displayed on-screen, press the MENU key once.
2. Select Sonar Colors.
3. Select a palette.
N
OTE: To display or hide the Color Bar, see Customize the Sonar View.
Switch Frequencies
If the transducer includes more than one downbeam frequency, use the CHECK/INFO key to quickly change the frequency used in
the 2D Sonar View. For more information see Sonar Overview and Set up Sonar.
1. With a Sonar View displayed on-screen, press the CHECK/INFO key.
Switch Frequencies

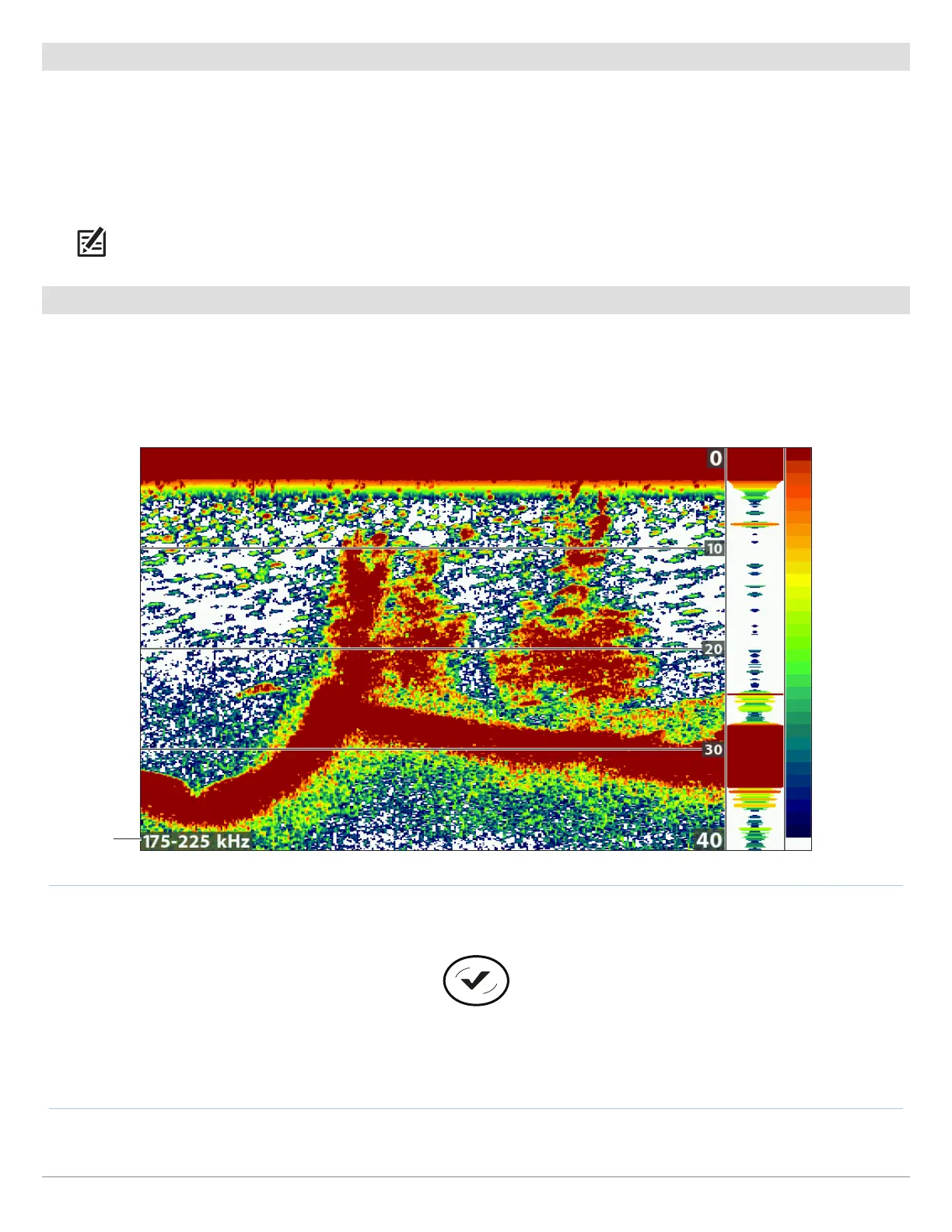

Using the CHECK key to Switch Frequencies
frequency
label

Humminbird HELIX 7 G2 SERIES Specifications

General

Power Input	10-20 VDC
Operating Temperature	-15°C to 55°C
Water Rating	IPX7
GPS Chartplotting	Yes
Display Size	7 inches
Resolution	800 x 480 pixels
Sonar	Yes
Sonar Frequencies Supported	83 kHz, 200 kHz
Max Depth	1500 ft
Power Output	500 W RMS
GPS	Internal GPS
Memory Card Slot	microSD
Connectivity	Ethernet
