Hunter Saturn 90052 - Installation Method Selection; Choose Installation Path; New Construction: Attaching to Joist Installation; Wiring, Strain Relief, and Mounting

41718-01 01/28/2008
5
9
E

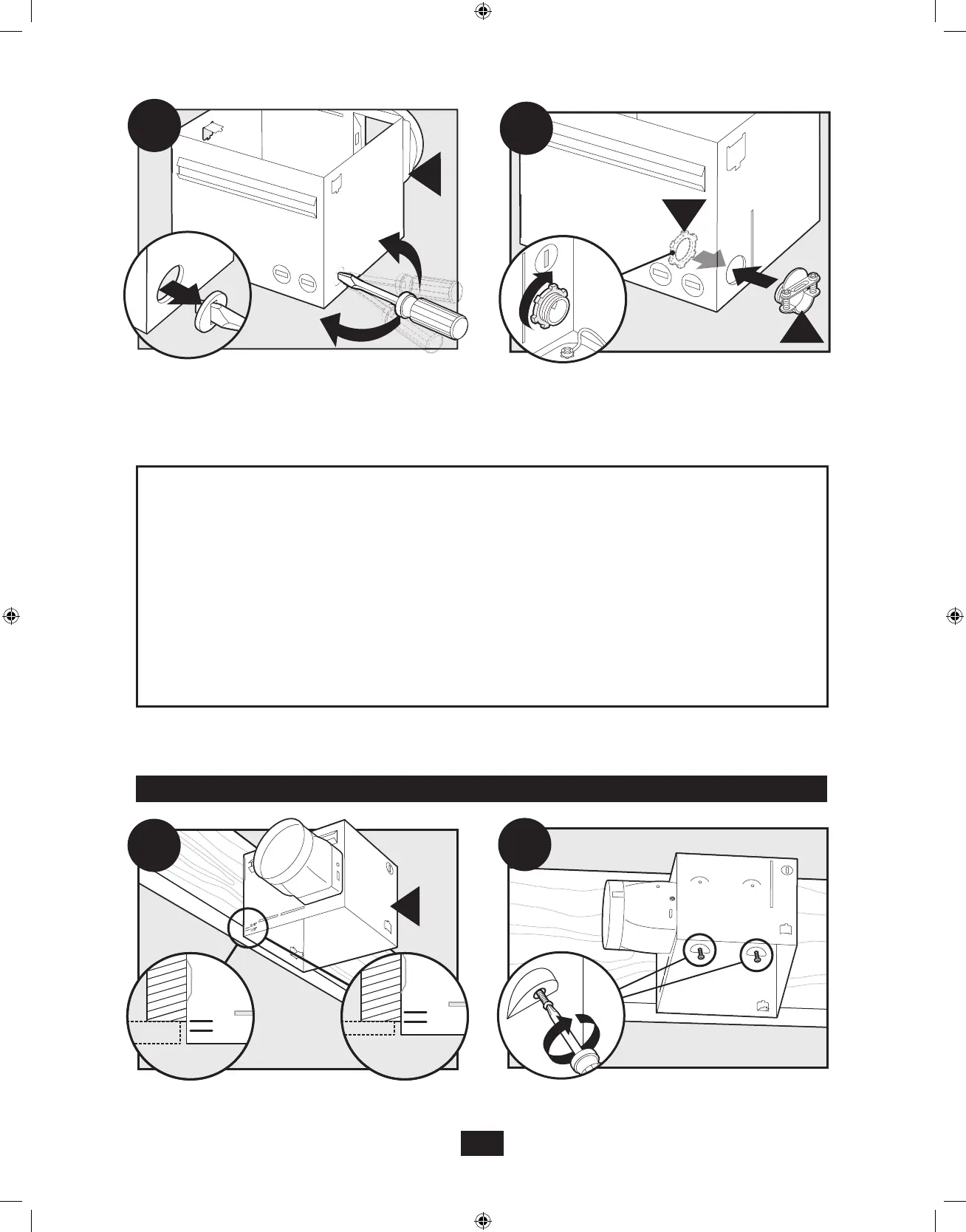

Pop out the first wiring access slug. Use second if needed. Insert the strain relief into the housing and
secure with the washer.
Position the correct depth mark at the bottom edge of the
joist based on the thickness of your sheetrock.
New Construction - attaching to joist
10
B
C
Choose Installation Option
For New Construction - attaching to joist go to step A11, page 5
For New Construction - suspended between joists go to step B11, page 8
For Existing Construction - accessible from above go to step C11, page 11
For Existing Construction - accessible only from below go to step D11, page15
A11
E
5/8
1/2
5/8
1/2
A12
Screw pre-loaded screws into joist or framing.
