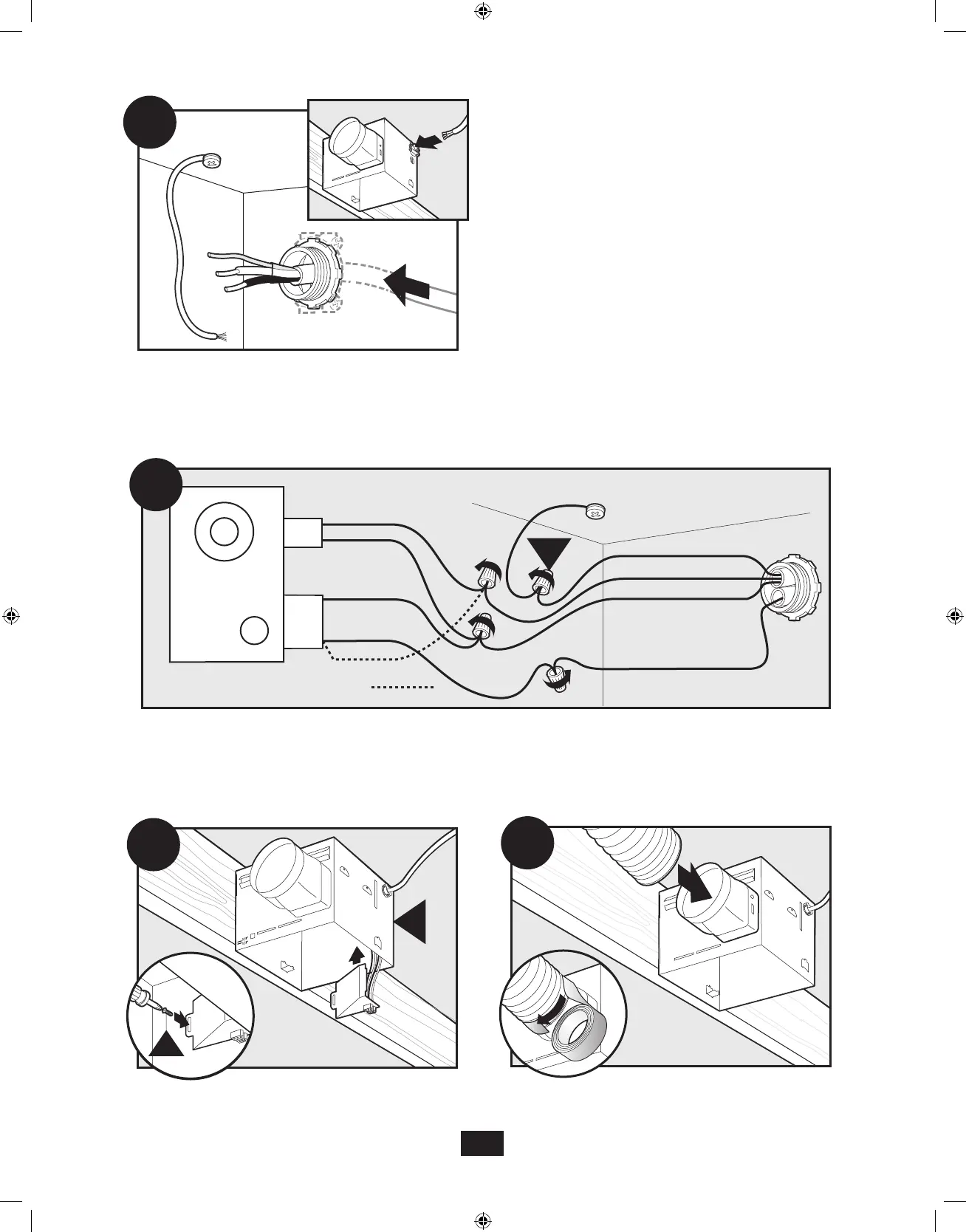

Hunter Saturn 90052 - New Construction: Attaching to Joist Installation (Continued)

41718-01 01/28/2008
6
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground
A14
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
A13
Pull wires through the strain relief.
Connect wires as shown.
0
A16
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may need
to be purchased.
A15
E
G
Install the wiring cover plate. Make sure all
wiring connections are inside the box or under
the wiring cover plate.
