Minimum and Maximum Inductor Values
Because of the flexibility of the Tracker 2700 range selection, a wide range of inductive values
can be tested. Usable signatures can be obtained from very large or very small inductors as
shown in figures 5.30.
Inductance=15µ
µµ
µH Inductance=47000µ
µµ
µH
V
s
=200mV, R
s
=10Ω
ΩΩ
Ω, F
s
=2000Hz V
s
=200mV, R
s
=10Ω
ΩΩ
Ω,
F
s
=20Hz

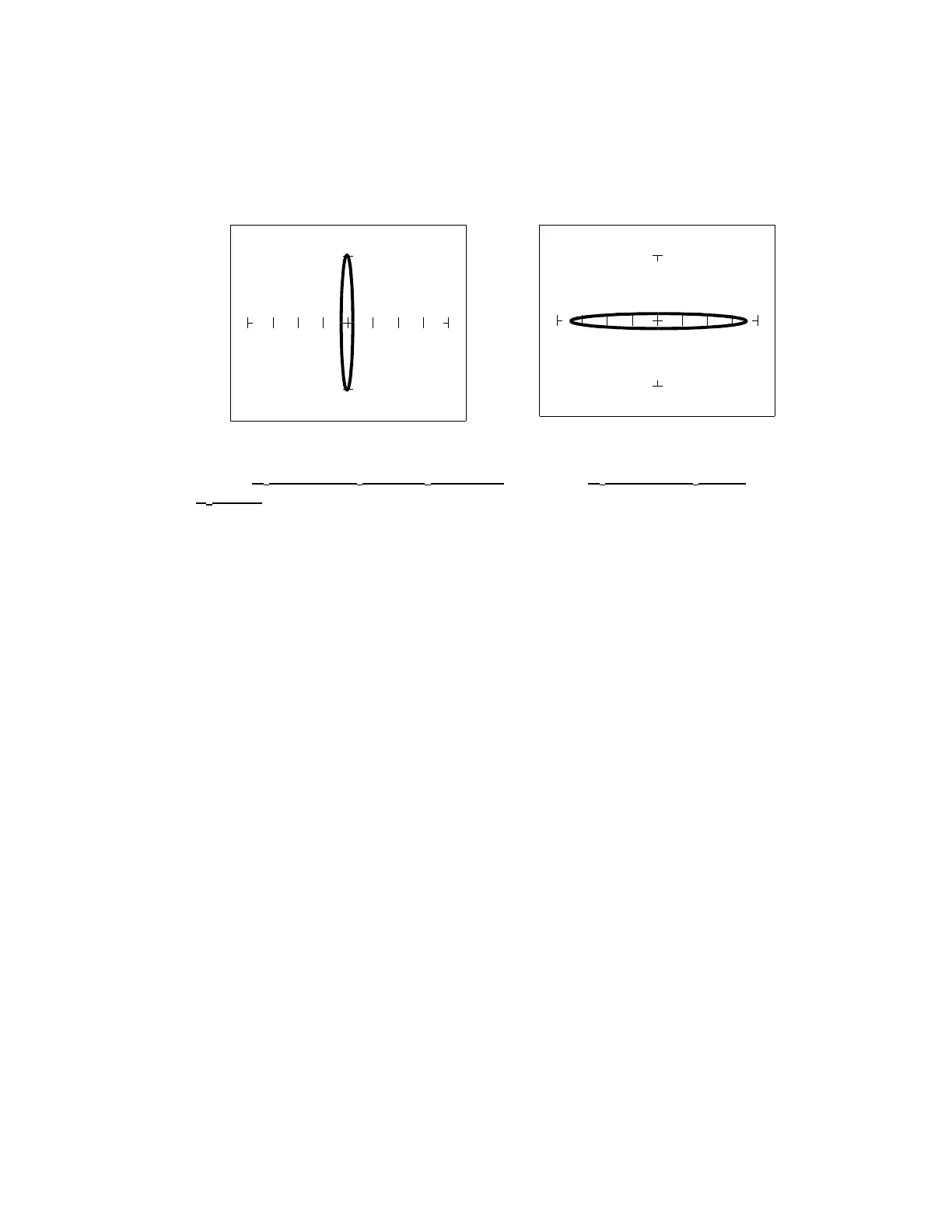

Fig. 5-30; Minimum and Maximum Inductance that will Display a Loop Type
Signature.
