This document describes the Husky Towing Products No Drill Ford Super Duty Bracket Kit, P/N: 31407, an assembly designed for installing 5th wheel hitches in Ford Super Duty trucks without requiring drilling into the truck's frame. It provides detailed instructions for assembly, installation, operation, and maintenance, along with warranty information.

Function Description:

The Husky No Drill Ford Super Duty Bracket Kit facilitates the installation of a 5th wheel hitch system in a Ford Super Duty truck. Unlike traditional bracket kits that often require drilling into the truck's frame, this "no drill" design simplifies the installation process and potentially preserves the integrity of the truck's frame. The kit works in conjunction with either the 31323 4 Bolt or 30686 10 Bolt Bed Rail Kit, providing a secure mounting platform for the 5th wheel hitch. The primary function is to provide a robust and safe connection between the truck's frame and the bed rails, which in turn support the 5th wheel hitch, enabling the towing of heavy trailers.

Important Technical Specifications:

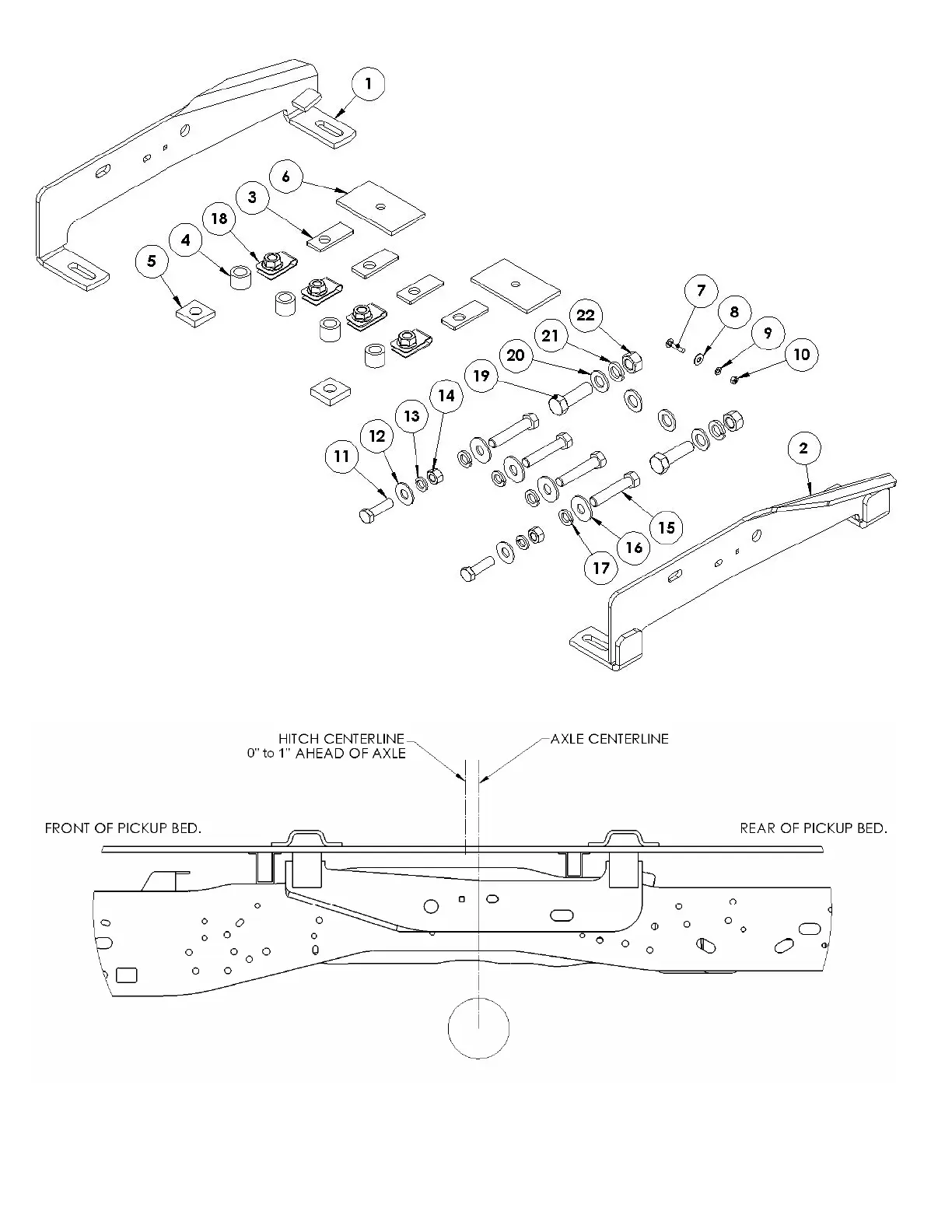

The kit includes a comprehensive list of components, each with specific dimensions and quantities:

Frame Brackets: Right (Item 1) and Left (Item 2) Frame Weldments, quantity 1 each. These are the main structural components that attach to the truck's frame.
Spacers:
- Spacer Bed 1/4" Thick (Item 3): Quantity 4. Used to adjust height and fill gaps in the truck bed.
- Spacer Tube 1" Thick (Item 4): Quantity 4. Provides spacing under bed rails.
- Spacer Frame 1/2" Thick (Item 5): Quantity 2. Used between the truck frame and frame bracket.
- Spacer Frame 1/4" Thick (Item 6): Quantity 2. Used inside the truck frame for reinforcement.
Fasteners: A variety of bolts, washers, and nuts are included to secure the components:
- Bolt, Carriage 1/4 -20 X 1-1/4 (Item 7): Quantity 1.
- Flat Washer (1/4) (Item 8): Quantity 1.
- Lock Washer (1/4) (Item 9): Quantity 1.
- Hex Nut (1/4) (Item 10): Quantity 1.
- Bolt, Hex Head 9/16-12 X 1-3/4" (Item 11): Quantity 2.
- Flat Washer (9/16) (Item 12): Quantity 4.
- Lock Washer (9/16) (Item 13): Quantity 2.
- Hex Nut (9/16-12) (Item 14): Quantity 2.
- Bolt, Hex Head 5/8" -11 X 3.25" (Item 15): Quantity 4.
- Flat Washer (5/8) (Item 16): Quantity 4.
- Lock Washer (5/8) (Item 17): Quantity 4.
- Clip Nut (5/8-11) (Item 18): Quantity 4.
- Bolt, Hex Head 3/4" -10 X 2-1/2" (Item 19): Quantity 2.
- Flat Washer (3/4) (Item 20): Quantity 4.
- Lock Washer (3/4) (Item 21): Quantity 2.
- Hex Nut (3/4-10) (Item 22): Quantity 2.

Tools Required for Installation:

3/4" Socket/Wrench
13/16" Socket/Wrench
15/16" Socket/Wrench
Drill
Torque Wrench
1/4" Drill Bit
9/16" Drill Bit
5/8" Drill Bit

Torque Specifications:

1/4" attachment bolts: 8 ft.-lbs.
1/2" attachment bolts: 75 ft.-lbs.
9/16" attachment bolts: 110 ft.-lbs.
3/4" bolts: 260 ft.-lbs.
5/8" bed rail attachment bolts: 150 ft.-lbs. (Note: DO NOT apply torque to the nut portion of the clip nuts to avoid damage).

Usage Features:

No-Drill Design: The primary feature is the elimination of the need to drill into the truck's frame, simplifying installation and potentially preserving the vehicle's warranty and structural integrity.
Compatibility: Designed to work with Ford Super Duty trucks and compatible with Husky's 31323 4 Bolt or 30686 10 Bolt Bed Rail Kits.
Clear Instructions: The manual provides step-by-step instructions with detailed illustrations for positioning frame brackets, installing spacers, and securing fasteners.
Brake Cable Management: Specific instructions are provided for relocating and re-installing the brake cable hanger, ensuring it does not interfere with the bracket installation.
Bed Liner Considerations: A crucial caution is provided regarding plastic bed liners, which must be cut out of the way. The kit can be installed on spray-in liners, but users should consult the spray liner installer for recommended curing time.
Towing Capacity Warning: A prominent warning emphasizes that users must never exceed the towing capacity of the tow vehicle, referring to the vehicle's owner's manual for limits.
Center Bolt Kit Requirement: For towing with a 26K hitch, Goose Neck, or Maneuvering System, the Center Bolt Kit 32059 (sold separately) is required.
Adjustability: Instructions include checking and adjusting rail hitch pin movement by placing shims between the upright and cross member if necessary.

Maintenance Features:

Regular Torque Checks: The manual implicitly suggests that all fasteners should be tightened to specified torque values during installation, which implies that periodic checks of these torque values are good practice to ensure continued safety and prevent fastener loss or failure.
Proper Installation for Longevity: Adherence to the detailed installation instructions, including proper placement of spacers and correct torque application, is essential for the long-term performance and safety of the bracket kit. Incorrect installation can lead to fastener loss or failure.
Warranty Support: The product is backed by a 5-Year Limited Warranty for manufacturing and material defects for individual and recreational use, or a 90-day warranty for commercial use. This provides assurance for potential defects, although it does not cover normal wear and tear, improper installation, misuse, or damage from accidents. Users are encouraged to refer to www.huskytow.com for warranty information and tech support.
Product Updates: The document itself is subject to updates, indicating a commitment to continuous improvement and support.

This bracket kit is a specialized component designed to integrate seamlessly with specific Husky 5th wheel hitch systems and Ford Super Duty trucks, offering a secure and convenient towing solution with a focus on ease of installation and safety.
