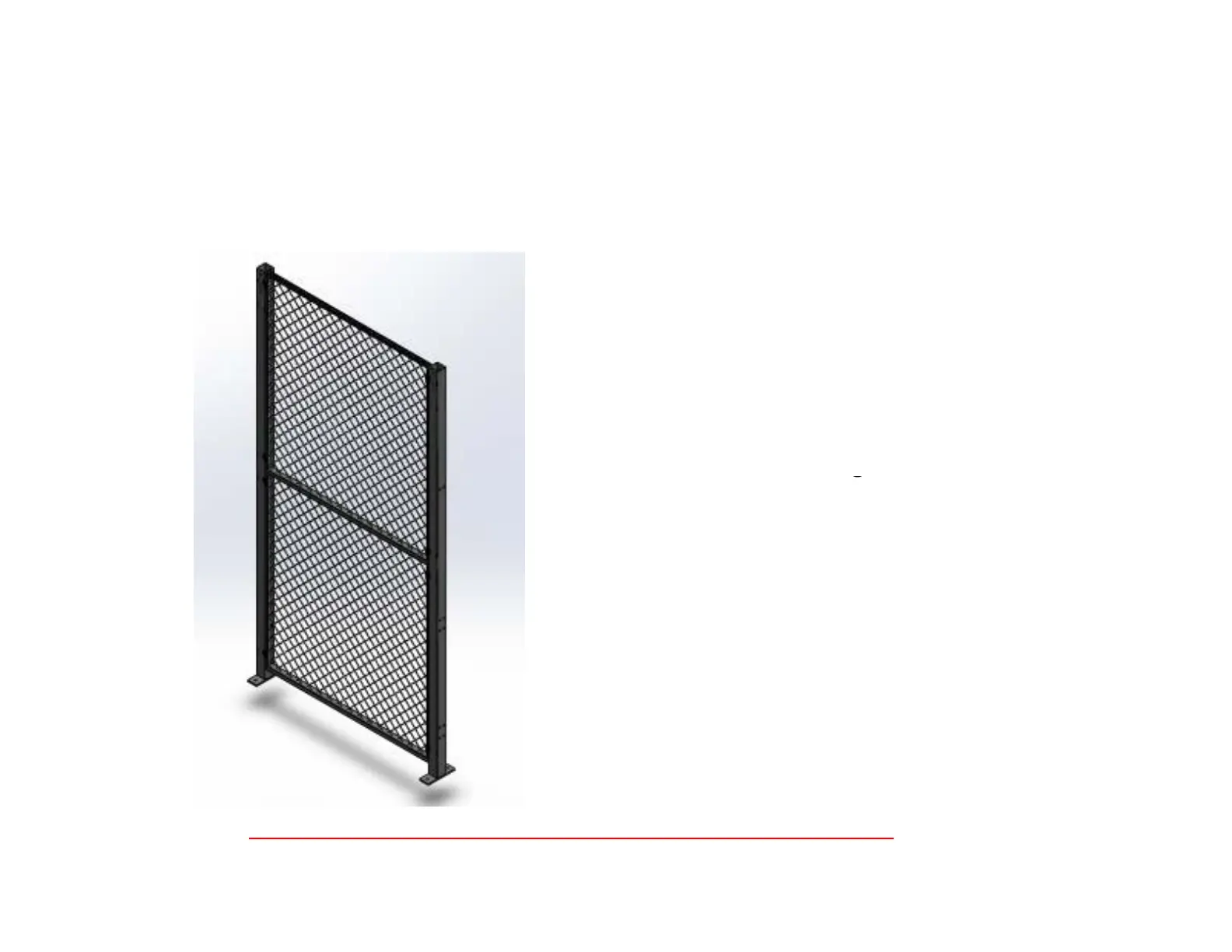

PANEL/POST ARRANGEMENTS
• Use a chalk-line to mark the partition
runs on the floor.
• Starting with a Line Post, lag the post
to the floor using two floor anchors.
(the line post is 2 ½” square tube
with 2 ½” x 7 ½” footplate welded to
it). Make sure the slots are facing
• Stand up another Line post at a
distance of width of the panel to be
installed. (Distance between in the
post = Nominal width of the Panel – 2
3/8”). For 8’ panel, distance between
the post is 96”-2 3/8” = 93 5/8”
• Pick up the panel and install the
hooks in the slots of the line post.
Install bottom panel first.
• Install top panel and fasten to the
post using drive pins.
3
• EZ Wire panels are installed from the inside of the cage.
