SINGLE SLIDE DOOR
• Slide doors can be installed inside or outside .
• The inside distance between the posts is measuring
width of the door – 2 ½”. (If a panel is installed
above the door, the opening between the posts will
be the width of the panel)
• Install lock in the door first.
• Attach two 4-wheel trolley per door in the ½”
diameter holes provided.
• Using 5/16” x 3” carriage bolts and nuts, install
Latch Receiver and Bottom Slam.

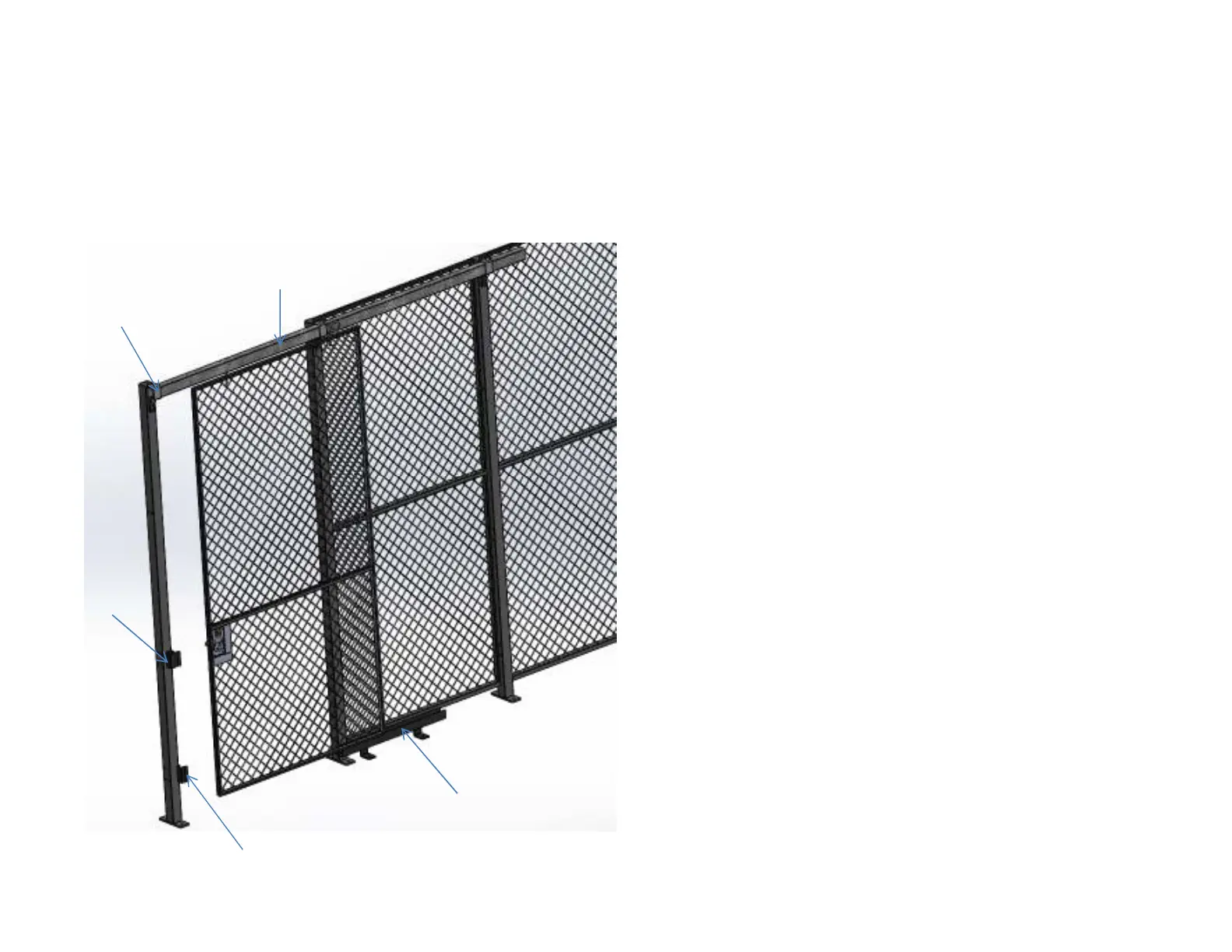

Install the Track Bracket to the post on either side of
TRACK
BRACKET
OVERHEAD
TRACK
Install the Track Bracket to the post on either side of
the door opening using 5/16” x 3 ½” carriage bolts
and nuts. A third Track bracket can be installed on
the post or to the panel using Panel Kit Plate.
• Install the Door Track in the Track Brackets. Secure
the Track by tightening ¼” screw provided.
• Slide the door trolleys into the overhead Track.
• Install a track bumper as a keeper for the door
Trolleys.
• Attach the Bottom Guide as shown.
LATCH
RECEIVER
BOTTOM SLAM
BOTTOM
GUIDE
8
