4
1
502 50 18-01

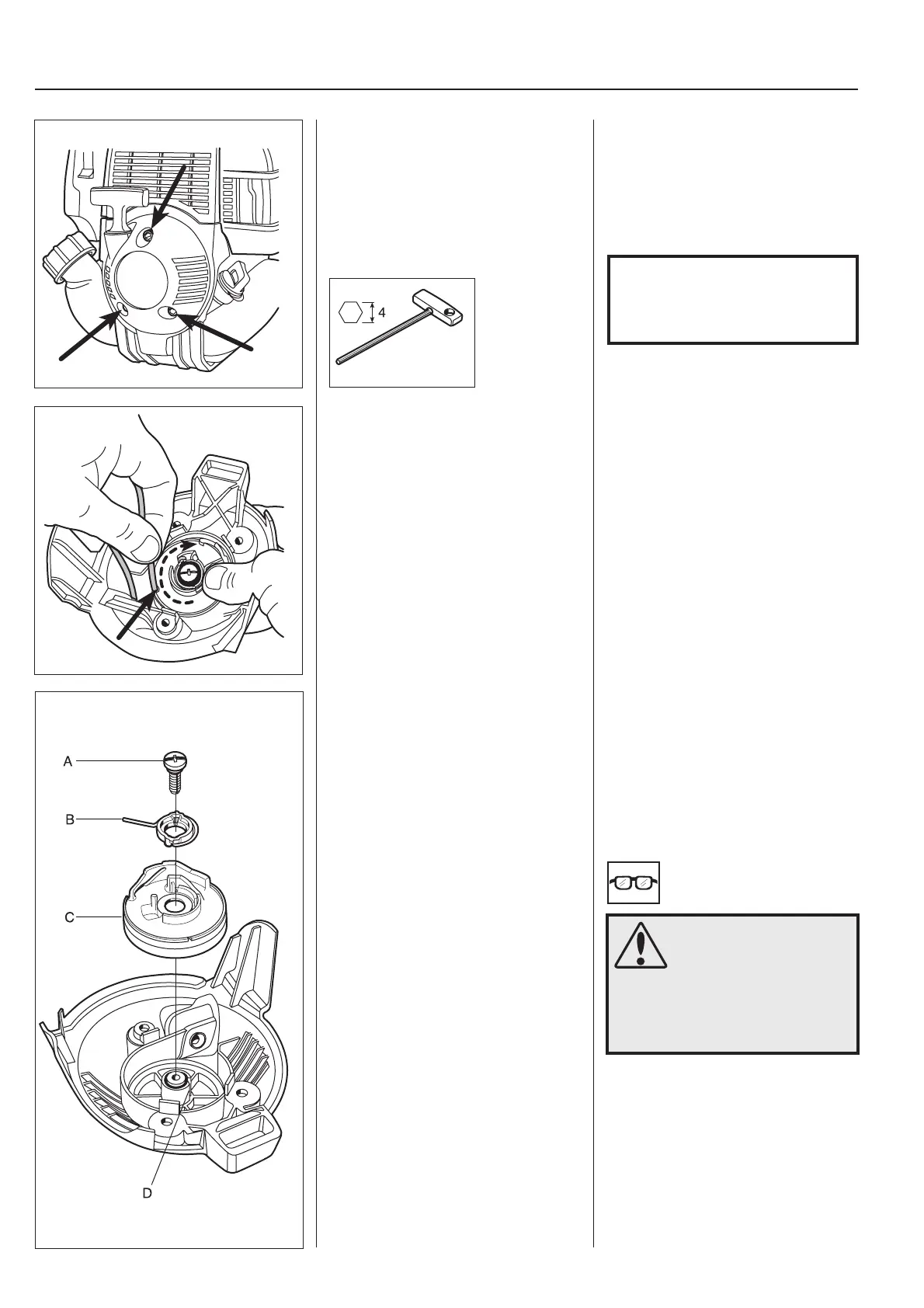

Starter
WARNING!
Wear protective glasses.
The return spring lies tensioned in
the starter and can fly out and
cause personal injury with care-
less handling.
Dismantling
Remove the 3 bolts and lift off the
starter.
Dismantling
Loosen the screw holding the cylinder
cover.
Dismantle the 3 screws holding the
starter.
Lift off the starter.
NOTE!
Ensure that the bushing, which
guides the starter towards the fuel
tank, is not lost.
Loosen the spring tension.
Lift up the starter cord on the starter
pulley and allow it to rotate backwards
until the spring tension ceases.
Loosen the spring tension.
Pull out the starter cord about 30 cm.
Slow the starter pulley with your thumb.
Lift the starter cord up out of the cut-out
on the starter pulley.
Let the starter pulley rotate backwards
until the spring tension ceases.
Dismantle the screw and drive spring.
Carefully lift off the starter pulley so that
the return spring does not fly away.
Dismantle the screw (A) in the centre of
the starter pulley.
Lift off the drive spring (B).
Carefully lift away the starter pulley (C),
which also includes the starter spring.
Using a small screwdriver, slide up the
ends of the spring from its mounting on
the bearing journal (D) in the starter
housing.
