Husqvarna YTH1848XP - Page 39

39
REPAIR PARTS
TRACTOR - MODEL NO. YTH1848XP (HAU18H48C), PRODUCT NO. 954 17 00-57

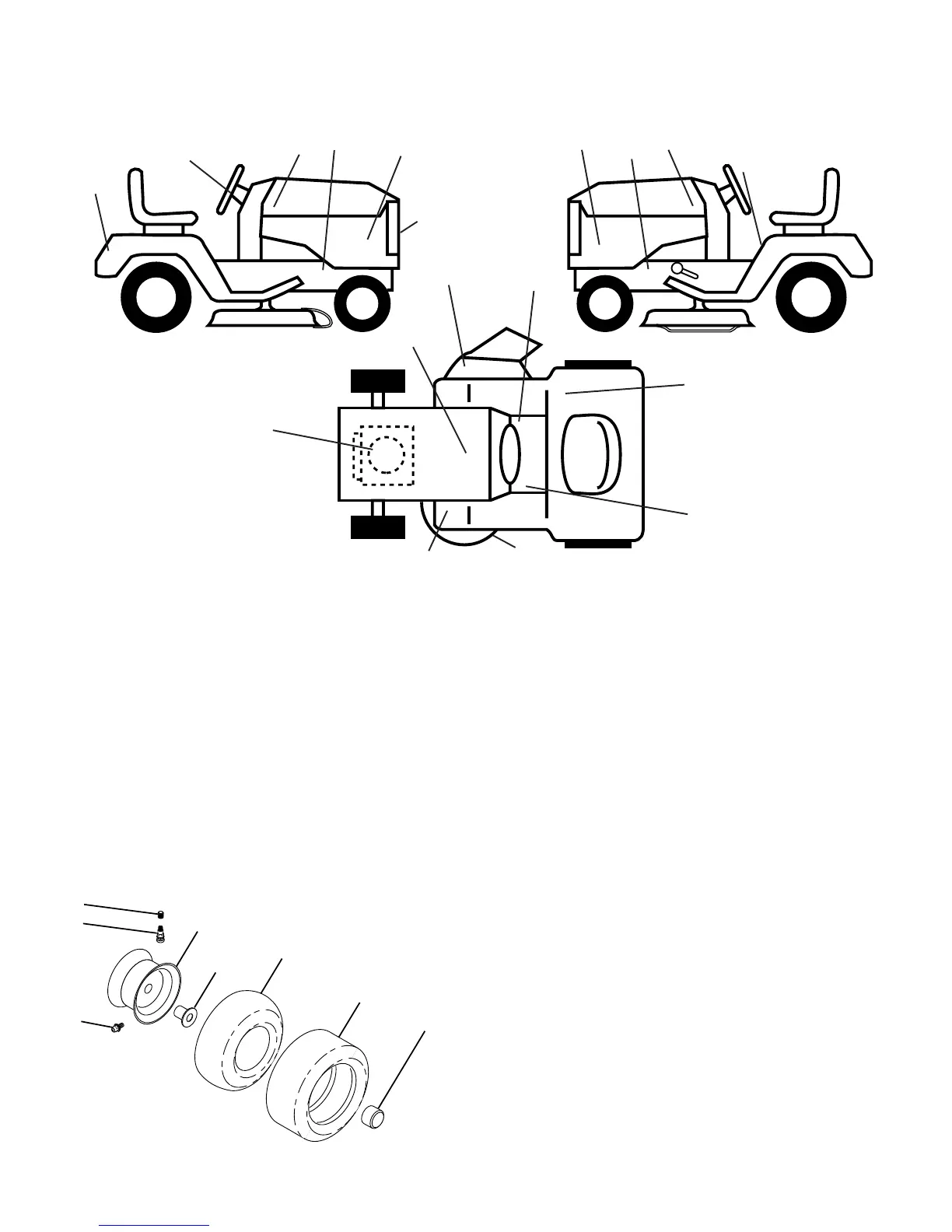

DECALS
1
4
3
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 12 20-82 Tire R Ts 20x10-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 X 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
20
8
14
1 532 14 54-98 Decal Oper Inst Hyd E/F
2 532 17 05-64 Decal Strg Wheel Logo
3 532 17 76-72 Decal Hood RH
4 532 17 76-73 Decal Hood LH
5 532 17 83-86 Supplied By Kawaski
6 532 15 06-16 Decal Grille Husq
7 532 14 08-37 Decal Brake Parking
8 532 18 21-66 Decal Cut Finger CE
9 532 17 68-22 Decal Fender Husq
10 532 15 97-37 Decal Brake/Clutch Symbol
11 532 17 68-71 Decal Hood Sides
KEY PART
NO. NO. DESCRIPTION
10
6
2
1
5,8
4,10
3,9
11
7
WHEELS & TIRES
12 532 17 85-02 Decal Clutch/Brake
13 532 15 97-36 Decal Chassis Hot Muffler
14 532 17 52-91 Decal V-Belt Schematic
15 532 16 88-69 Decal Tick Mark
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 92-10 Decal By Pass Lt Hydro
- - 532 17 12-84 Pad Footrest LH
- - 532 17 12-85 Pad Footrest RH
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 25-98 Decal Draw Bar Load Limit
- - 532 18 35-15 Manual Owner's (English)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
12
5
11
11
6
13
13
7
15
