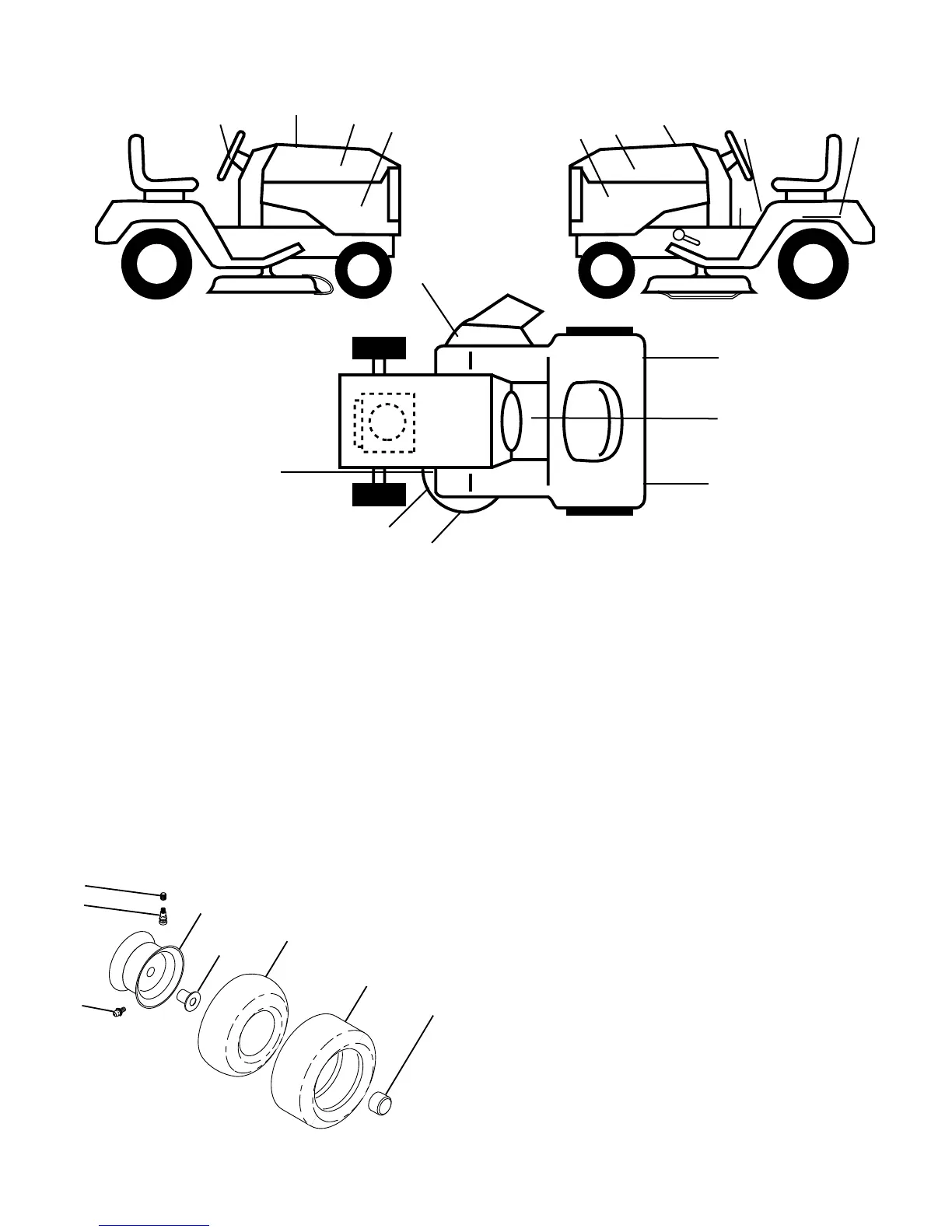

TRACTOR - MODEL NO. YTH2748 (96013001000), PRODUCT NO. 960 13 00-10
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
5,8
4,10
3,9
11
7
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
10
3
16
9
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F T 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6" front Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel nly)
8 532 13 83-37 Rim Asm 8" rear Service
9 532 12 20-82 Tire R T 20 x 10-8 Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
8
20
14
2
1 532 19 39-39 Decal Oper
2 532 18 92-43 Decal Dash
3 532 18 89-19 Decal Hood LH
4 532 19 63-30 Decal Side Panel Logo
5 532 17 84-82 Decal Deck HVY DTY 10G
6 532 17 05-63 Decal Warning, Keep Hand Away
7 532 18 09-41 Decal Cust. Resp.
8 532 17 85-02 Decal Deck Caut. Prem.
9 532 19 43-71 Decal Replacement Parts
10 532 15 71-40 Decal Fender Danger E/F
11 532 18 89-25 Decal Ins Strg Whl
1
12 532 17 35-87 Decal Fend Refl ector Rh
13 532 17 35-89 Decal Fend Refl ector Lh
14 153 27 52-91 Decal V-Belt Schematic
16 532 18 89-18 Decal Hood Rh
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 69-60 Decal By Pass Lt Hydro
- - 532 13 73-11 Decal Handle Lift
- - 532 18 82-52 Pad Footrest LH
- - 532 18 82-53 Pad Footrest RH
- - 532 19 54-05 Manual Owner's (English)
- - 532 19 54-06 Manual Owner's (French)
7
11
4
4
6
12
13
5
