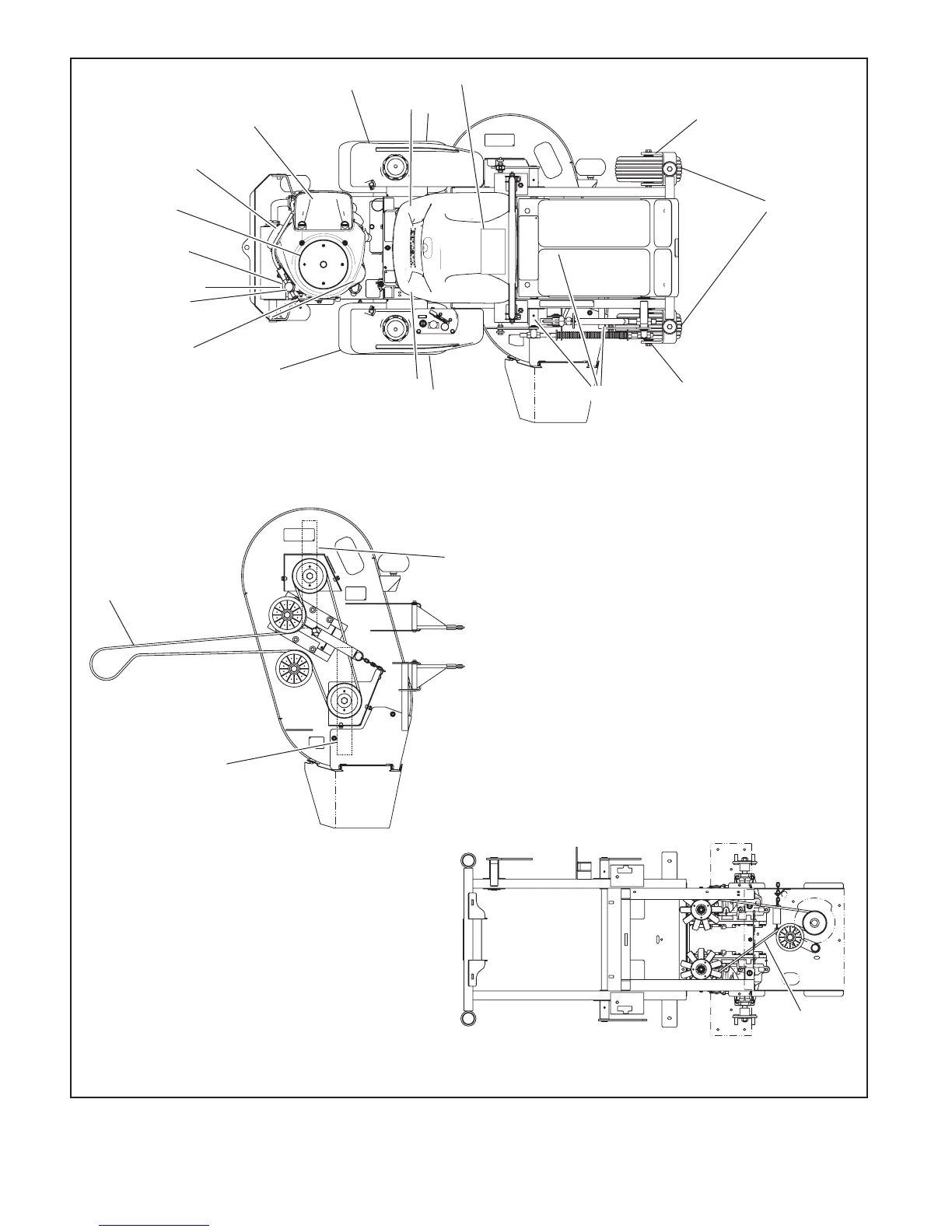

FasTrak 36/42 Maintenance
Locator Chart
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3a. Engine Air Cleaner (Honda)
3b. Engine Air Cleaner (Kohler)
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Gauge Wheel Bearing Zerks (2)
8. Engine Oil Filter
9. Deck Lift Pivot Zerks (3)
10. Park Brake Switch (2)
11. Drive Tire
12. Deck Belt
13. Pump Belt
14. Blades
15. Engine Air Intake Screen
16. Front Gauge Wheel Tires
6
8
15
1
2
3a
7
7
5
10
4a
6
10
Figure 4-9
14
14
12
11
11
16
Viewed from top of unit
3b
4
9
13
Viewed from top of unit
