Anti-Scalp Wheels
Anti-scalp wheels are standard on these mowers. These
wheels are designed to minimize scalping when mowing on
rough uneven terrain.
Figure 3-15
The anti-scalp wheels can be installed in three positions.
With the wheel mounted in the bottom hole, the wheel is
located 2" (50.8
mm) below the mower blades. This setting
is preferred when mowing at cutting heights of 2.50"
(63.5
mm) or higher.
With the wheel mounted in the middle hole, the wheel is
located 1.5" (38.1
mm) below the mower blades. This setting
is preferred when mowing at cutting heights of 2.00"
(50.8
mm) or higher.
When the wheel is mounted in the top hole, it is located 1"
(25.4
mm) below the mower blades. This is the acceptable
setting for mowing at cutting heights of 1.50" (38.1
mm) or
higher.

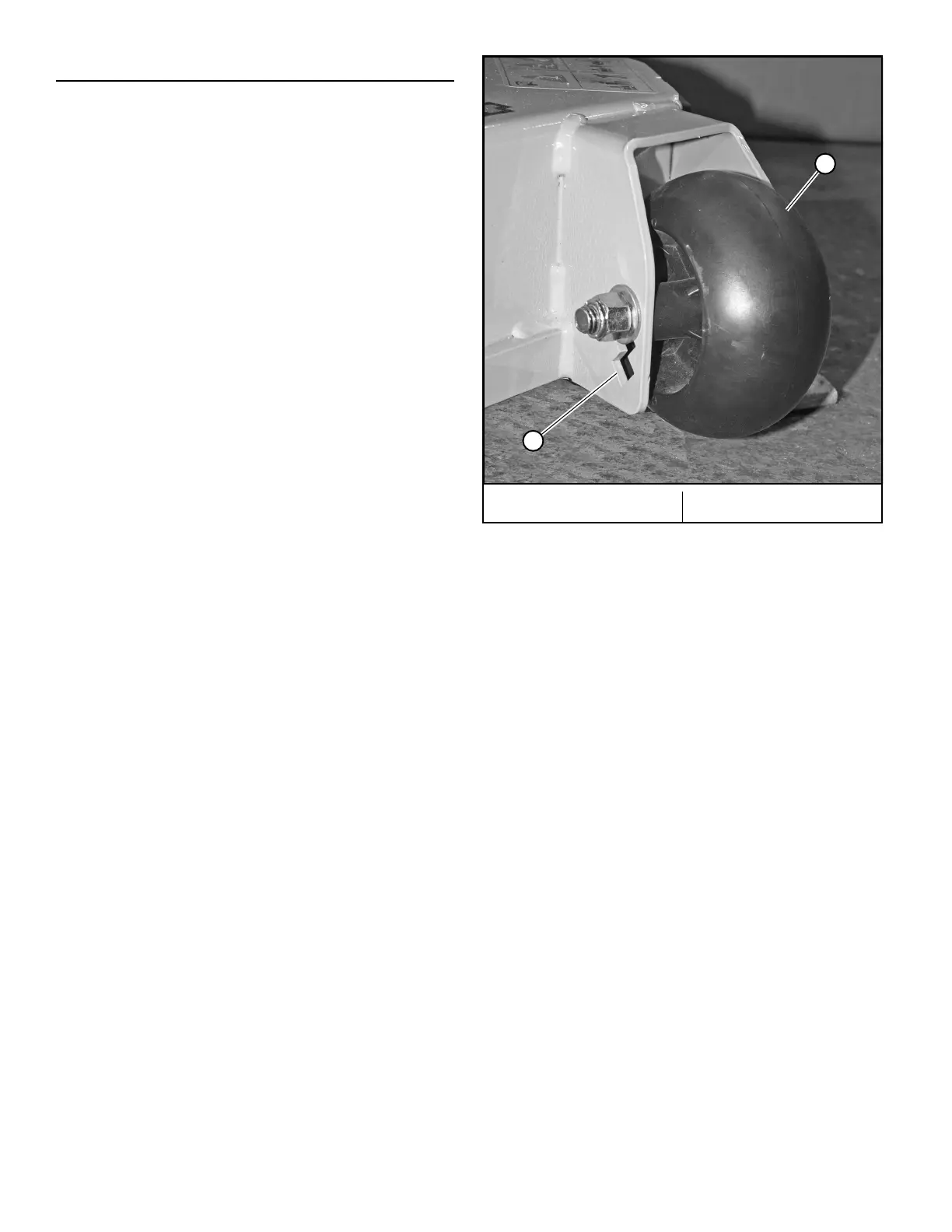

A. Anti-scalp wheel B. Adjusting holes
Figure 3-15
A
B
