606653 3-11 REV A
1. Check the torque of the occupant protective structure
mounting bolts. Tighten the bolts to the correct
torques as shown below. Figure 3-19
2. Inspect the mounting parts for the seat belt. Tighten
the bolts to the correct torque as shown below.
Replace any parts that show wear or damage.
Figure 3-19 & Figure 3-20
3. Inspect the mounting parts for the seat belt latch.
Tighten the bolts to the correct torque as shown
below. Replace any parts that show wear or damage.
Figure 3-21
Torque values:
ft-lbs N•m
Occupant protective structure
mounting hardware . . . . . . . . . . . . 73. . . . . . . . . 99
Seat belt mounting hardware . . . . . . 48. . . . . . . . . 65
Seat belt buckle hardware . . . . . . 204 in-lbs . . . . . 23

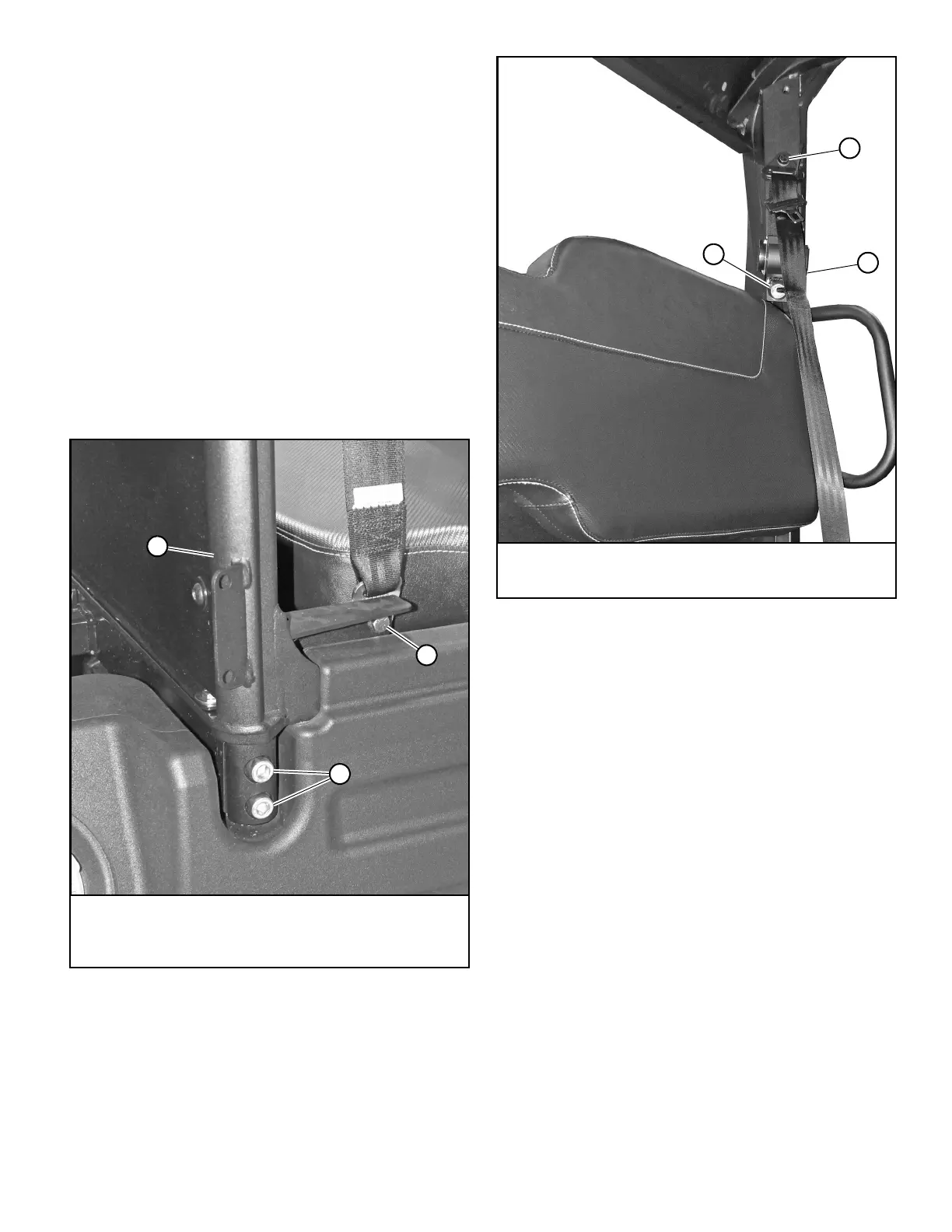

A. Occupant protective structure post
B. Occupant protective structure mounting hardware
C. Seat belt mounting hardware
Figure 3-19
A. Seat belt
B. Seat belt mounting hardware
Figure 3-20
