WARNING: When mounting blades, rotate
them after installation to ensure blade tips do not
touch each other or sides of the mower.
WARNING: Failure to correctly torque the bolt
may result in the loss of the blade which can
cause serious injury.
WARNING: Mower blades are sharp and can
cut. Wrap the blade(s) or wear gloves and use
extra caution when servicing them.
Warped Blade (Replace)
Straight Blade

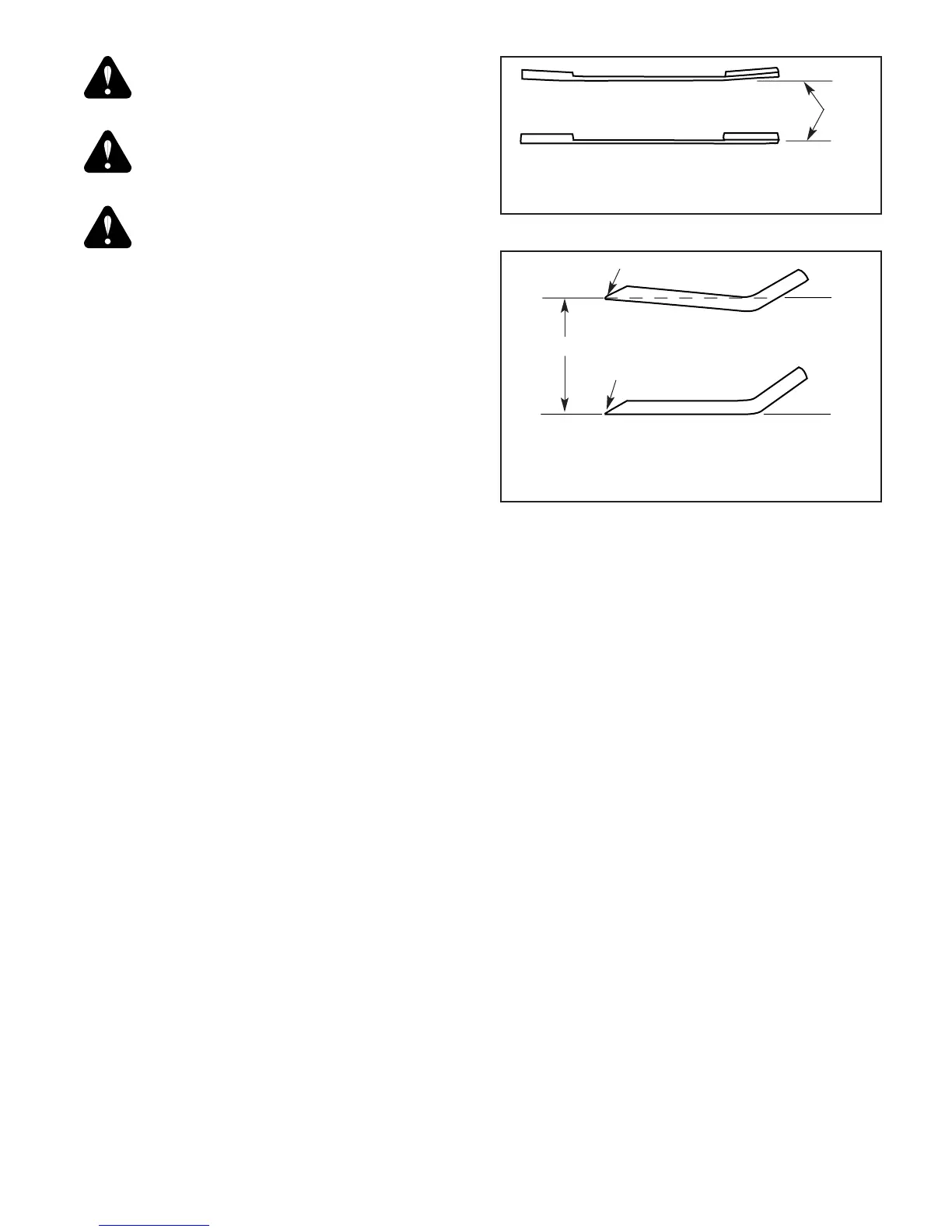

Comparison of Warped and Straight Blades
Cutting
Plane
Figure 4-21
Figure 4-22
Twisted Blade Edge
(Replace)
Cutting Edge
Straight Blade Edge
End view of blades, comparing
twisted and straighten blades.
Cutting Plane
Cutting Edge
4-13
375527_0406
To Next Page
