HUSTLER Super Z User Manual

3-4 114565_0112

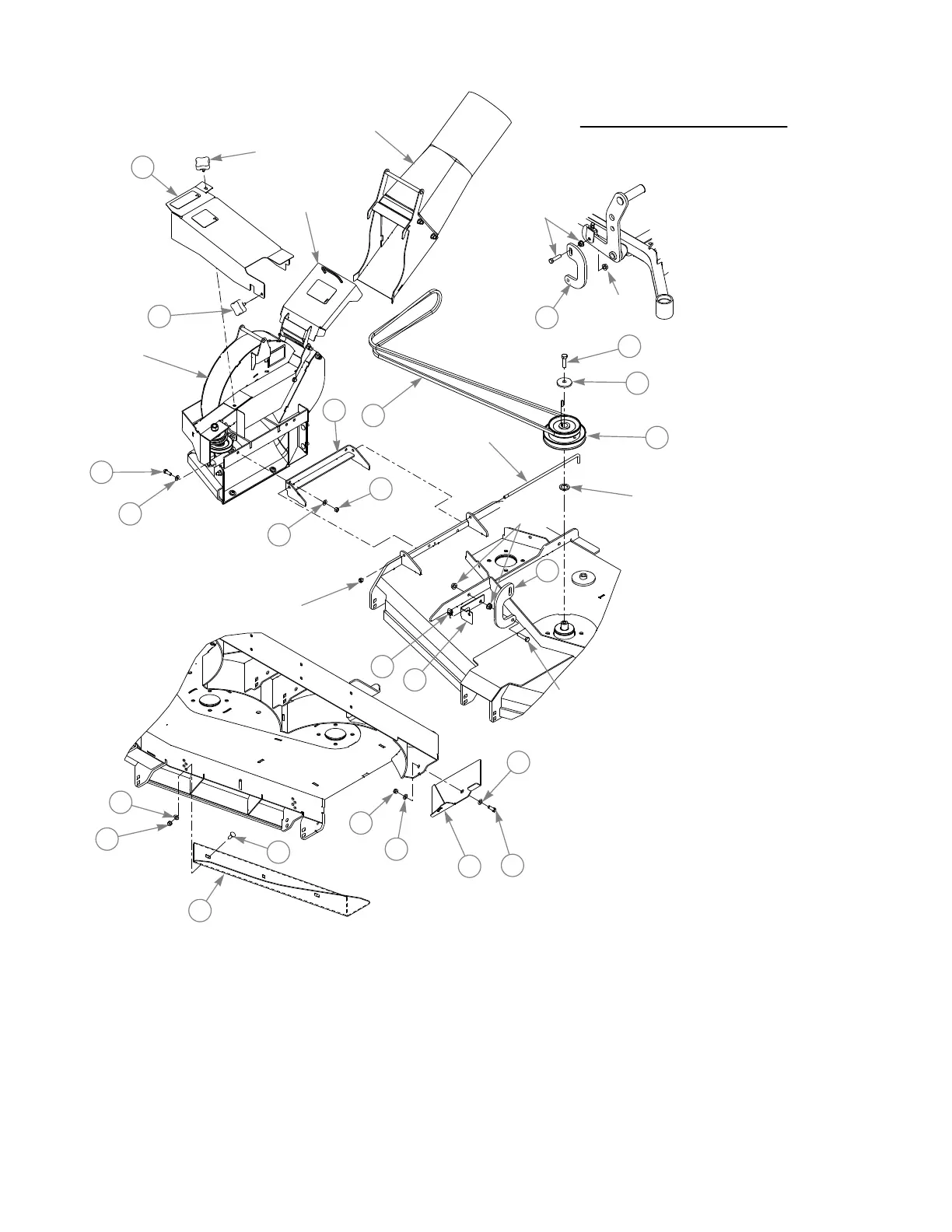

Figure 3-2
INDEX
NO.
PART NO.
DESCRIPTION
1 115772 CENTER DRIVE COVER
2 603806 110.5" EL A-SEC BELT
3 114361 RS BLOWOUT BAFFLE
4 113127 BLOWER BAFFLE
5 113118 BLOWER MOUNT
6 792002 KNOB 5/16-18 X 3/4"
7 115665 RIGID LINK
8 115773 CENTER DRIVE BRACKET
9 603311 60" DOUBLE DRIVE PULLEY
10 752386 CW .515 X 2.25 X .204 BLK
11 017616 CS .500-13 X 1.750 HX G5
12 036244 CS .375-16 X 1.000 HX G5
13 025395 CB .375-16 X 1.00 G5 ZNY
14 767954 FW .406 X .812 X .060 SAE
15 054502 NT .375-16 HX GRD 5 ZNY
16 086660 NT .375-16 HXZY NL
17 601069 CN .312-18 X .200 MAX THK
1
2
3
5
4
7
8
9
10
15
11
13
6
12
14
Existing
hardware
Blower
assembly
Existing
hardware
14
14
16
12
Existing
hardware
Outlet tube and
adapter assembly
7
Existing
hardware
Existing
rod
Existing
hardware
Existing
hardware
14
14
15
Install in lower set of holes
17
Discharge
cover
Existing
hardware
113903 (60” X-ONE)
Adapter Assembly
