Catcher Frame Adapter — Super Z
NOTES:
1. In the event the serial number tag becomes damaged or illegible, please
contact your dealer to order a replacement.
INDEX NO. PART NO. QTY. DESCRIPTION
11 113965 1 LID MOUNT LATCH
12 712976 4 FW .531 X 1.375 X .125 ZNY
13 113969 2 KEEPER LATCH
14 113773 1 PIVOT MOUNT
15 N/A 1 SERIAL NO. PLATE
16 113781 1 MOUNT, RS
17 034272 4 NT .312-18 HX G5 ZNYC
18 768523 8 FW .343 X .687 X .051/.080H
19 036236 4 CS .312-18 X 1.000 HX G5
20 054502 2 NT .375-16 HX GRD 5 ZNY
21 008193 8 NT .500-13 HX G5 ZNYC
22 767962 20 FW .531 X 1.063 X .090 SAE
23 074252 6 CS .500-13 X 1.500 HX G5
24 036244 2 CS .375-16 X 1.000 HX G5
25 113782 1 MOUNT, LS
26 114259 1 BAG GUARD
27 078386 2 FW .510 X 1.750 X .18 ZNYC
28 017616 6 CS .500-13 X 1.750 HX G5
29 024927 2 NT .250-20 HX GR.5 ZNYC
30 768515 2 FW .281 X .625 X .051/.080H
31 603358 1 LID LATCH SPRING
32 704163 1 CS .250-20 X 2.00 HX G5 Z
33 603356 1 FLEX TUBE
34 603127 3 CATCHER BAG
35 603677 3 COMPRESSION COUPLING

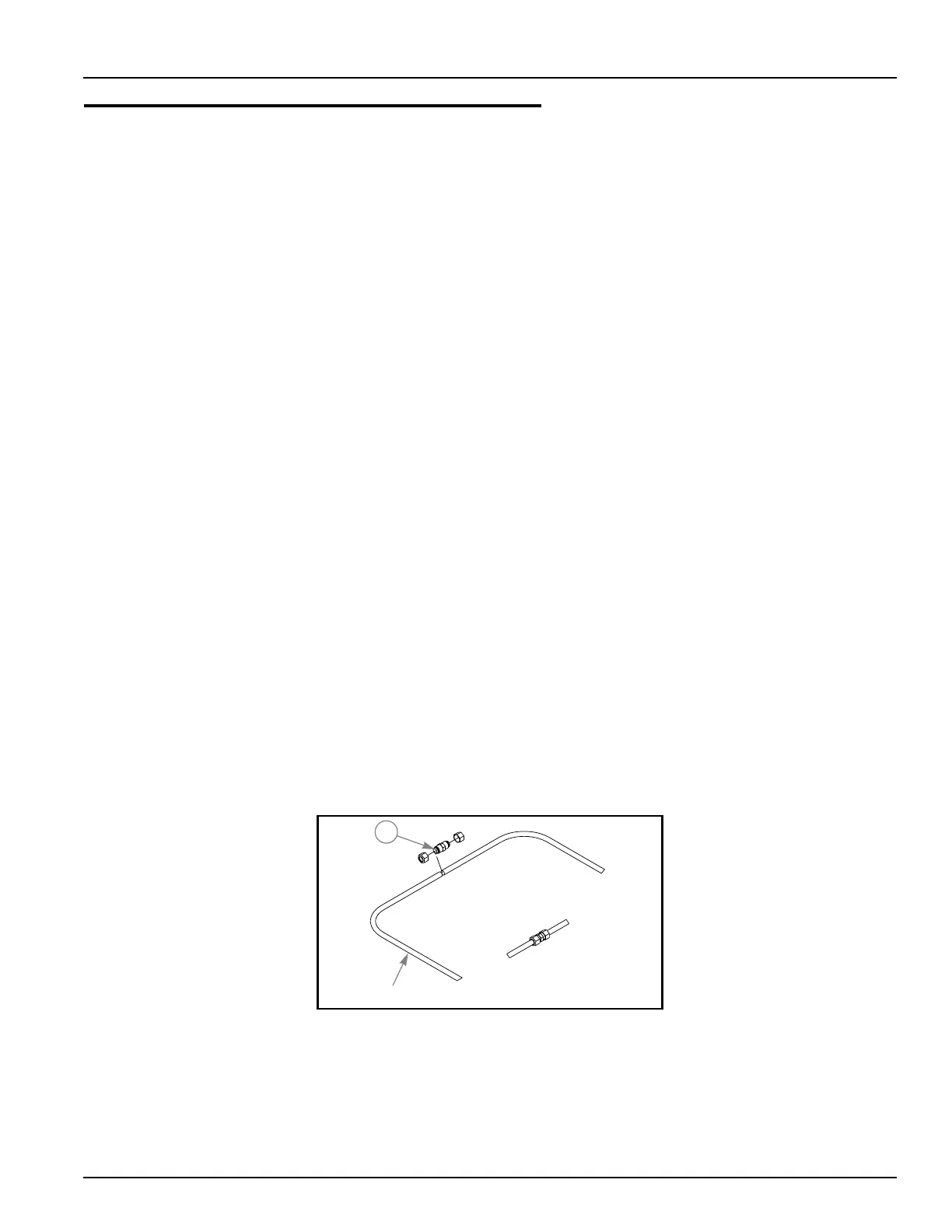

FIG. 1
BAG STEEL ROD
35
To Next Page
