HUSTLER X-ONE - Page 11

114565_0112 3-3

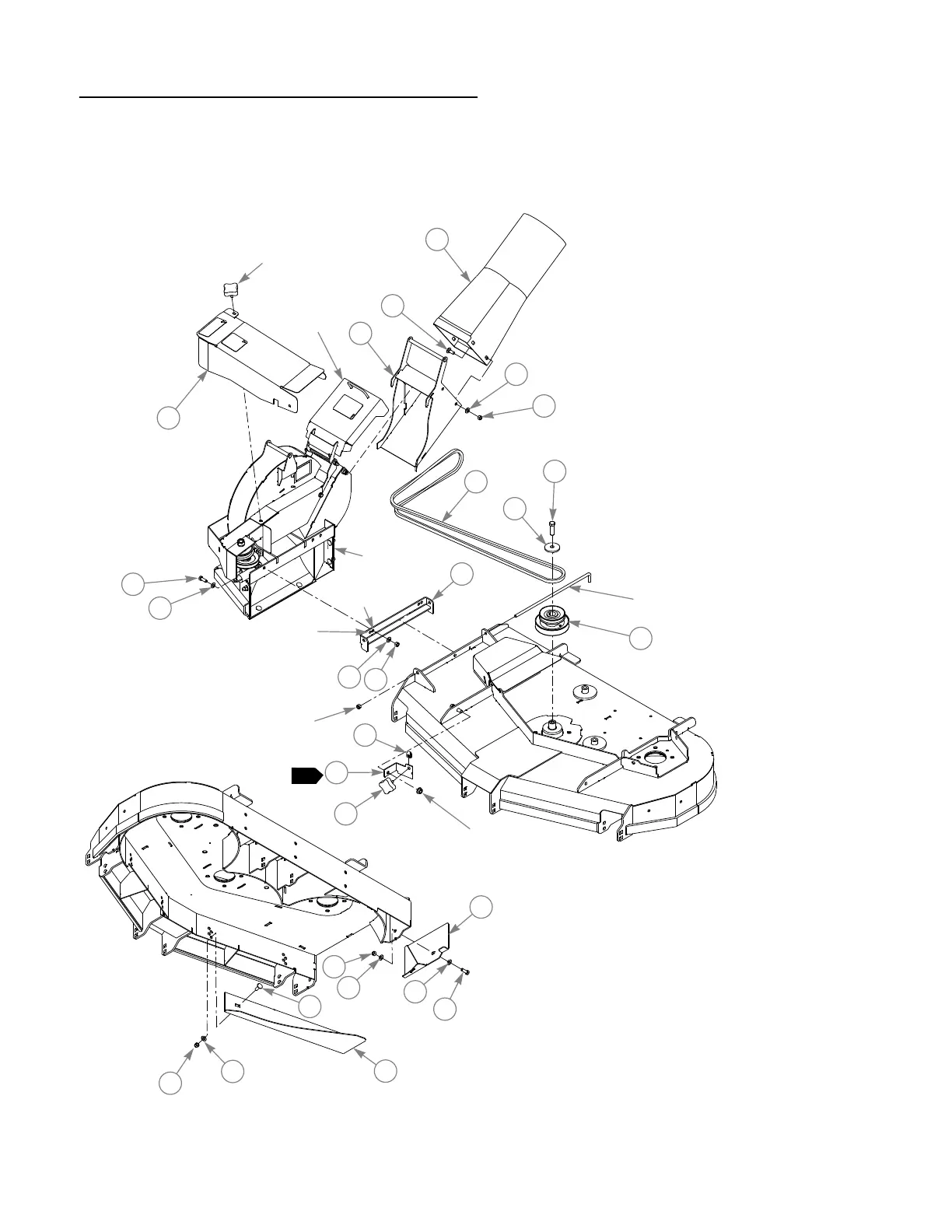

Figure 3-1
INDEX
NO.
PART
NO.
DESCRIPTION
1 603213 BLOWER OUTLET TUBE
2 114066 OUTLET ADAPTER
3 025395 CB .375-16 X 1.00 G5 ZNY
4 767954 FW .406 X .812 X .060 SAE
5 054502 NT .375-16 HX GRD 5 ZNY
6 036244 CS .375-16 X 1.000 HX G5
7 114194 BLOWER MOUNT
8 551034
551035
BLOWER BELT COVER, 48"
BLOWER BELT COVER, 54"
9 603318
603319
BELT, A 97.0" EL, 48”
BELT, A 103.0” EL, 54”
10 017616 CS .500-13 X 1.750 HX G5
11 752386 CW .515 X 2.25 X .204 BLK
12 603309
603310
DOUBLE PULLEY, 48"
DOUBLE PULLEY, 54”
13 114388
114389
BELT COVER BRACKET, 48"
BELT COVER BRACKET, 54”
14 601069 CN .312-18 X .200 MAX THK
15 792002 KNOB 5/16-18 X 3/4"
16 114068
114071
BLOWER BAFFLE, 48"
BLOWER BAFFLE, 54”
17 114359
114360
RH BLOWOUT BAFFLE, 48"
RH BLOWOUT BAFFLE, 54”
18 086660 NT .375-16 HXZY NL
2
1
3
4
4
4
4
4
4
5
5
5
6
6
7
9
10
11
12
13
14
15
17
3
18
8
16
Existing
hardware
Existing
hardware
Existing
hardware
Blower
assembly
113900 (48”) & 113901 (54”) Adapter Assembly
Existing
hardware
48”
mount
hole
54”
mount
hole
Discharge
cover
Install in lower set of holes
1
NOTES:
1. Bracket shown for 48” deck. 54” deck
bracket formed opposite.
