HUSTLER X-ONE - Page 15

114565_0112 3-7

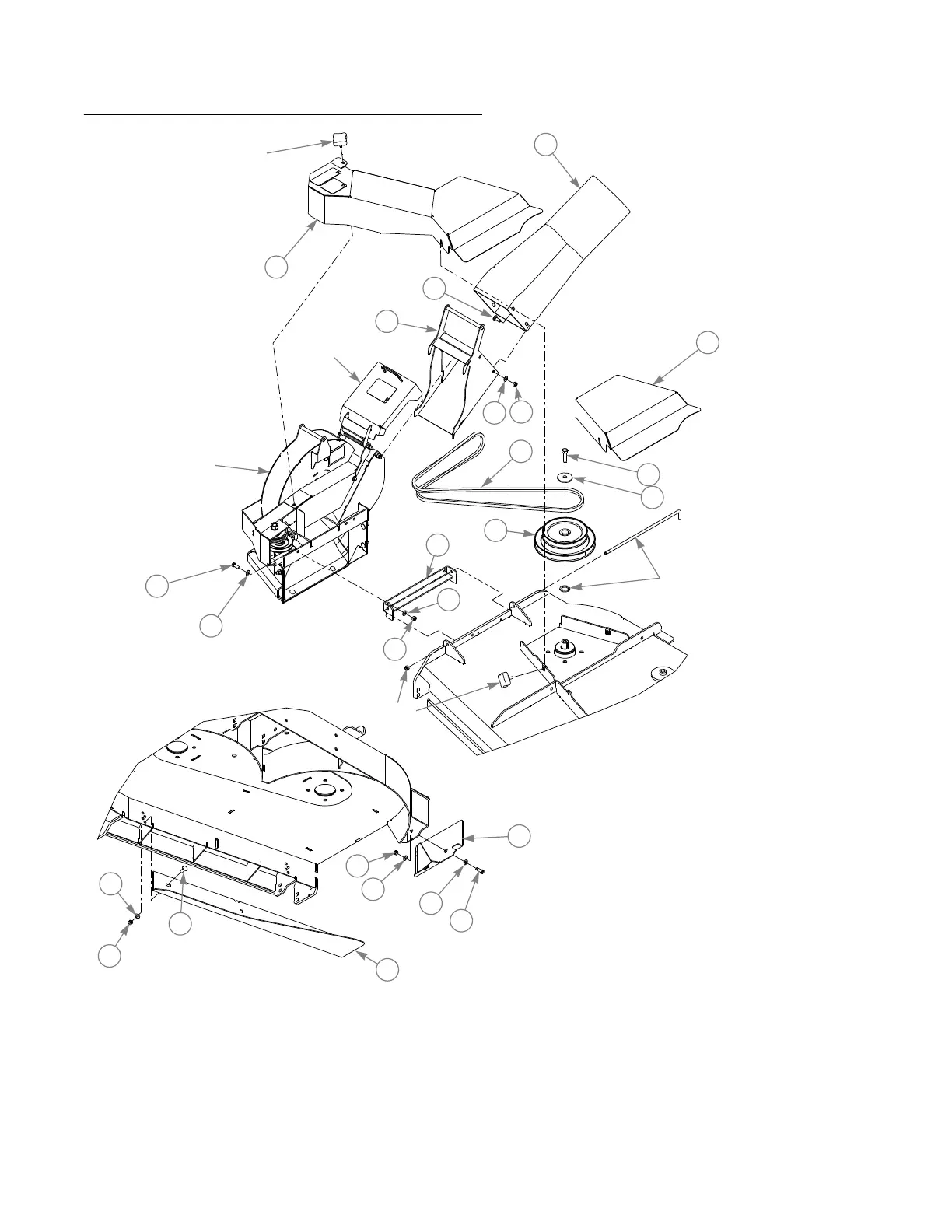

Figure 3-5
2
1
3
4
4
4
4
4
4
5
5
5
6
6
7
9
10
11
12
13
14
16
8
INDEX
NO.
PART
NO.
DESCRIPTION
1 603324 BLOWER OUTLET TUBE
2 114066 OUTLET ADAPTER
3 025395 CB .375-16 X 1.00 G5 ZNY
4 767954 FW .406 X .812 X .060 SAE
5 054502 NT .375-16 HX GRD 5 ZNY
6 036244 CS .375-16 X 1.000 HX G5
7 113118 BLOWER MOUNT
8 551038 BLOWER BELT COVER
9 602998 BELT, A 89.0" EL
10 017616 CS .500-13 X 1.750 HX G5
11 752386 CW .515 X 2.25 X .204 BLK
12 603313 DOUBLE PULLEY
13 114350 DOUBLE PULLEY COVER
14 114077 BLOWER BAFFLE
15 114363 RH BLOWOUT BAFFLE
16 086660 NT .375-16 HXZY NL
15
113905 (72”) Adapter Assembly
3
Existing
hardware
Blower
assembly
Existing
hardware
Existing
hardware
Discharge
cover
Install in lower set of holes
