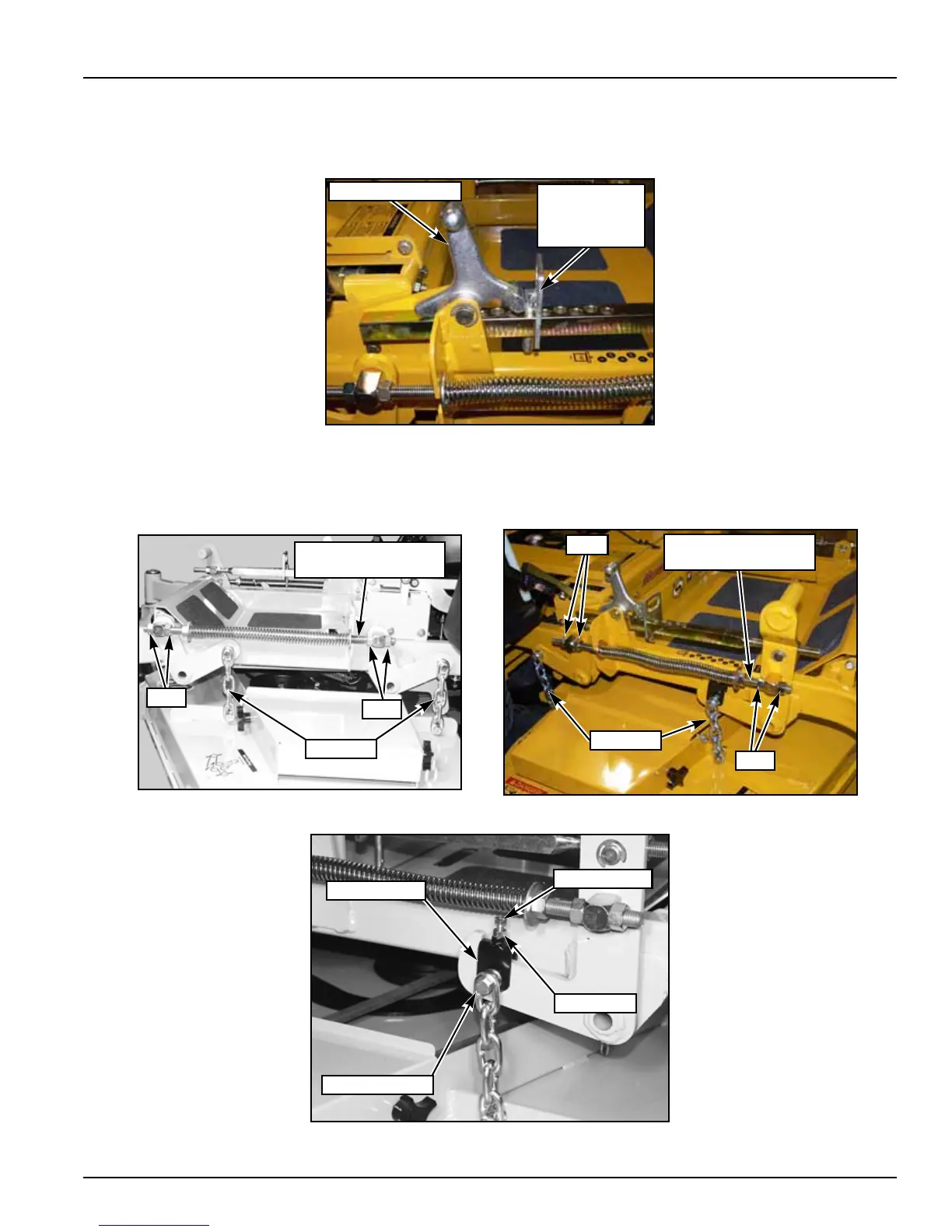

4. Set cutting height at 3-1/2" in the height indicator by placing the height adjusting stop
in the 3-1/2" hole, and turning the height stop so that the pin side is against the stop
handle FIG. 32
5. Clamp the height adjusting stop against the stop handle FIG. 32. This will assure that
the height will not move during the setting process. Otherwise, spring pressure from
the deck lift springs will tend to pull the stop away from the handle.
6. Loosen all nuts on the deck lift threaded rods, and the hardware on the adjuster (on
the right front), until all the deck lift chains are loose, and the deck is sitting tightly on
all four blocks FIG. 33, FIG. 34, FIG. 35.
FIG. 32
FIG. 33 FIG. 34
FIG. 35
STOP HANDLE
HEIGHT
ADJUSTING
STOP
CHAINS
NUT
NUT
DECK LIFT
THREADED ROD
DECK LIFT
THREADED ROD
NUT
NUT
CHAINS
ADJUSTER
HARDWARE
JAM NUT
5/16" BOLT
