A B
C
D E
F G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
Y
Z
a
d
c
b
PART DESCRIPTION PART #
A 1/4” Male Quick Connect AH102B
B Strainer Body NA0802
C Strainer NA0803
D Strainer Adapter NA0804
E Insulated Handle NA0806A
F Backup Washer NA0807
G Water Nozzle with O-Ring NA0808
H Injector Valve Complete NA0809A
I Viton O-Ring NA0837
J Check Valve Spring NA0810
K Formed Bottle Cap NA0812
L Cap Liner NA0838
M Steel Ball NA0811
N Spacer NA0813
O Viton O-Ring NA0814
P Suction Nut NA0815
Q Metering Tip NA0816
R Clamp HF Draw Tube NA0818
S Tubing NA0817
T 1/4” x 1/8” Hose Barb NA0839
U Acorn Strainer NA0840
V
Retainer Side Cap AS69A
W
Cap Sideport AS68L
X 5 Quart Container AS70
Y Hose Assembly (HP) NA0828
Z 1/4” Female Flow Thru BR337
a Veejet Brass 1/4” Female B280
b 18” Extension NA0833
c 1/4” Male Flow Thru BR335
d Spray Gun 100010
e Velcro Strap NA0836

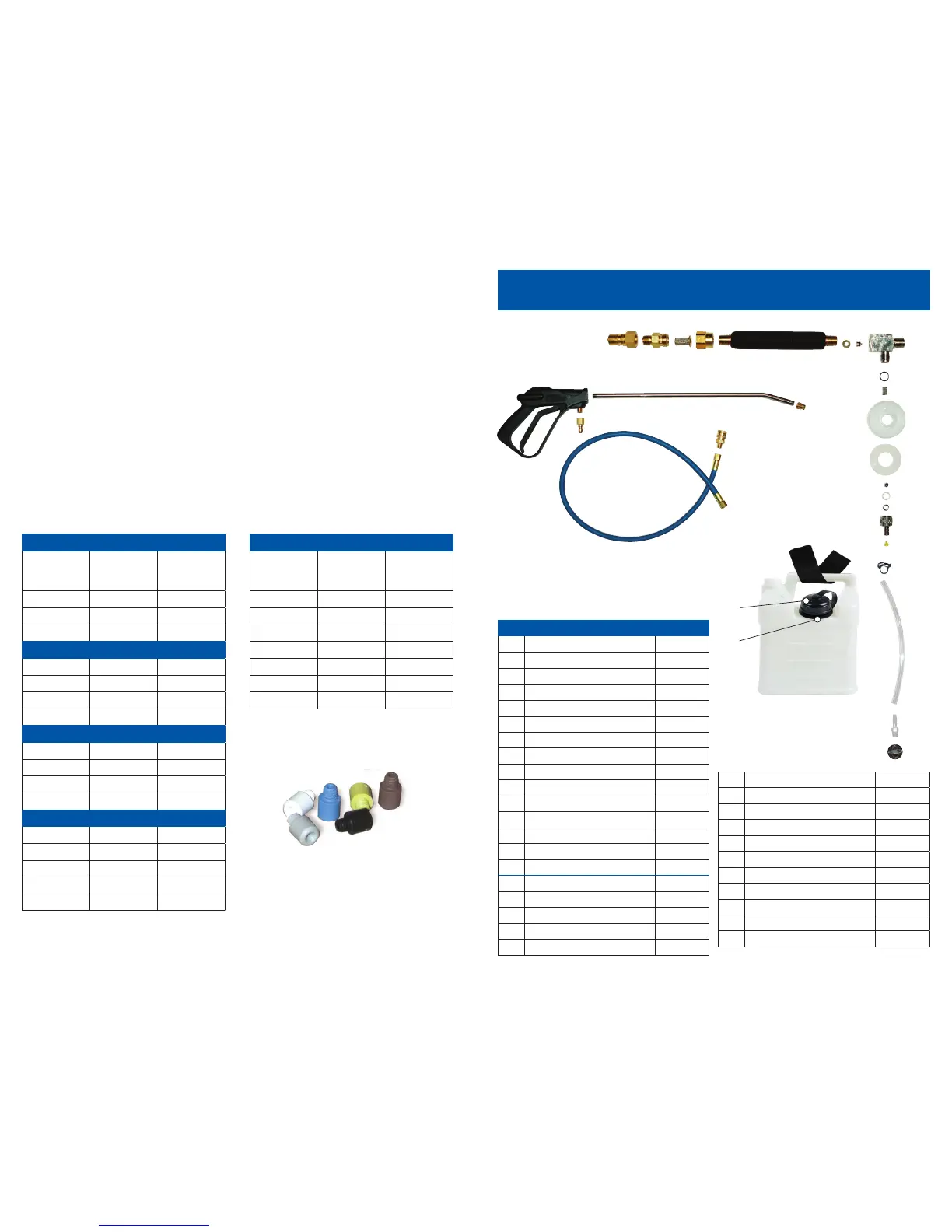

PARTS BREAKDOWN & PARTS LIST
METERING INSTRUCTIONS
Your solution hose pressure affects how much chemical is drawn from the Hydro-Force injection
sprayer. Higher pressures decrease the ratio of chemical to water and lower pressures increase the
ratio of chemical to water. To ensure your dilution ratios are accurate, use the chart below to deter-
mine what metering tip to use at your specified pressure. Your injection ratio may also change
depending on the viscosity (thickness) of your concentrate chemical. The 1 to 8 ratio is based upon
chemicals with a viscosity similar to water. The injection ratio can also be slightly affected by your
main flow water temperature. This generally only changes the dilution ratio slightly, however.
To change metering tips and dilution ratios, remove the clear tube at the bottom of the injection
valve and remove the metering tip by turning counterclockwise. Insert the new tip and replace the
tubing. Be sure that the screen filter is present at the end of the tubing.
Read the dilution instructions on the label of your chemical, then add the chemical full strength to
your Hydro-Force container. Your chemical will then be diluted automatically at the ratio specified in
the charts below based on your PSI and metering tip.
If the recommended dilution ratio does not match exactly to a Hydro-Force metering tip, choose the
tip that is closest and slightly adjust your rate of application by moving the sprayer faster or slower.
WHEN USED AT 50 PSI
Oz. of Solu-
tion per Gal-
lon of Water
1 Part Solu-
tion to () Parts
Water
Hydro-Force
Metering Tip
32 4 Blue
21 6 White
16 8 Brown
WHEN USED AT 100 PSI
32 4 Yellow
26 5 Blue
21 6 White
16 8 Brown
WHEN USED AT 150 PSI
32 4 Yellow
21 6 Blue
16 8 White
11 12 Brown
WHEN USED AT 200 PSI
32 4 Black
26 5 Yellow
21 6 Blue
16 8 White
9 14 Brown
WHEN USED AT 400 PSI
Oz. of Solu-
tion per Gal-
lon of Water
1 Part Solu-
tion to () Parts
Water
Hydro-Force
Metering Tip
32 4 No Tip
26 5 Grey
21 6 Black
16 8 Yellow
13 10 Blue
8 16 White
4 32 Brown
Metering Tips
Part #NA0816A
X
e
V
W
5 qt. container with caps.
AS70
