Hydro-Force SX-12 - Using the SX-12; Set-up Procedure

3
USING THE SX-12
Set-up Procedure

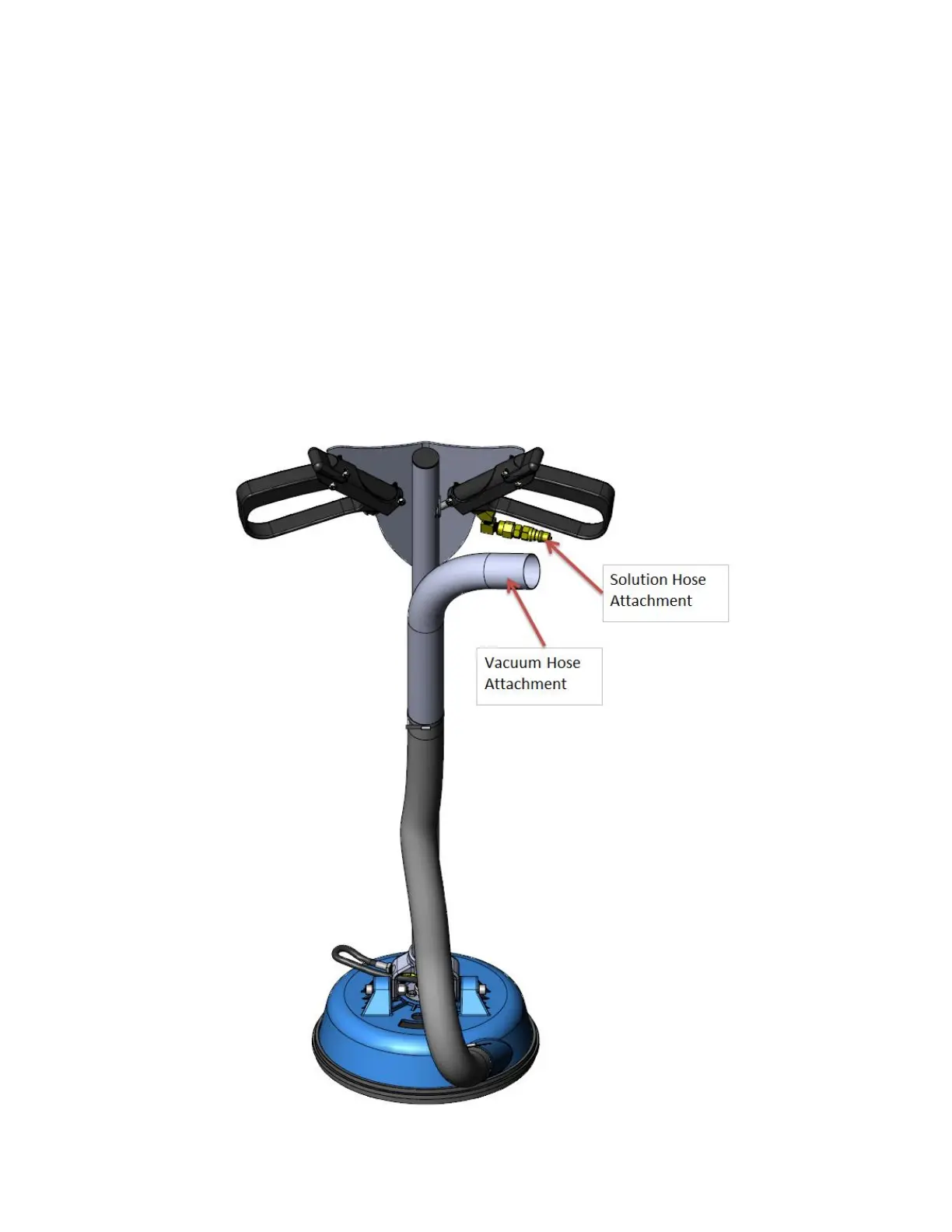

1. Connect the vacuum hose from your extractor to the vacuum pipe on the SX-12 handle.
2” vacuum hose and cuff is recommended.
2. Connect the solution hose from the extractor to the quick connect on the SX-12 valve
assembly.
3. Turn the extractor ON. Adjust the water pressure to the desired setting. Recommended
Pressure: 700 – 1500 psi. Maximum water temperature for the SX-12 is 200º F
4. Adjust the Vacuum Relief Slide for best recovery & ease of movement.
