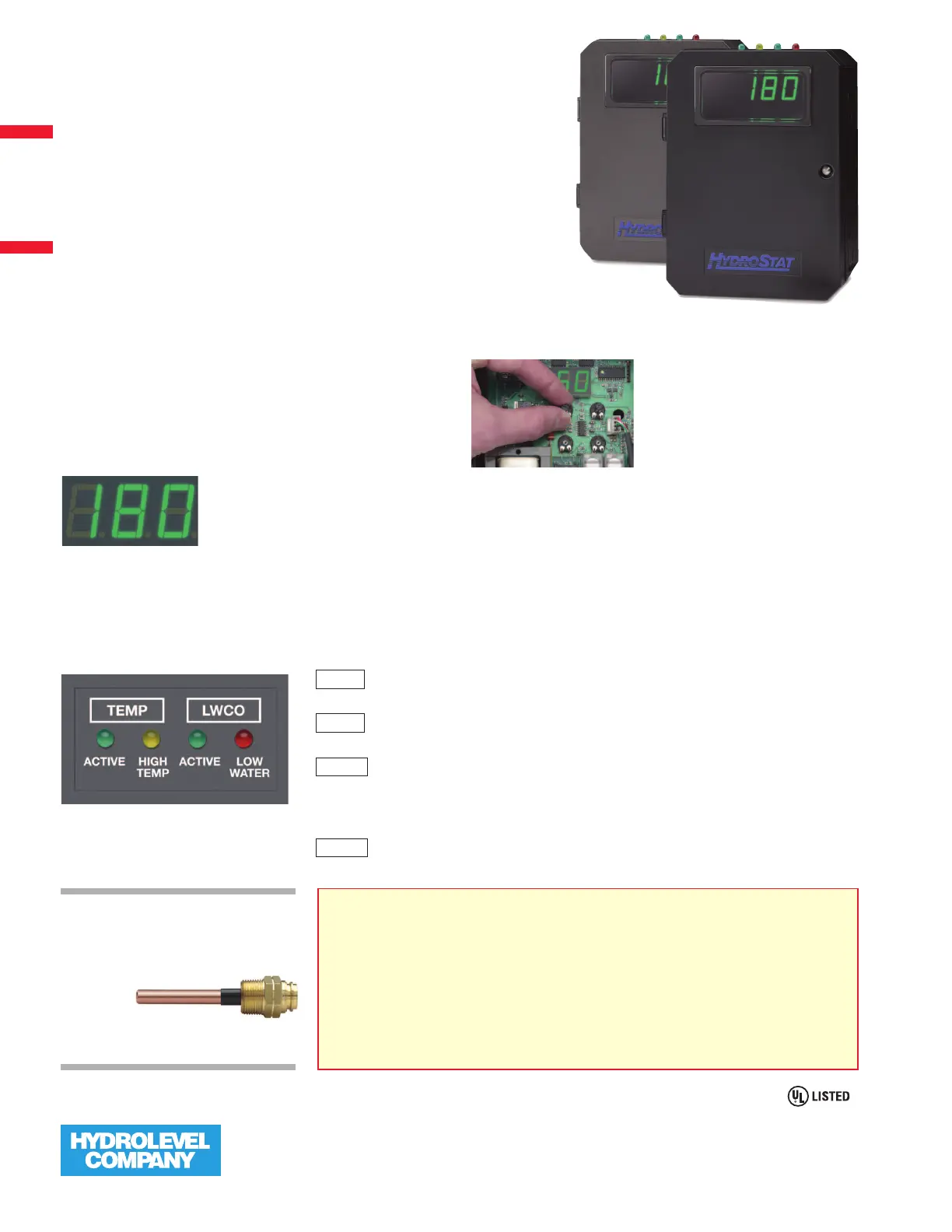

HydroStat
®
can be used in two ways.
By installing the control on an existing immersion well,
HydroStat
®
can be used as a universal replacement for
common Aquastat
®
models. Whether it’s a cold start or
a tankless coil boiler, Hydrostat
®
will provide all the
temperature functions of the control being replaced.
Or, install HydroStat
®
on a Hydrolevel Electro-Well
™
(sold separately) to automatically activate the low water
cut-off function. With HydroStat
®
you can add low water cut-off
protection to new or existing installations without the added time and
cost to install a separate control.
䡵
Dial-Type Settings
Allows for quick and easy limit and differential settings.
䡵
Dynamic Temperature Display
This 3-digit LED display continually indicates boiler temperature. Whenever the high limit,
low limit or differential temperature dials are turned, the LED instantly changes to display
the setting temperature. For a quick reference, the LED will scroll through the current
temperature and differential settings each time the HydroStat
®
control is powered up.
䡵
Easy to Wire
HydroStat
®
uses the same terminal designations as common Aquastat
®
models. This makes field replacement
fast and easy.
䡵
Four On-Board Diagnostic Indicating Lights
•
TEMP ACTIVE – Indicates HydroStat
®
is powered and the temperature
function is active.
•
TEMP HIGH TEMP – Illuminates any time the boiler is off on high
temperature limit.
•
LWCO ACTIVE – Only illuminates when the HydroStat
®
is providing Low
Water Cut-Off functionality. This function is activated by installing the
control on a Hydrolevel Electro-Well
™
. This LED will not illuminate when
installed on a standard immersion well.
•
LWCO LOW WATER – Indicates a low water condition in the boiler.
83 WATER STREET • NEW HAVEN, CONNECTICUT 06511
(203) 776-0473 • FAX (203) 773-1019 • TOLL FREE 800-654-0768 www.hydrolevel.com
Specifications
Model 3100 Model 3150
Input voltage 120 VAC, 60 HZ 120 VAC, 60 HZ
Burner contacts 30 VA@24 VAC 7.4 FLA, 44.4 LRA@120 VAC
Circulator contacts 5.8 FLA, 34.8 LRA@120 VAC 5.8 FLA, 34.8 LRA@120 VAC
Operating range – low limit Off or 110°F - 200°F Off or 110°F - 200°F
Operating range – high limit 100°F - 220°F 100°F - 220°F
Operating range – differential 10°F - 30°F 10°F - 30°F
Electro-Well
™
To enable HydroStat’s
®
low water
cut-off function, Electro-Wells
™
are available in four sizes
to replace
standard immersion wells.
Remote mounting kits are also
available.
