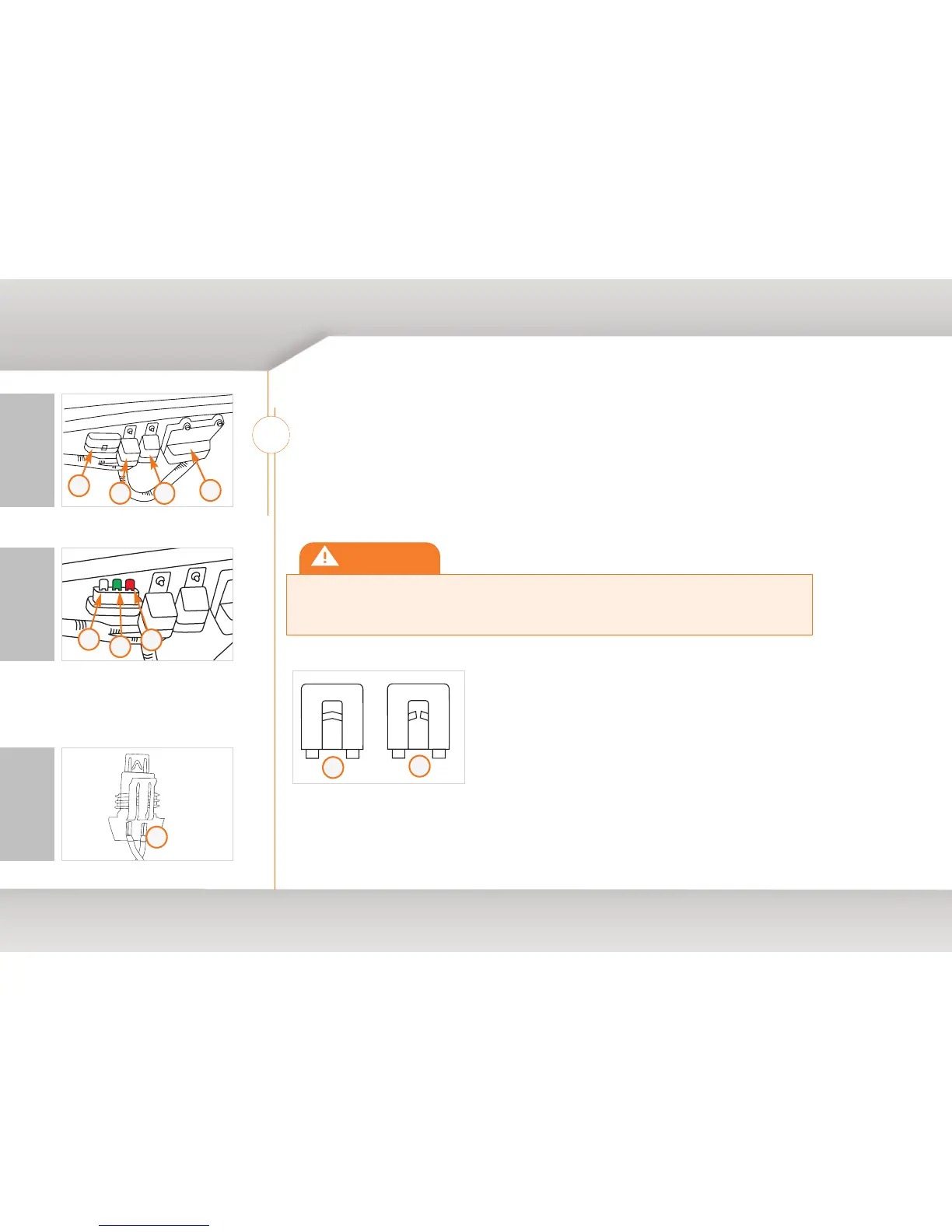

The fuse box is in the engine compartment. There are more fuses. If a fuse burns
through during operation, check the electrical system to find the cause. Then,
replace the fuse with one that has the corresponding Amperes.
98
WARNING
Do not replace fuses by substitutes. Replace fuses only with a new fuse
with the correct capacity.
A. Fuses C. Gasoline pump relay
B. Main relay D. Controller
A. Fuse 1: Gasoline pump 14 A
B. Fuse 2: Engine system ignition, injection,
valves 30 A
C. Fuse 3: Supply controller over
Left-Hand control 7,5 A
ill. 1
ill. 2
B
B
C
C
D
A
A
A. Normal
B. Burned through
A
B
D. Generator fuse at the cable harness, 30 AiLL. 3
D
6.1 Fuses
