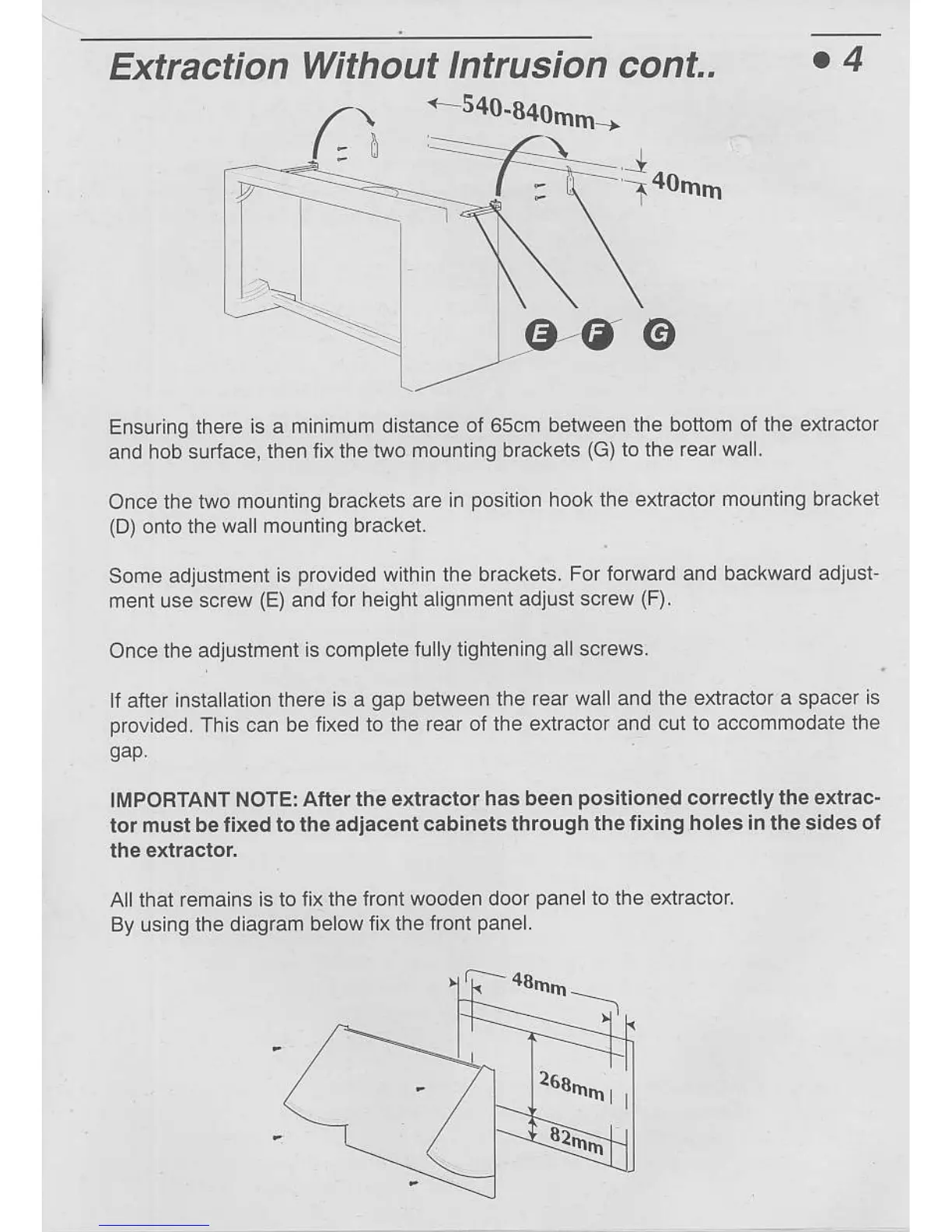

Extraction
Without lntrusion cont..
c4
Ensuring there
is a minimum
distance of 65cm between
the bottom of the exlracior
and hob
surface, then tix the
two mounting brackets
(G)
to the reaf wall.
Once the two
mounting brackets are
in
position
hook the
extractor mounting bracket
tDl
orro
rFe
wall
'nounling
bracket.
Some
adjustmenl is
provided
within the brackets.
For forwald and backward
adjusf
ment
use screw
(E)
and
for heighi alignment adjust
screw
{F).
Once the
adjustment is compleie
fu ly tightening all screws.
if after installation
there is a
gap
between the rear wall and
ihe e)dractor a spaceT
is
provided.
This
can be fixed to the
rear of the extractoT and cut
to accommodate the
gap.
IIIPORTANT NOTE:
After the extractor
has been
Positioned
correctlythe
extrac'
tor
must be fixed tothe
adiacenl cabin ets th
rough the fixing holes in the sides oI
the
extraclor.
All that remains is to tix
the tront wooden door
panel
to the extractoL
By using the diagram
below fix the front
panel.
268rhlh
I
