4
F99U005987
MS-4
M3x6
7x
MS-3
M3x6
9x
MS-2
M3x6
2x
MS-1
2.9X9.5
2x

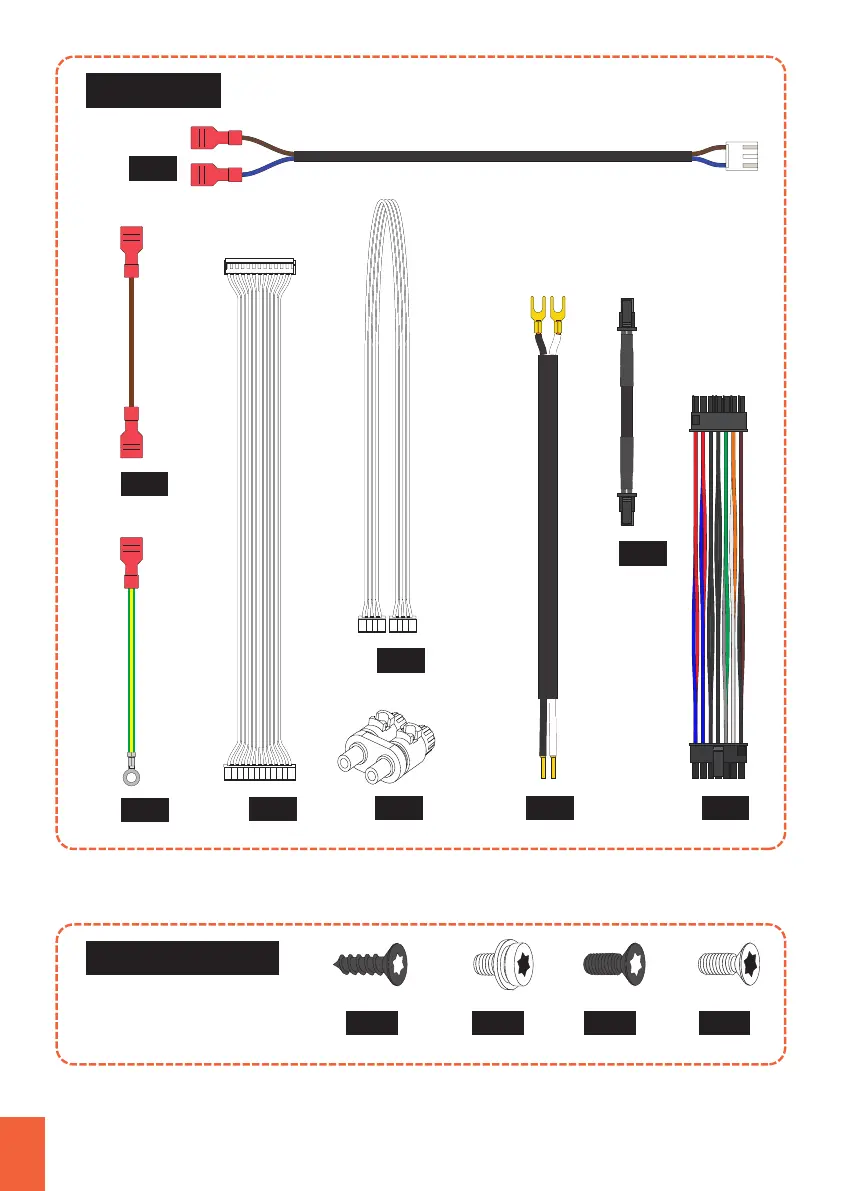

Mounting set
K02U005993
CB-9
1x
Z14A15L1
1
14
CB-8
1x
Z4B10L1
CB-7
1x
Z2B21L1
CB-6
1x
K03U001032
CB-5
1x
Z4C38L1
CB-4
1x
Z12C23L1
CB-3
1x
Z1A11L1
CB-2
1x
Z1A10L4
CB-1
1x
Z2B25L1
Cable set
5
FunctionPosition Remarks
Open
1 - 2
2 - 3
Low gain
Mid gain
High gain
11.8 dB
21.8 dB
27.8 dB
Overall gain is set to 11.8dB (3.9x)
Overall gain is set to 21.8dB (12.3x)
Overall gain is set to 27.8dB (24.5x)
LOW GAIN
MID GAIN
HIGH GAIN
Input Gain Jumper
The Amplifier Module contains a pinheader (J200) with jumper to alter the input gain setting:
This simple 3.5mm mini-jack connection allows you
to create a simple network between all of your
DIYclassD amplifiers for a more seamless power up
and standby experience. When connected, it will
control the power of all other products in the system.
When you turn on the preamplifier, the rest of the
system will turn on automatically.
all new DIYclassD amplifier kits.
12V Trigger
feature that comes equipped on
The 12 Volt Trigger is a powerful
The front switch can be used to turn-
on and turn-off (standby) the power
amplifier when the 12 Volt trigger
option is not used (when used, the
12V trigger overrules the front
switch).
Front Switch
Adjust the brightness of the front indicator light:
LED Switch
FULL
OFF
HALF
User Instructions
Not included in the kit
Included in the kit
Full Hypex DIY case
Switch Mode Power Supply
®
Nilai Amplifier
Full internal cable harness
All required connectors
This assembly instruction
All required mounting materials
This assembly instruction covers the general
assembly instructions for this specific model. For
detailed technical information about the used
modules please refer to the datasheet on our website.
1x TX-10 / TX-20 / 1.5 and 2.5mm hex key
Interconnects
Loudspeaker cables
Power cable
Tools as described on page 2
®
Thank you for purchasing the Nilai 500DIY Amplifier
®
kit, powered by our Nilai technology.
PS500DIY (1x)
This mono kit can be a power amp for your passive
loudspeakers. We offer two kind of kits:
®
Nilai 500DIY Mono kit 1x500W
Please note the different models. This assembly
instruction describes how to assemble one of these
models. The mono and stereo kit only offer balanced
inputs. If your source only offers unbalanced outputs
you can use one of our interconnects to connect them
properly.
Please read the safety instructions on the next page
before assembling, installing and/or operating the
®
Nilai mono kit.
®
Nilai 500DIY (1x)
®
Nilai 500DIY Stereo kit 2x250W
®
The Nilai amplifier and the Switch Mode Power Supply
used in this kit are:
®
Nilai 500 DIY Amplifier kit, a brief introduction
