Hypnocube 4Cube Instructions v 6.5, December 2013
- 11 -
Step 8: Large(r) capacitors
Lastly, there are two capacitors that sit the highest.
One is the blue 0.47uF capacitor. It goes in C10, next to the bottom
PIC. It is not orientation sensitive.
The second is the 10uF electrolytic capacitor. Electrolytic capacitors
are orientation dependent - you will see a + symbol on the PCB for the
positive wire, which is the longer of the capacitor leads. The negative
lead is also marked on the body of the capacitor.
The 10uF capacitor goes in C3.

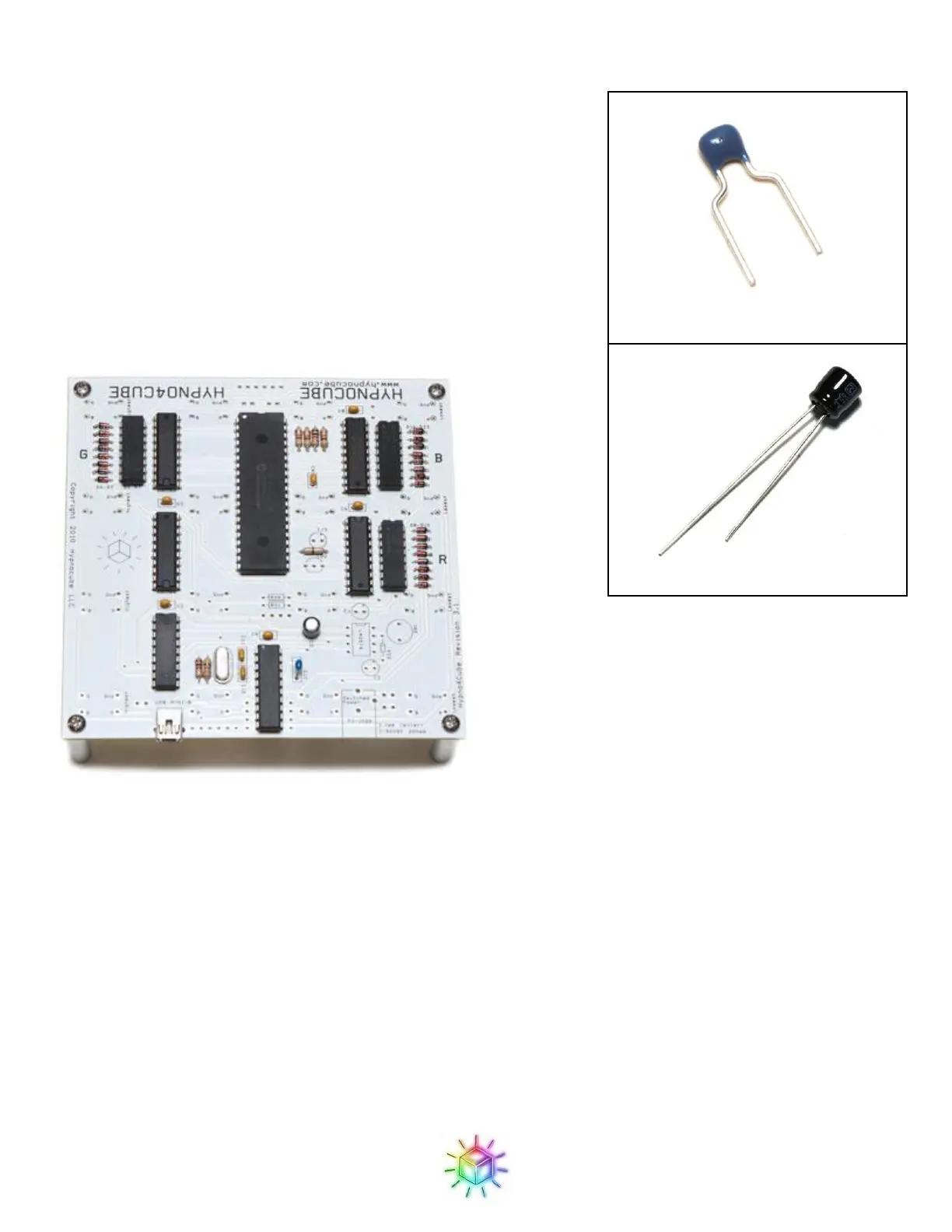

Figure 26: All PCB components in place.
Figure 25: 10uF electrolytic capacitor
Figure 23: 0.47uF capacitor
Figure 24: 10uF electrolytic capacitor.
