19. Disassembly and Assembly

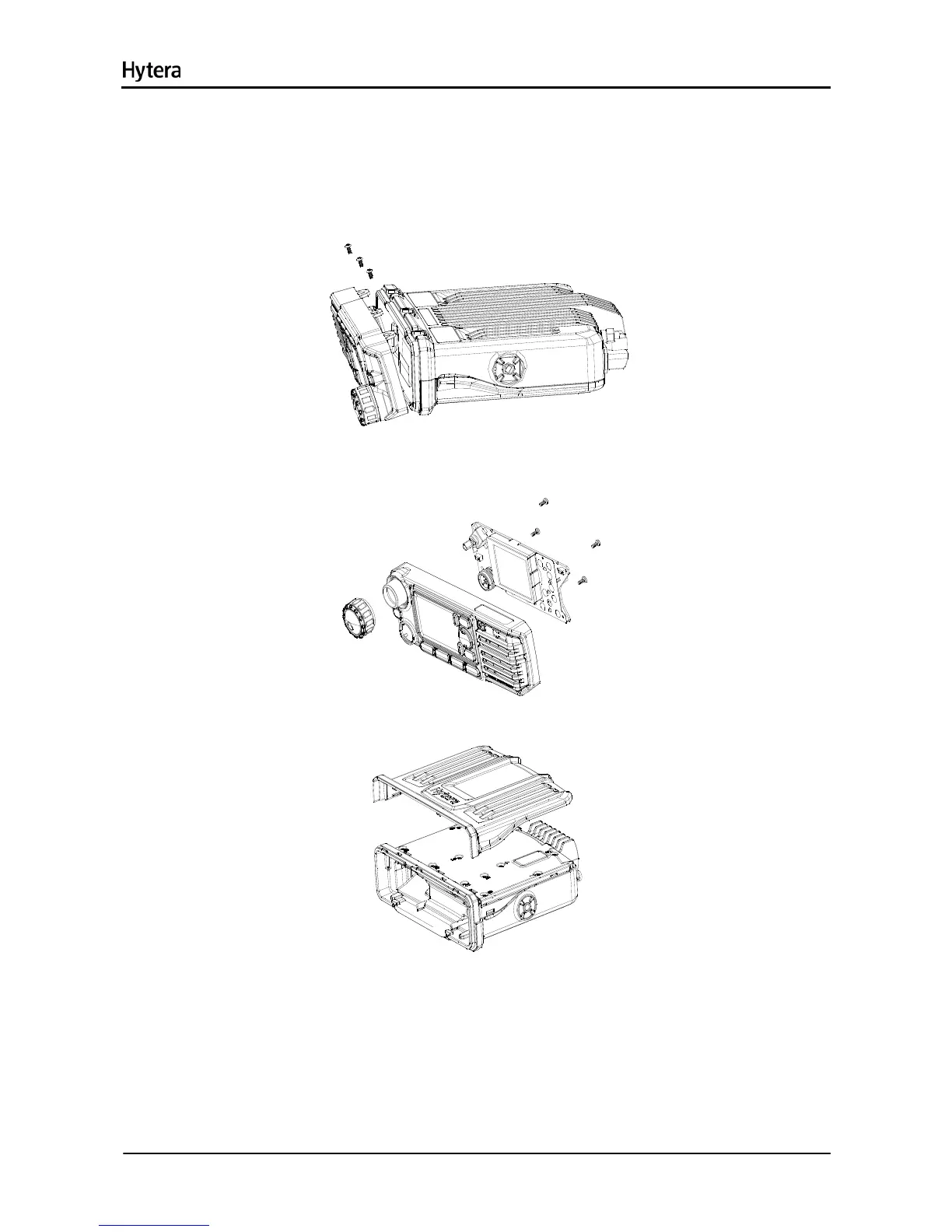

Disassembly
1. Turn off the radio and remove the power cord and antenna.
2. Loosen the three screws to remove the front panel. Then remove the FFC.
3. Detach the volume control knob and loosen the four screws. Then remove the PCB from the control
panel.
4. Undo the clips on both sides of the radio, and then remove the rear cover.
5. Loosen the eleven screws to remove the upper shield cover.
