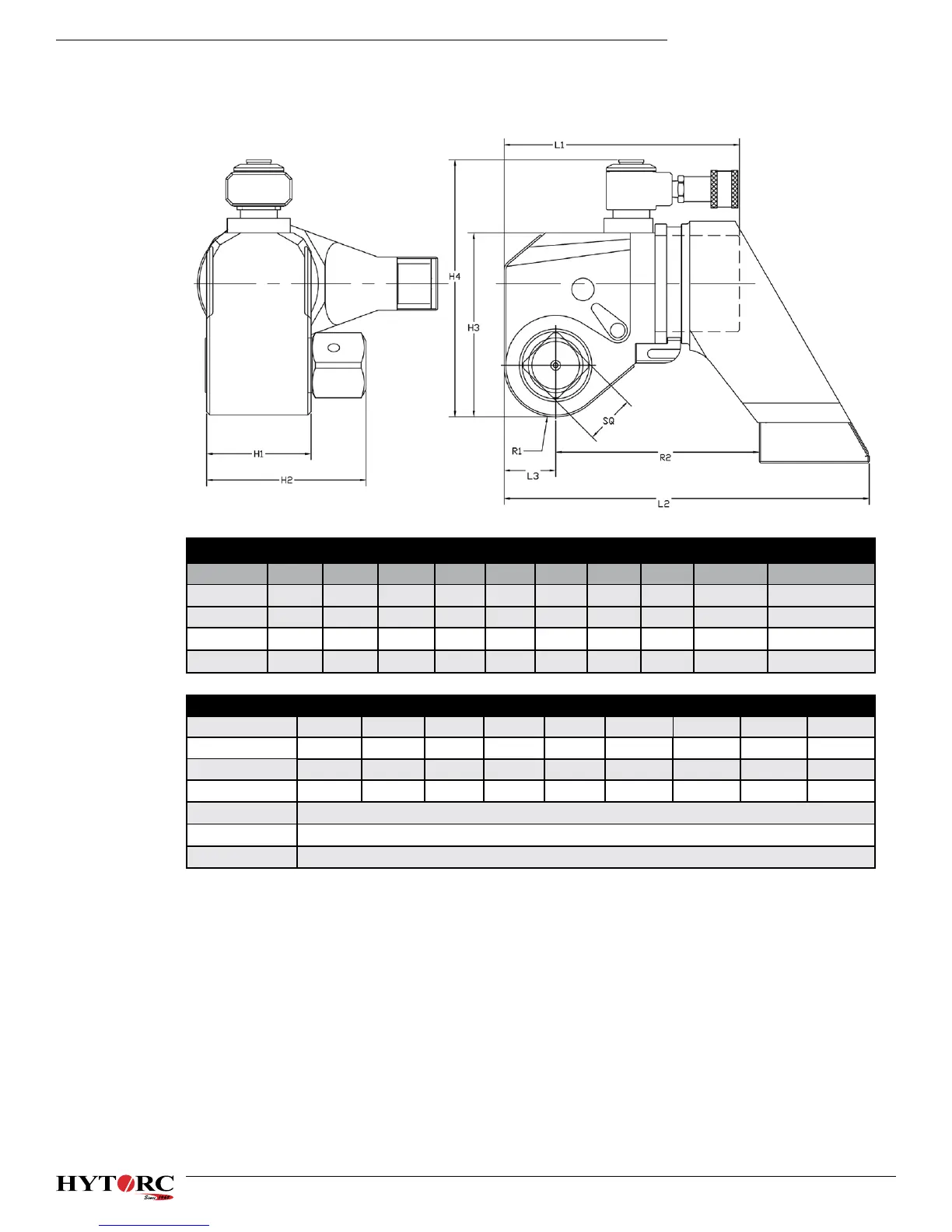

XLT Dimensional Data - Metric
12
(continued...)
XLT dimensional data - Metric
Inches Lbs. Ft. Lbs.
L1 L2 H1 H2 H3 H4 R1 R2 Weight* Max Torque
HY-.5XLT 76.20 124.71 33.53 47.75 76.20 107.95 16.51 65.28 0.84 538
HY-8XLT 195.58 319.28 90.68 129.29 165.10 215.90 44.70 176.78 11.34 10,846
HY-25XLT 299.72 470.41 133.35 189.99 243.84 292.10 66.04 260.35 31 . 14 35,102
HY-50XLT 393.70 583.95 166.88 237. 74 279.40 325.12 82.55 325.63 56.36 71,180
HY-.5XLT HY-1XLT HY-3XLT HY-5XLT HY-5XLT HY-10XLT HY-20XLT HY-25XLT HY-50XLT
Square Drive ½” ¾” 1” 1-½” 1-½” 1-½” 2-½” 2-½” 2-½”
Min. Torque (ft.lbs.) 81 273 657 1, 137 1,627 2,379 4,019 5,265 10,677
Max. Torque (ft.lbs.) 538 1, 817 4,379 7,579 10,846 15,617 26,791 35,102 71,180
Accuracy ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3%
Swivel 360º x 180º STANDARD
Uni-Body Housing TITAL399
Click-On Reaction Arm
TITAL300, Vertical, 360°, Tension absorbing
*The weight listed is for the complete ready-to-use HYTORC tool with reaction arm.
