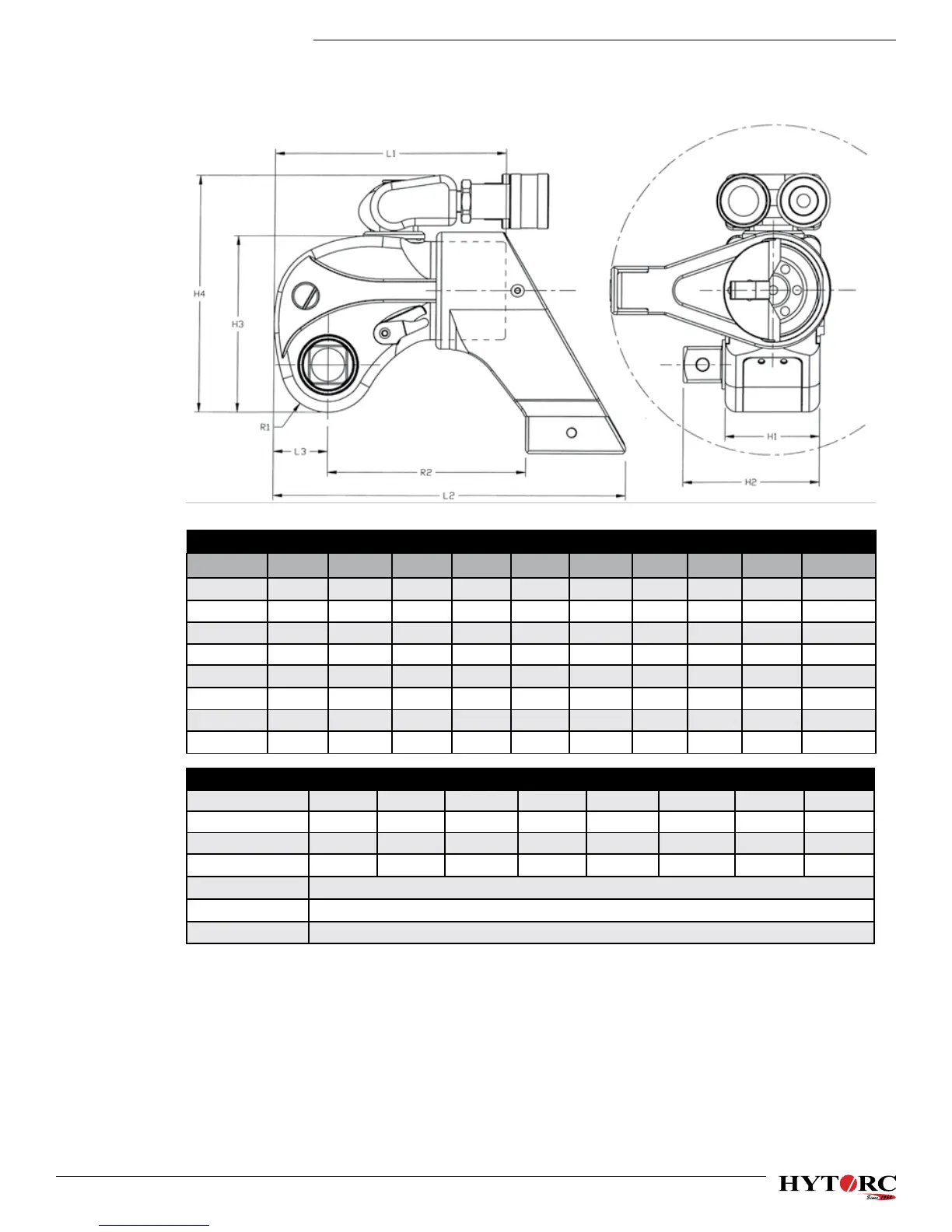

MXT dimensional data - Imperial13
*The weight listed is for the complete ready-to-use HYTORC tool with reaction arm.
Inches Lbs.
L1 L2 L3 H1 H2 H3 H4 R1 R2 Weight*
MXT-.7 3.96 5.98 0.93 1.62 2.53 3.00 4.25 0.81 3.32 2.7
MXT-1 4.88 7.33 1. 13 1.97 2.85 3.66 4.9 0.98 4.12 3.95
MXT-3 6.34 9.6 1. 51 2.63 3.81 4.88 6.12 1. 31 5.32 8.3
MXT-5 7. 61 11.52 1. 81 3.16 4.92 5.85 7.22 1.57 6.4 14.2
MXT-10 9.51 14.38 2.26 3.95 5.62 7. 32 8.80 1.96 7.97 24.8
MXT-15 10.55 15.29 2.51 4.38 7.0 8.06 9.67 2.18 8.63 36
MXT-20 11 . 41 17.27 2.71 4.73 7. 1 8.78 10.24 2.36 9.58 43.4
MXT-35 14.03 21. 2 3 3.33 5.82 8.32 10.79 12.36 2.90 11 . 74 77.45
MXT-.7 MXT-1 MXT-3 MXT-5 MXT-10 MXT-15 MXT-20 MXT-35
Square Drive ¾” ¾” 1” 1-½” 1-½” 2-½” 2-½” 2-½”
Min. Torque (ft.lbs.) 123 201 484 838 1,728 2,388 2,964 5,564
Max. Torque (ft.lbs.) 822 1,340 3,230 5,589 11 , 51 9 15,920 19,757 37,095
Accuracy ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3% ± 3%
Swivel 360º x 180º STANDARD
Uni-Body Housing TITAL399
Click-On Reaction Arm TITAL300, Vertical, 360°, Tension absorbing
