Hyundai HYM120Li510 User Manual

16

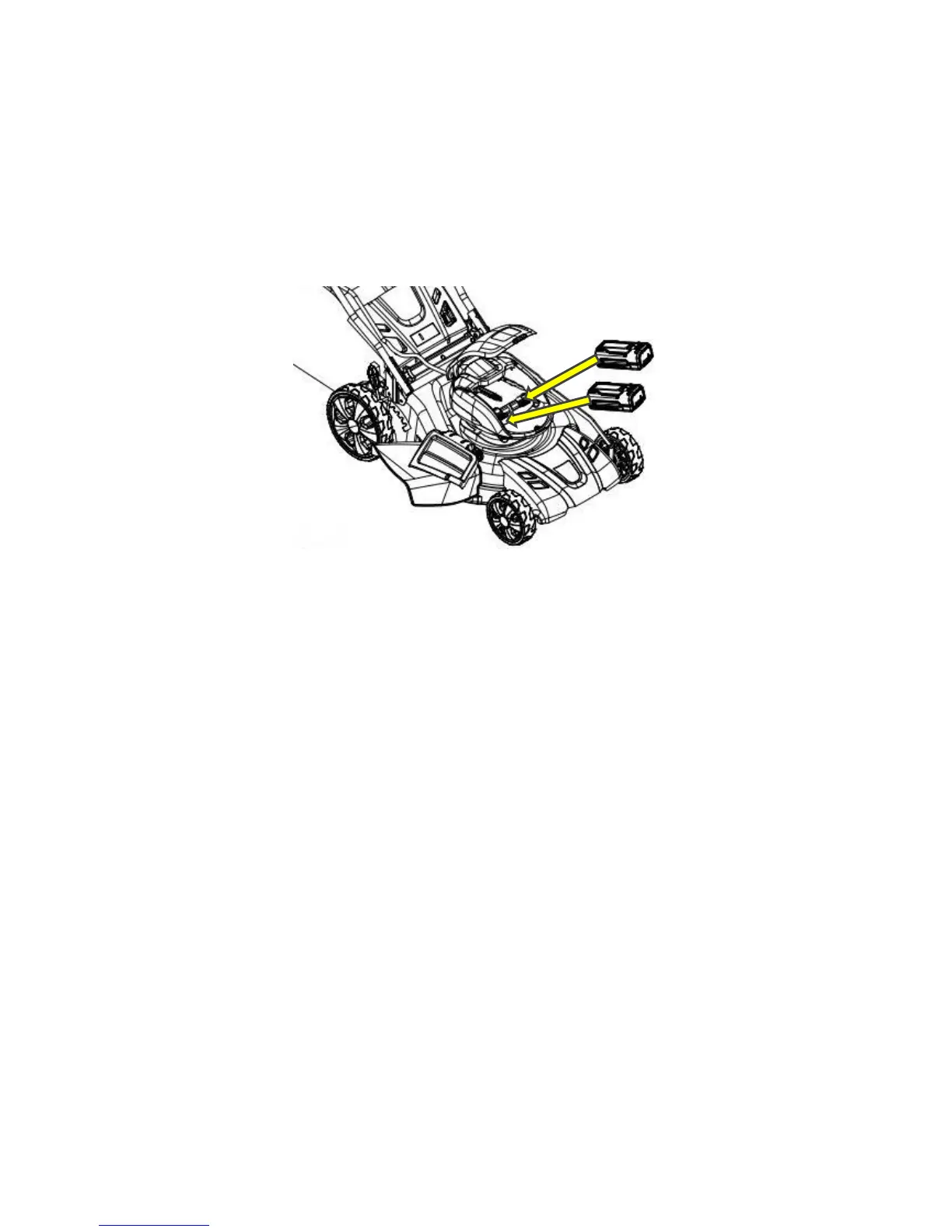

3.16 To install or remove the battery.
3.17 The mower is equipped with two slots for batteries.
3.18 Open the clear lid to reveal the slots for both batteries and slide the battery into one
of the two slots until it clicks into place.
3.19 Install the second battery in the same manner and ensure both batteries are fully
inserted and latched into position.
3.20 To remove the batteries, press the release tab and slide the batteries out of the
lawn mower.

Hyundai HYM120Li510 Specifications

General

Model Number	HYM120Li510
Cutting Width	510mm
Cutting Height	10 Positions 30-90mm
Grass Catcher Capacity	65L
Starting Method	Electric
Batteries	2 x 58v Lithium Ion
Battery Capacity	2.5Ah
Charger Voltage	240V
Measured Sound Level	94.08dB(A)
Guaranteed Sound Level	98dB(A)

Weight and Dimensions

Net Weight (Inc. batteries)	27.4Kg
Machine Dimensions W x H x D	8950 x 565 x 415mm
