MODE 6 - 24 channel 16 bit

Ideal for use with media servers, with a greater

resolution over the colours.

Each cell can be individually coloured with its own red

green blue channel. (most useful when each cell is

patched individually -6ch)

ch1 - red high byte cell 1

ch2 - red low byte cell 1

ch3 - green high byte cell 1

ch4 - green low byte cell 1

ch5 - blue high byte cell 1

ch6 - blue low byte cell 2

ch7 - red high byte cell 2

ch8 - red low byte cell 2

ch9 - green high byte cell 2

ch10 - green low byte cell 2

ch11 - blue high byte cell 2

ch12 - blue low byte cell 2

ch13 - red high byte cell 3

ch14 - red low byte cell 3

ch15 - green high byte cell 3

ch16 - green low byte cell 3

ch17 - blue high byte cell 3

ch18 - blue low byte cell 3

ch19 - red high byte cell 4

ch20 - red low byte cell 4

ch21 - green high byte cell 4

ch22 - green low byte cell 4

ch23 - blue high byte cell 4

ch24 - blue low byte cell 4

MODE 7 - 14 channel 8 bit

Colour control over each individual cell with a master

intensity and strobe having overall control over all 4 cells.

ch1- master intensity all cells

ch2 - strobe all cells

ch3 - red cell 1

ch4 - green cell 1

ch5 - blue cell 1

ch6 - red cell 2

ch7 - green cell 2

ch8 - blue cell 2

ch9 - red cell 3

ch10 - green cell 3

ch11 - blue cell 3

ch12 - red cell 4

ch13 - green cell 4

ch14 - blue cell 4

MODE 8 - 27 channel 16 bit

High resolution colour control over each individual

cell with a strobe and a high resolution master

intensity having overall control over all 4 cells.

ch1 - master intensity high byte all cells

ch2 - master intensity low byte all cells

ch3 - strobe all cells

ch4 - red high byte cell 1

ch5 - red low byte cell 1

ch6 - green high byte cell 1

ch7 - green low byte cell 1

ch8 - blue high byte cell 1

ch9 - blue low byte cell 1

ch10 - red high byte cell 2

ch11 - red low byte cell 2

ch12 - green high byte cell 2

ch13 - green low byte cell 2

ch14 - blue high byte cell 2

ch15 - blue low byte cell 2

ch16 - red high byte cell 3

ch17 - red low byte cell 3

ch18 - green high byte cell 3

ch19 - green low byte cell 3

ch20 - blue high byte cell 3

ch21 - blue low byte cell 3

ch22 - red high byte cell 4

ch23 - red low byte cell 4

ch24 - green high byte cell 4

ch25 - green low byte cell 4

ch26 - blue high byte cell 4

ch27 - blue low byte cell 4

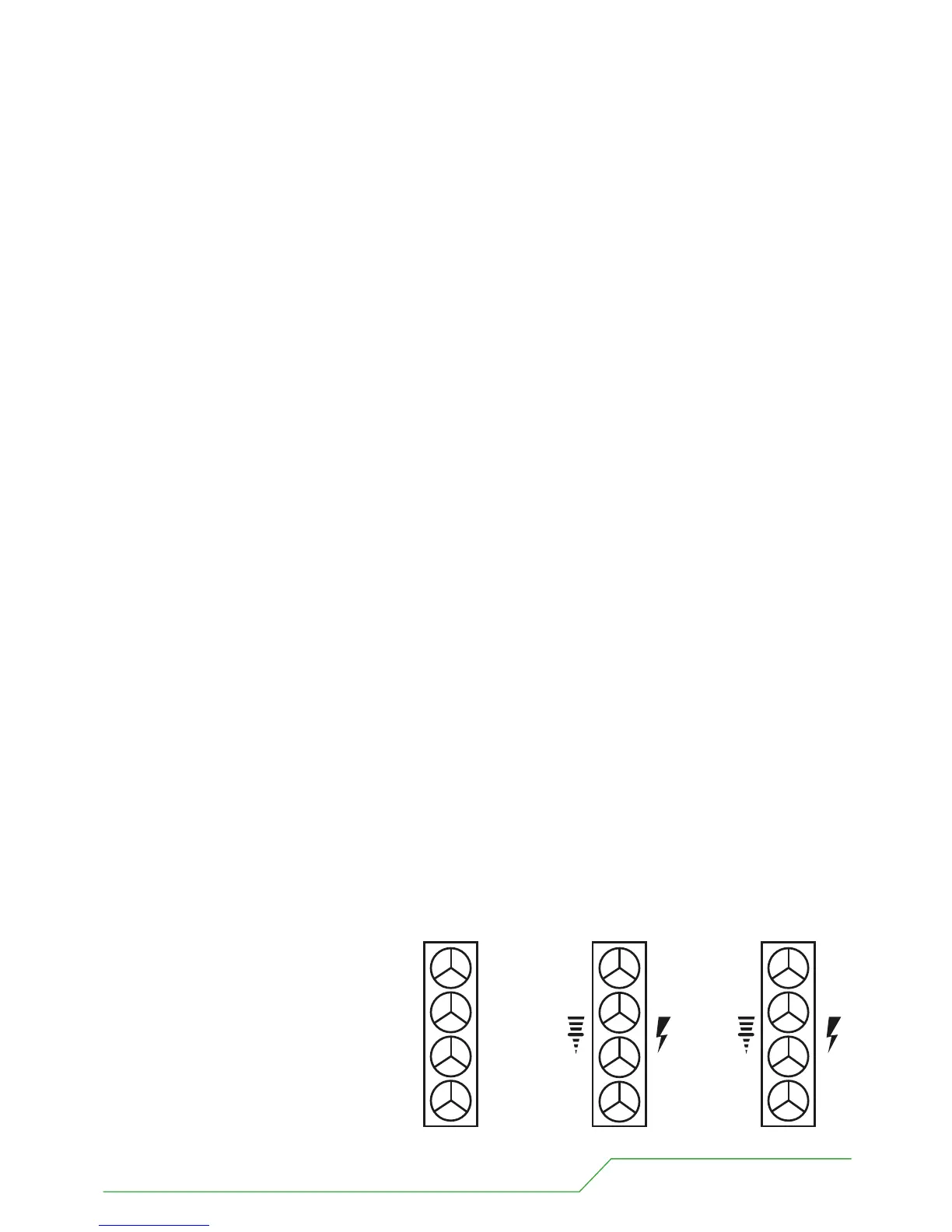

Mode 6 - 24 ch 16 bit Mode 7 - 14 ch 8 bit Mode 8 - 27 ch 16 bit

BB4 USERS MANUAL - PAGE 13
