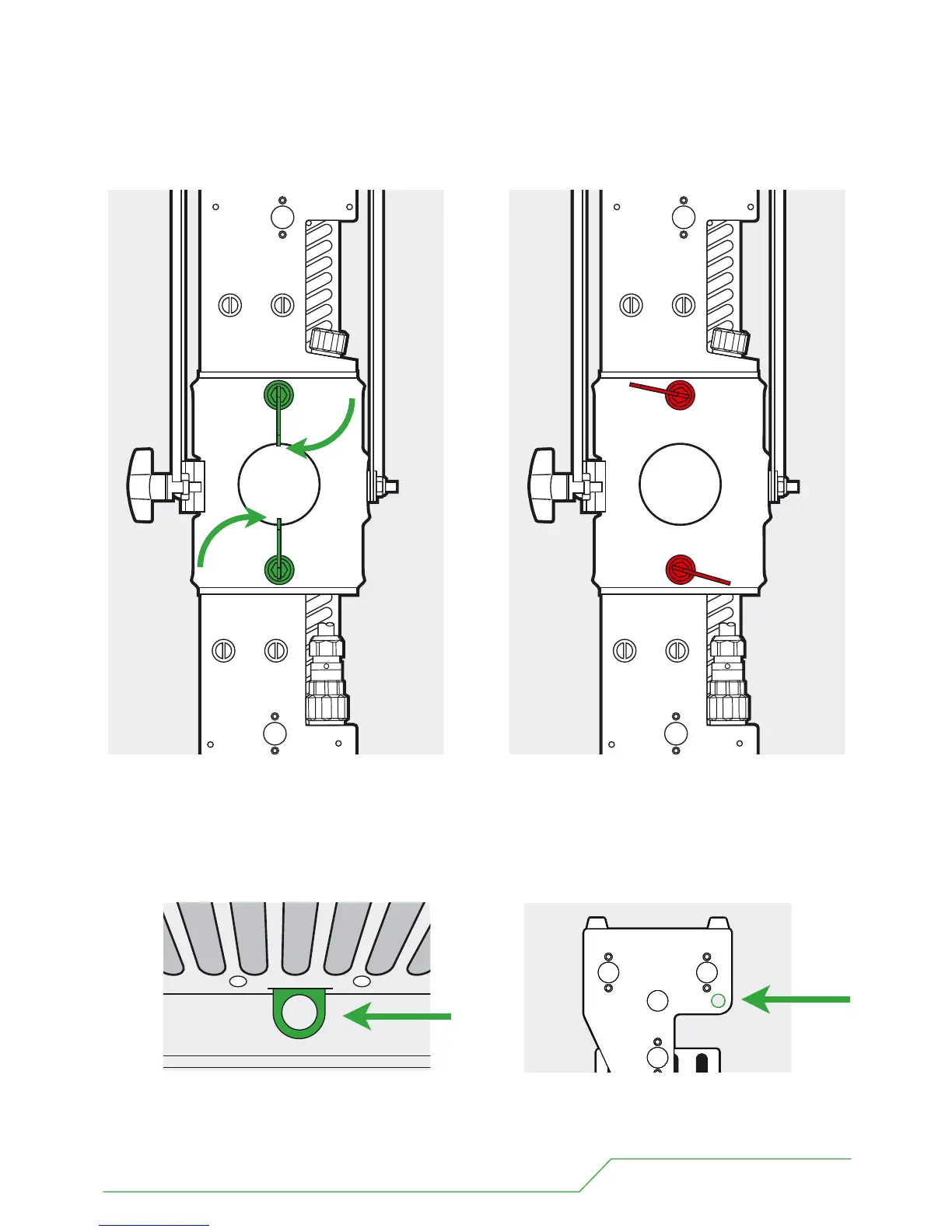

BB4 USERS MANUAL - PAGE 8
WRONG
So after a quarter clockwise both levers should
face each other in the centre.
ALWAYS secure the lamp to the truss, pipe e.t.c. with two safety bonds.
One attached to the lamp through the safety point shown in fig 1 the other attached to the
LAMP yolk through the safety point shown in fig 2. NEVER through or to the RIGGING yoke.
fig 1
fig 2
