INSTALLATION GUIDE
2022-1.0 IBEX EQUIPMENT CO

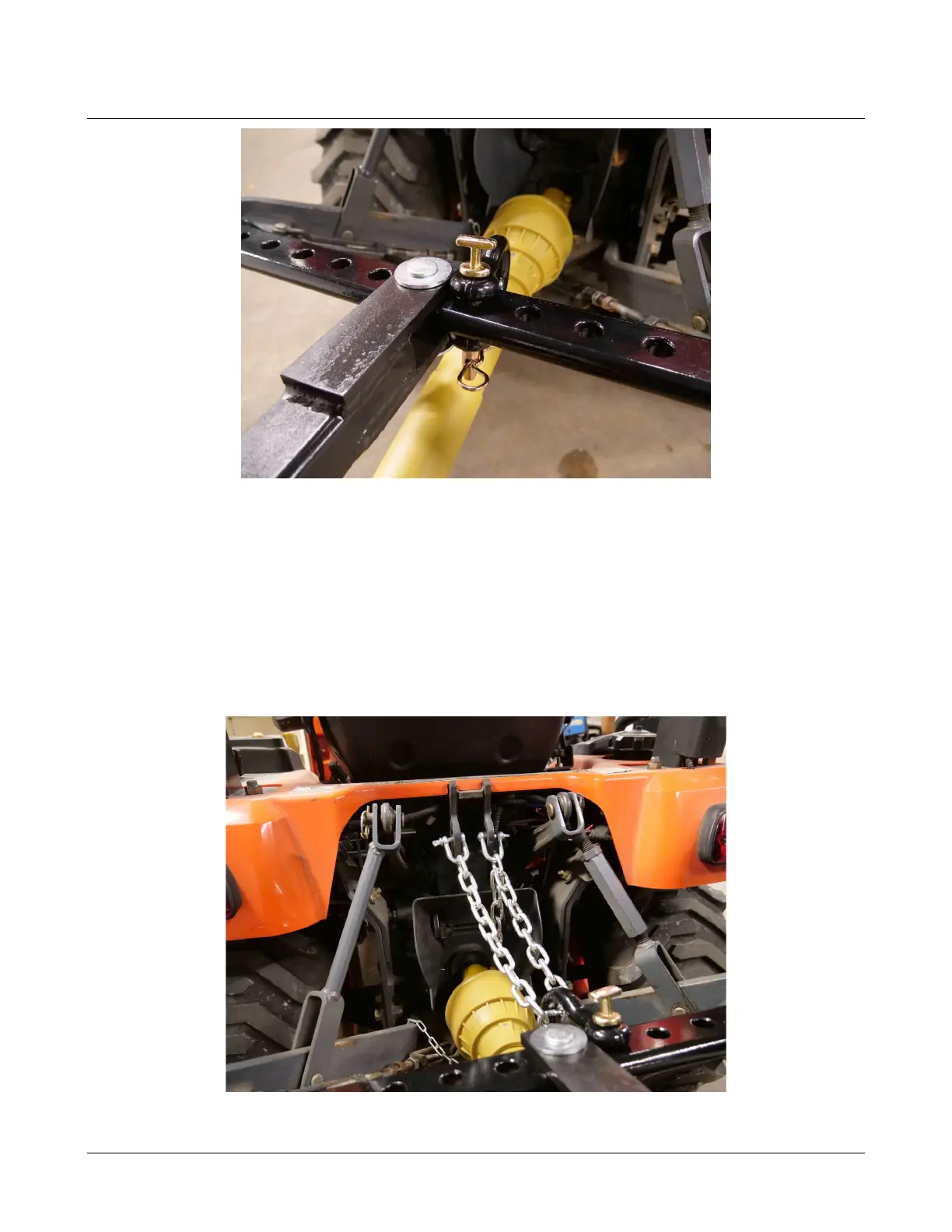

Figure 8
If you have a top link installed, remove it and attach the end of the chain to one
of the tractor's top link brackets using one of the smaller clevises as shown in
(Fig. 9). Then thread the chain through the larger clevis and then back to the
other top link bracket on the tractor. Attach the second smaller clevis to the
other top link bracket. Select a different chain link as needed to ensure that the
chain is mostly snug, as seen in (Fig. 9).
Figure 9
To Next Page
