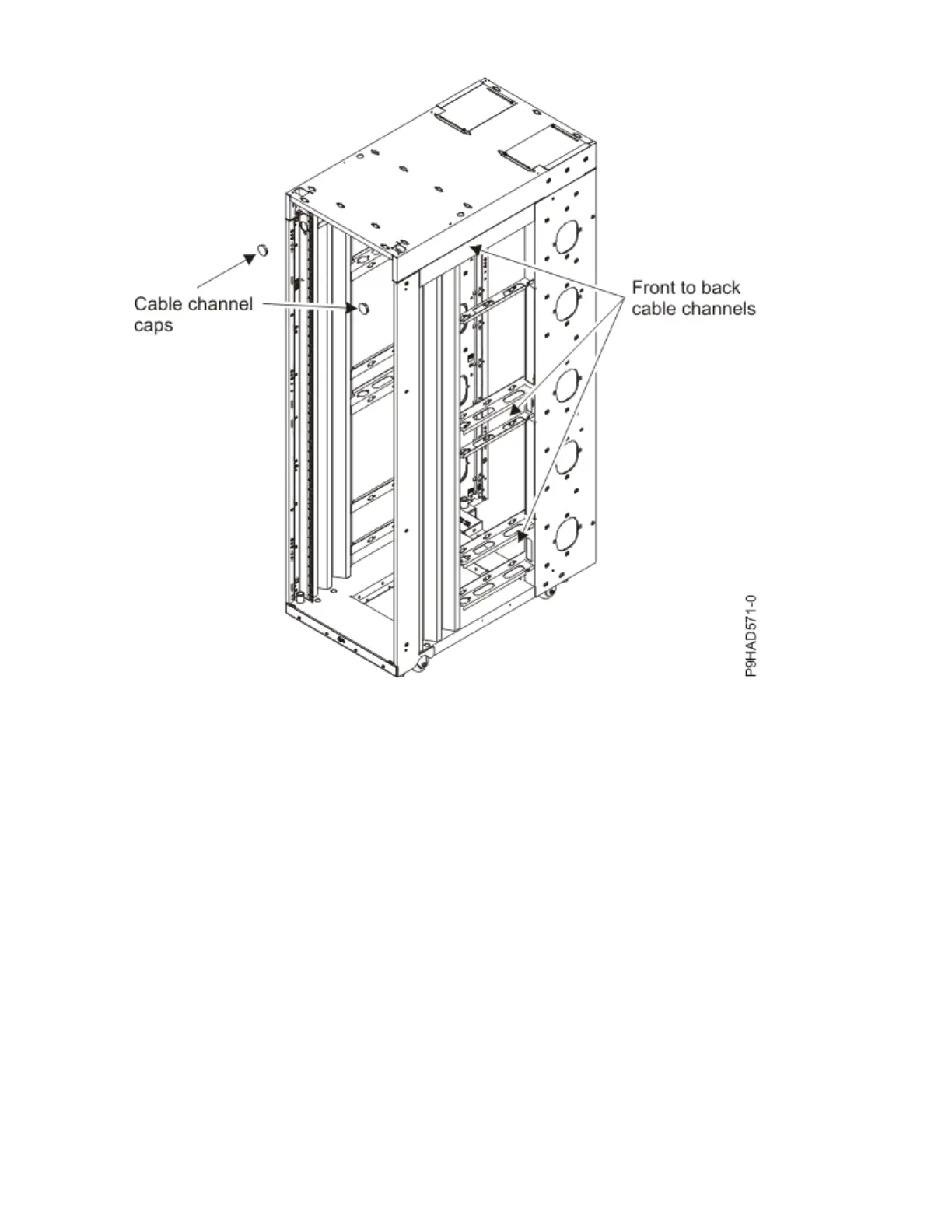

Figure 17. Cabling within the rack
Cabling under the floor
Cables can be routed straight down through the side channels of the rack or routed towards the center of
the opening.
56
Power Systems: Site and hardware planning
