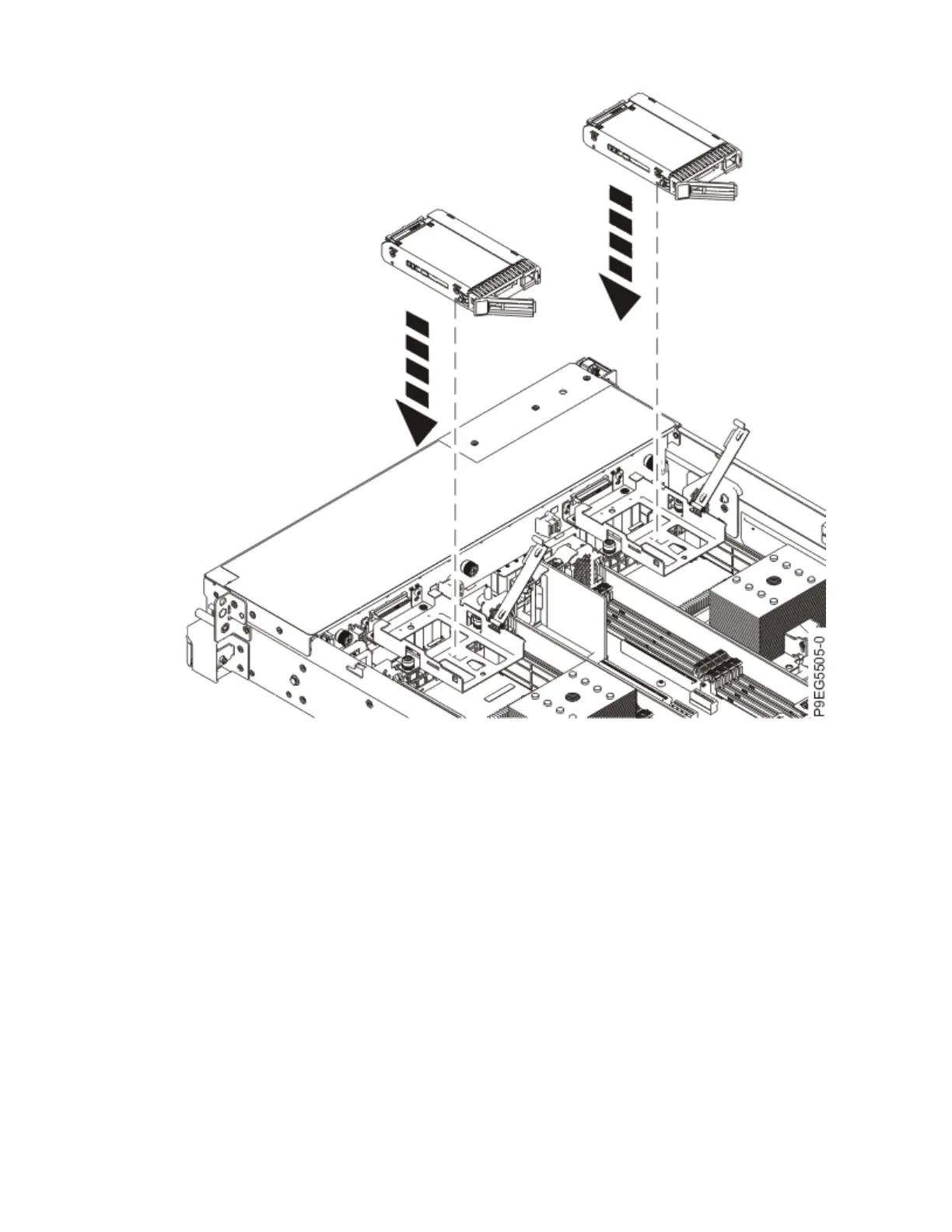

Figure 96. Lowering the drive into the drive tray
c) Slide the drive forward by using the drive handle until it contacts the disk drive backplane.
d) Push drive handle (A) until the drive is fully seated and the drive handle locks.
96
Power Systems: System backplane
