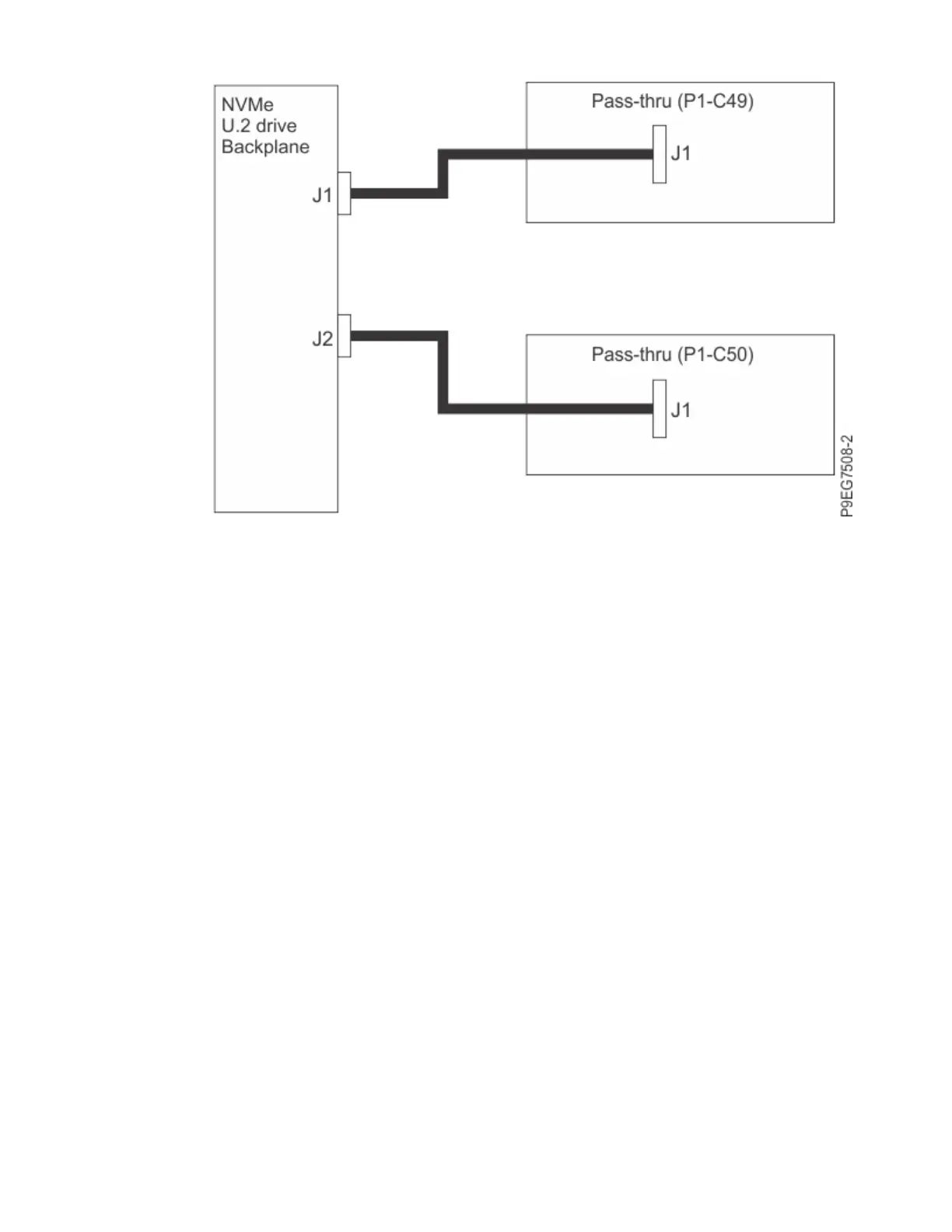

Figure 103. Connecting the NVMe cable for a system with two NVMe U.2 pass-thru cards in slot

P1-C49 and slot P1-C50

e) Push the connector in until the connector latch clicks. See the following gure.

Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,

or 9223-22S 103
