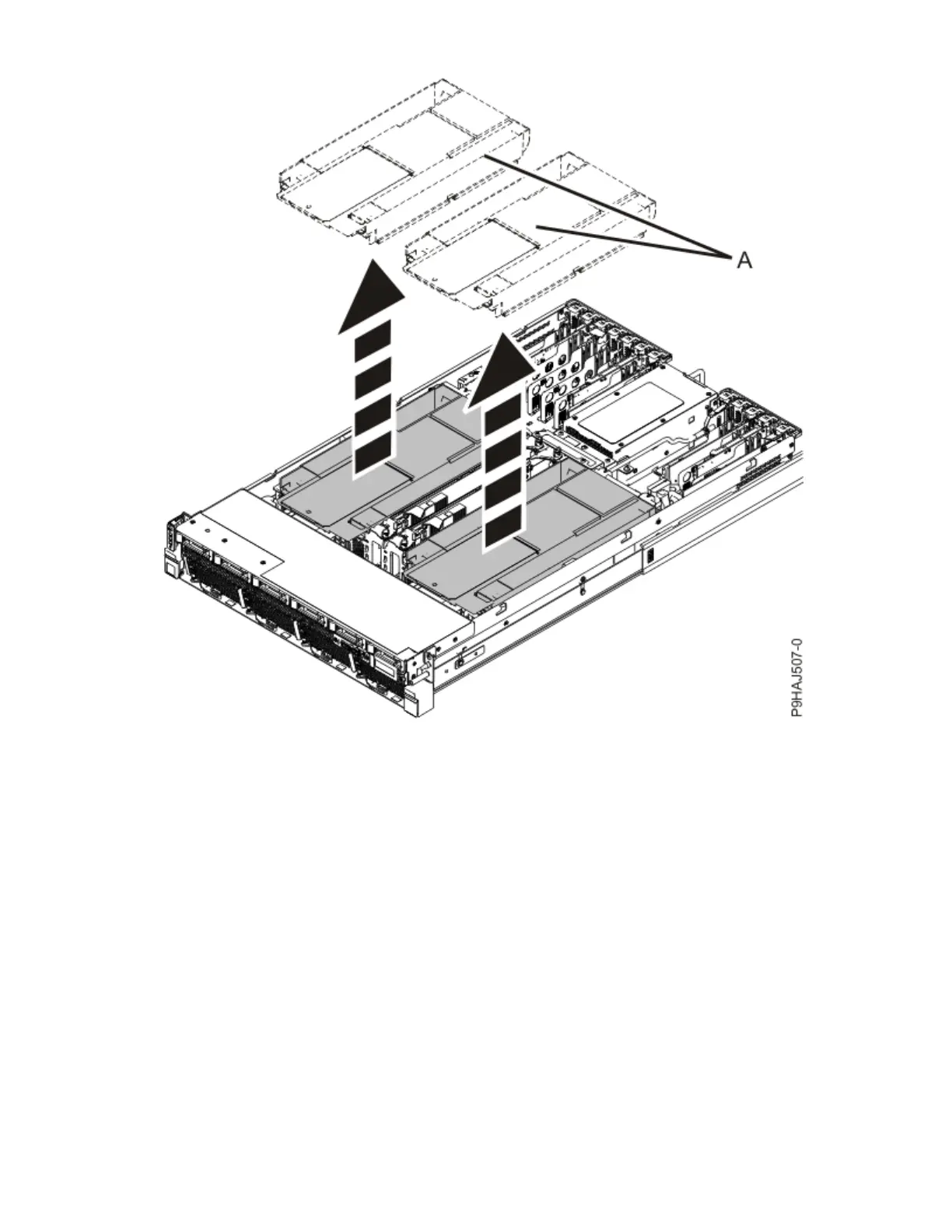

Figure 10. Removing the air baffle
3. Remove the PCIe adapters:
a) Label and disconnect all external cables that are attached to the adapters.
b) Record the slot number and location of each adapter being removed. See the following gure.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 13
