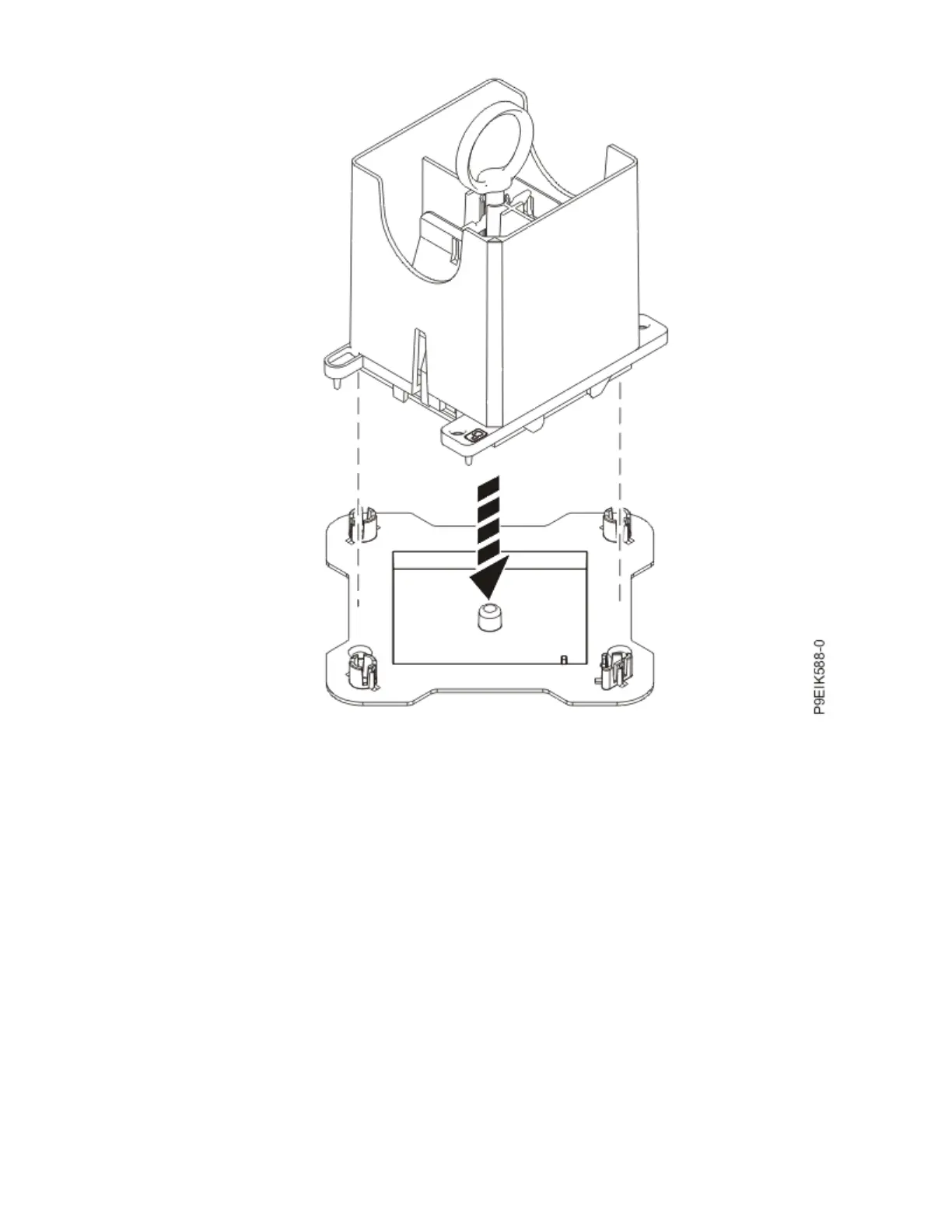

Figure 55. Placing the tool on the system processor module tray
g) To release the system processor module, push the pin downward. Hold the pin down while
pushing the blue tabs inward. Ensure that the pin catches on the openings in the blue tabs, and
that the blue tabs are locked in a xed position. See the following gure.
Note: To prevent the system processor module from falling, pull up on the round lever before you
place the tool on the system processor module tray.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 57
