IBM 5105-22E User Manual

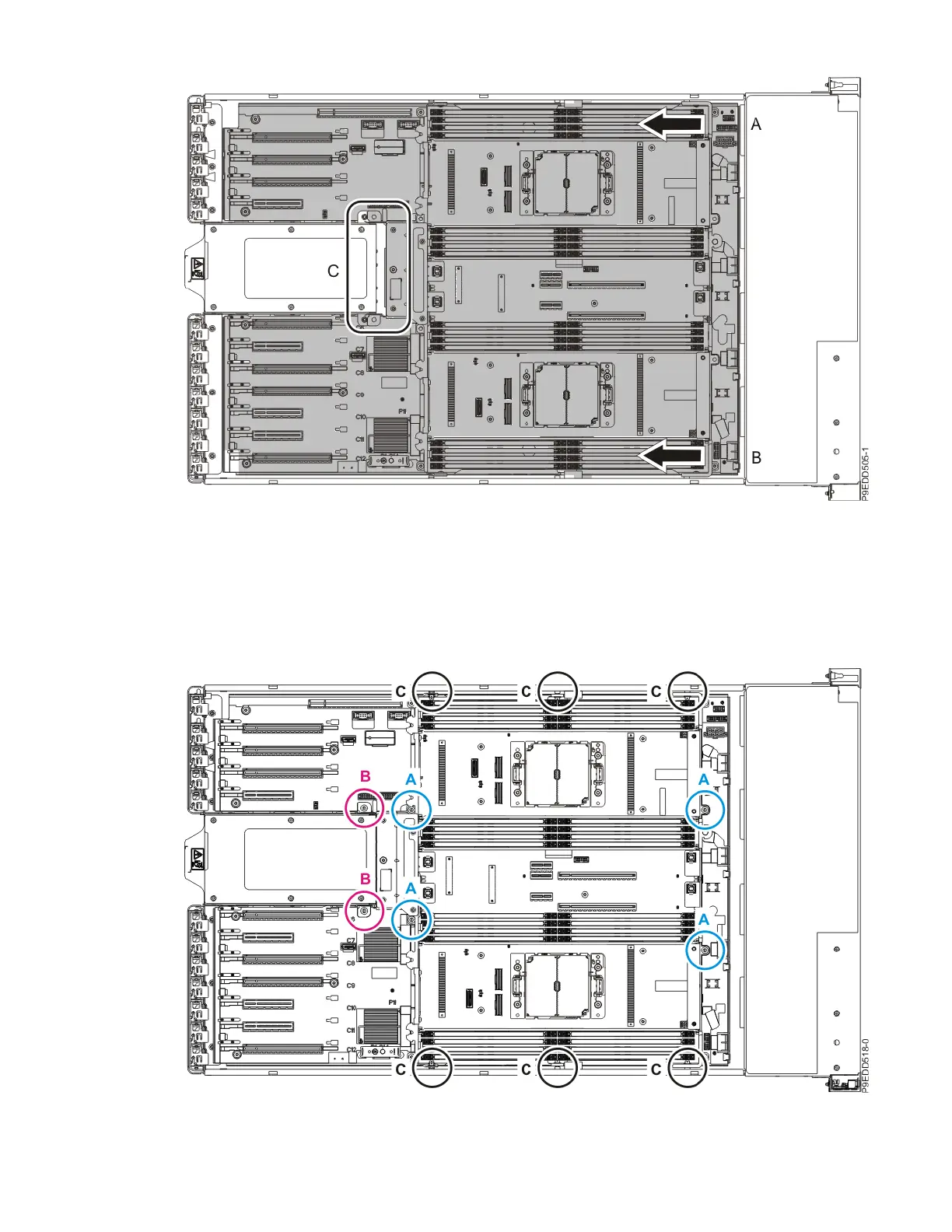

Figure 69. Sliding the backplane towards the rear of the system
e) Using a Phillips screwdriver, replace and screw in the six screws (C) that attach the backplane to
the sides of the system chassis. See the following gure.
Notes:
• You might nd it helpful to use a magnetic screwdriver.
• Do not remove the silver Torx screws.
Figure 70. System backplane screw locations
70
Power Systems: System backplane
