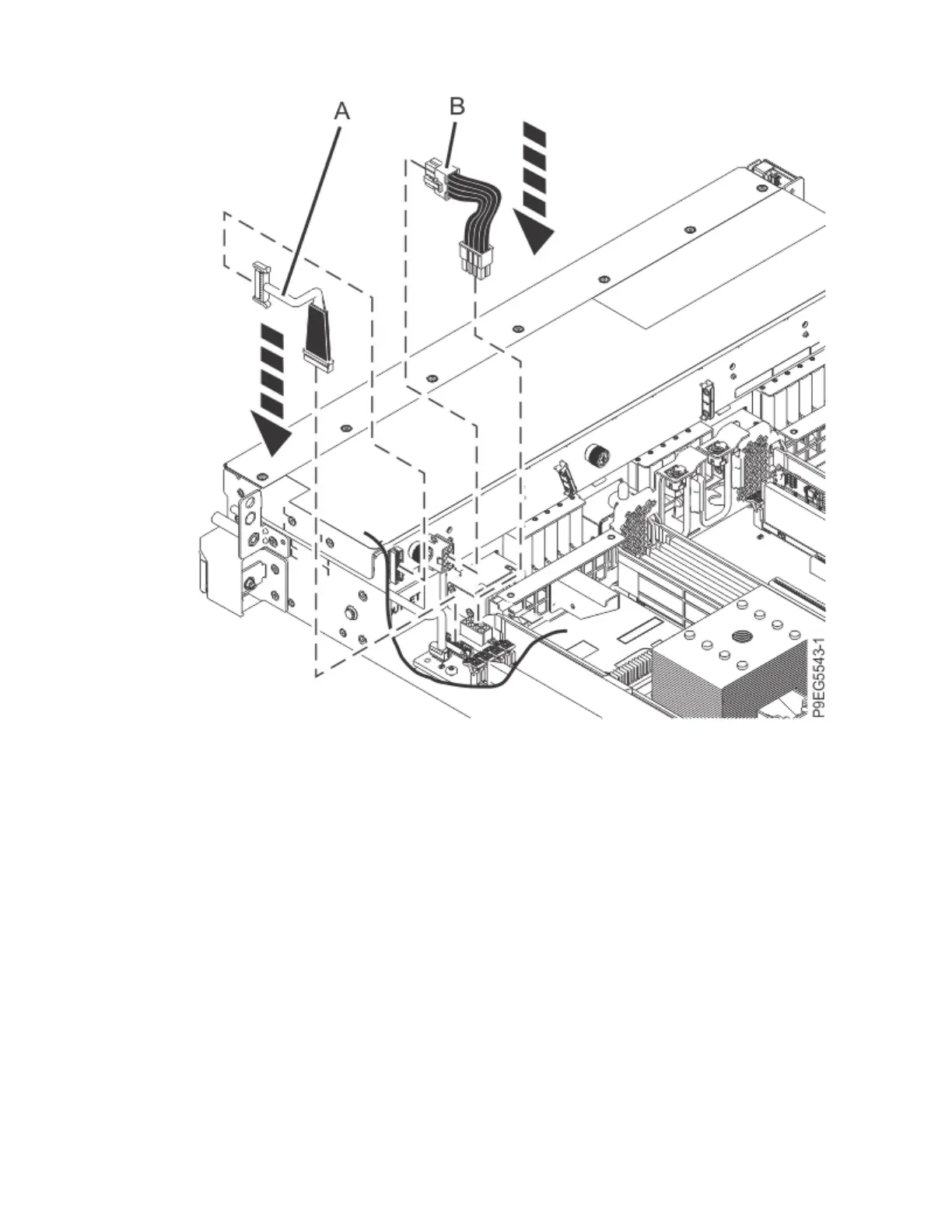

Figure 84. Reconnecting the signal cable and the power cable
13. Replace the front drives:
a) Support the drive by the top and bottom edge as you slide the drive all the way into the system.
b) Push the drive bay handle (A) in until it locks.
84
Power Systems: System backplane
