13. Attach the USB Interface (Front) Assembly (PureFlex systems only) from the drive connector 1, and attach the power

connector 2.

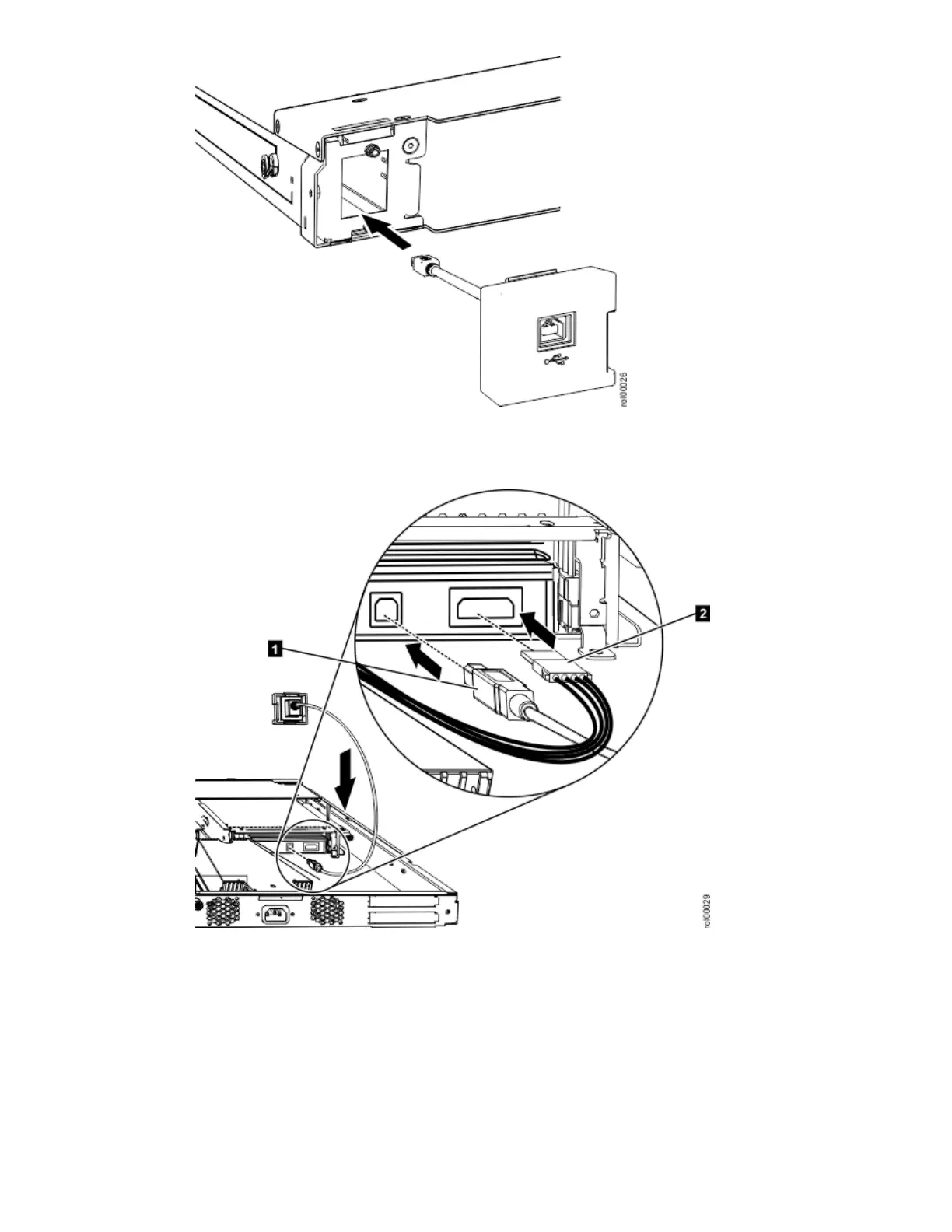

Figure 12. Attach USB Interface (Front) Assembly (PureFlex systems only)

14. Install each Interface Assembly into the Enclosure FRU. Attach the Interface Assembly to the drive connector 1, and

attach the Power Connector 2. Attach the power jumper 3.

Figure 13. Attach Interface Assembly

60 IBM 7226 Model 1U3 Storage Device Enclosure
