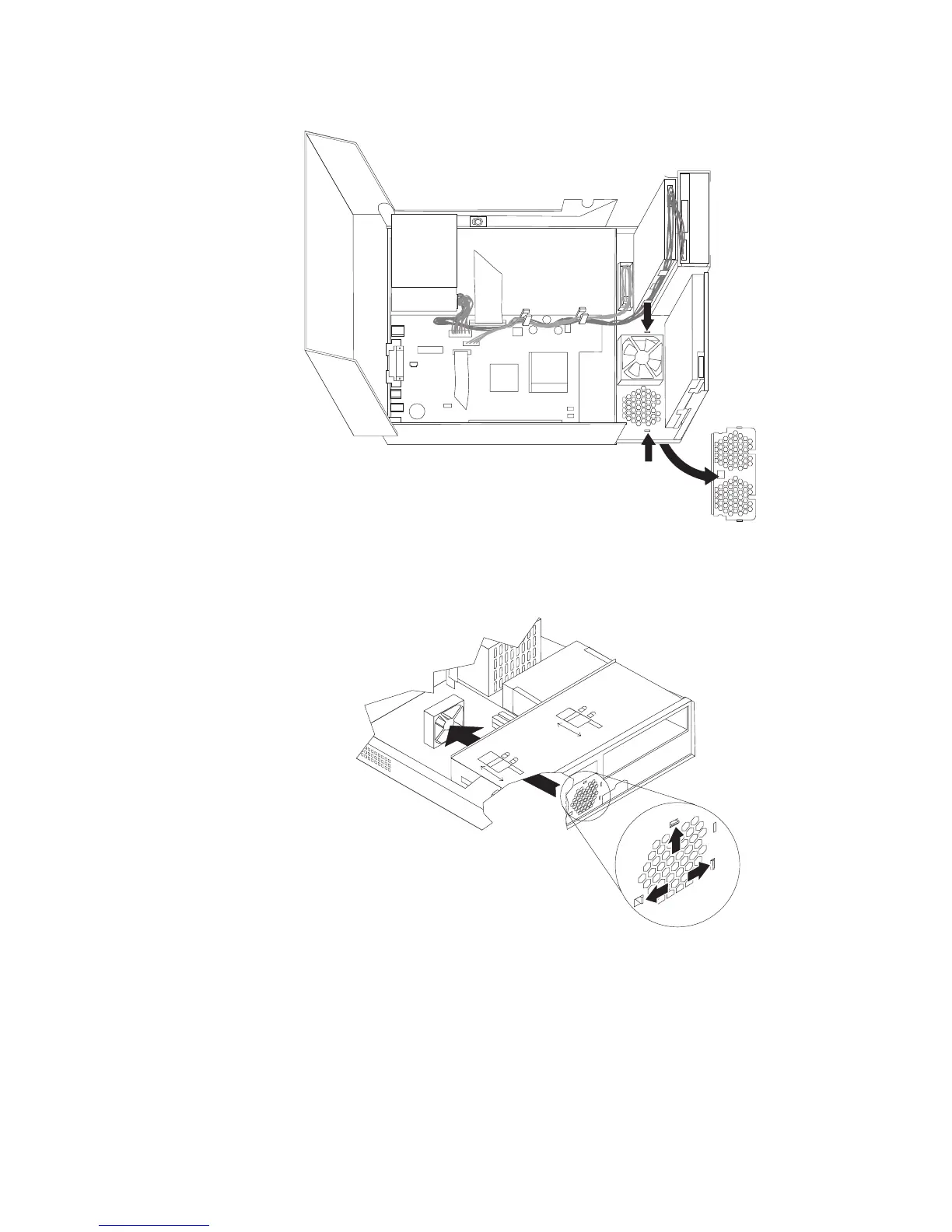

5.
Remove
the
plastic
insert
behind
the
bezel
by
releasing
the
tabs
as
shown:
6.
Remove
the
fan
assembly
by
releasing
the
tabs
out
as
shown.
7.
Install
the
new
fan
assembly
and
connect
the
fan
cable
to
the
system
board.
8.
Reinstall
the
plastic
insert.
9.
Reinstall
the
front
bezel.
10.
Lower
the
drive
bay
assembly.
11.
Replace
the
cover,
and
connect
the
cables.
See
“Closing
the
cover
and
connecting
the
cables”
on
page
24.
Appendix
A.
Replacing
customer
replaceable
units
(CRU)
43
