Cable section lengths
SAS cabling configurations
The following sections provide the typical supported SAS cabling configurations. Many configurationscan
be constructed that are not supported and will either not function correctly or generates errors. To avoid
problems, restrict cabling to only the general types of configurations that are shown in the following
sections.
v “SAS adapter to 5886 disk expansion drawers” on page 129
v “SAS adapter to media expansion drawer” on page 132
v “SAS adapter to expansion drawer combinations” on page 133
v “System external SAS port to disk expansion drawer” on page 134

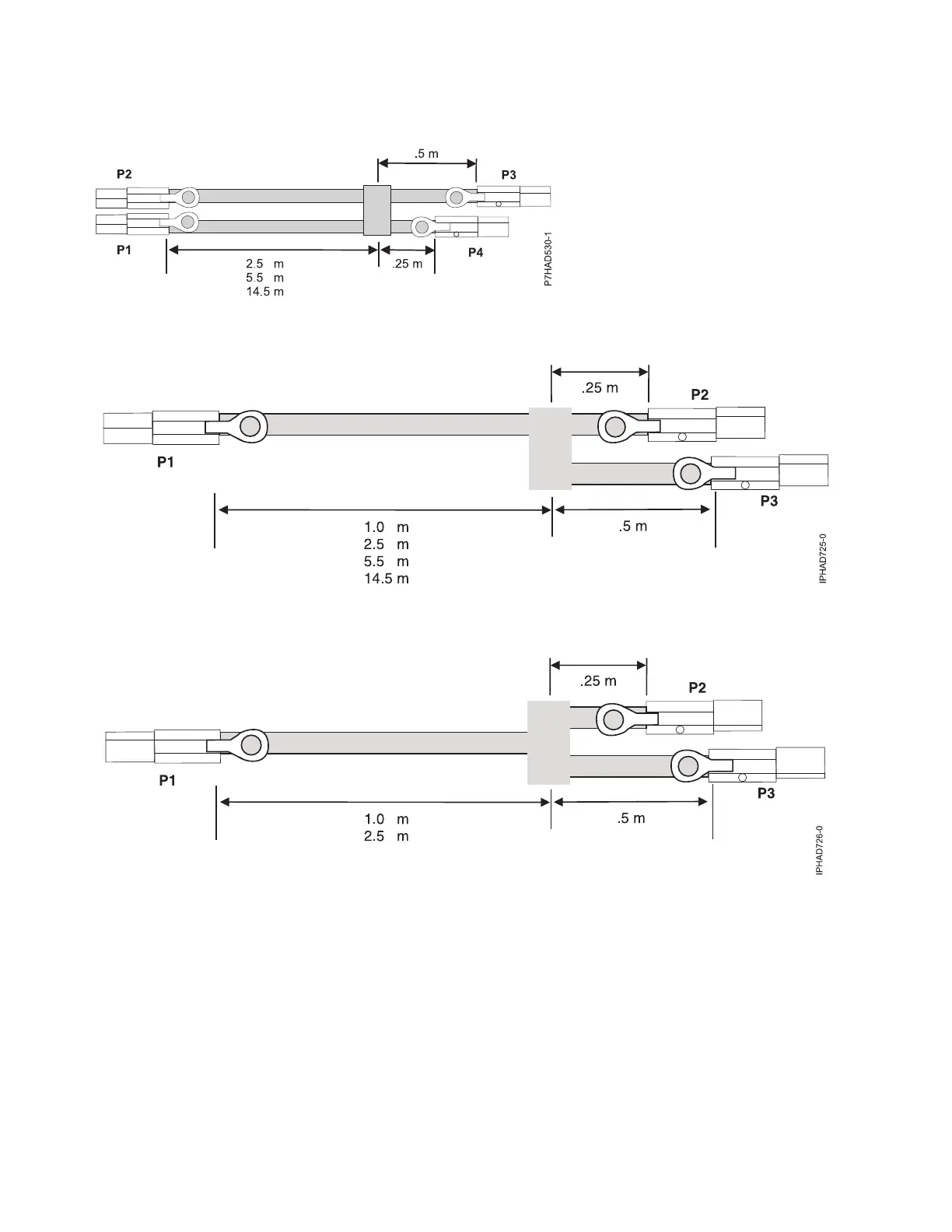

Figure 57. SAS external X cable assembly cable lengths
Figure 58. SAS external YO-cable assembly cable lengths
Figure 59. SAS external YI-cable assembly cable lengths
128 Site and hardware planning
