6. Two PCIe3 SAS adapters with HD narrow connectors to two 5887 enclosures via a mode 1
connection.
v No cascading allowed.
v Two HD AA narrow cables are required.

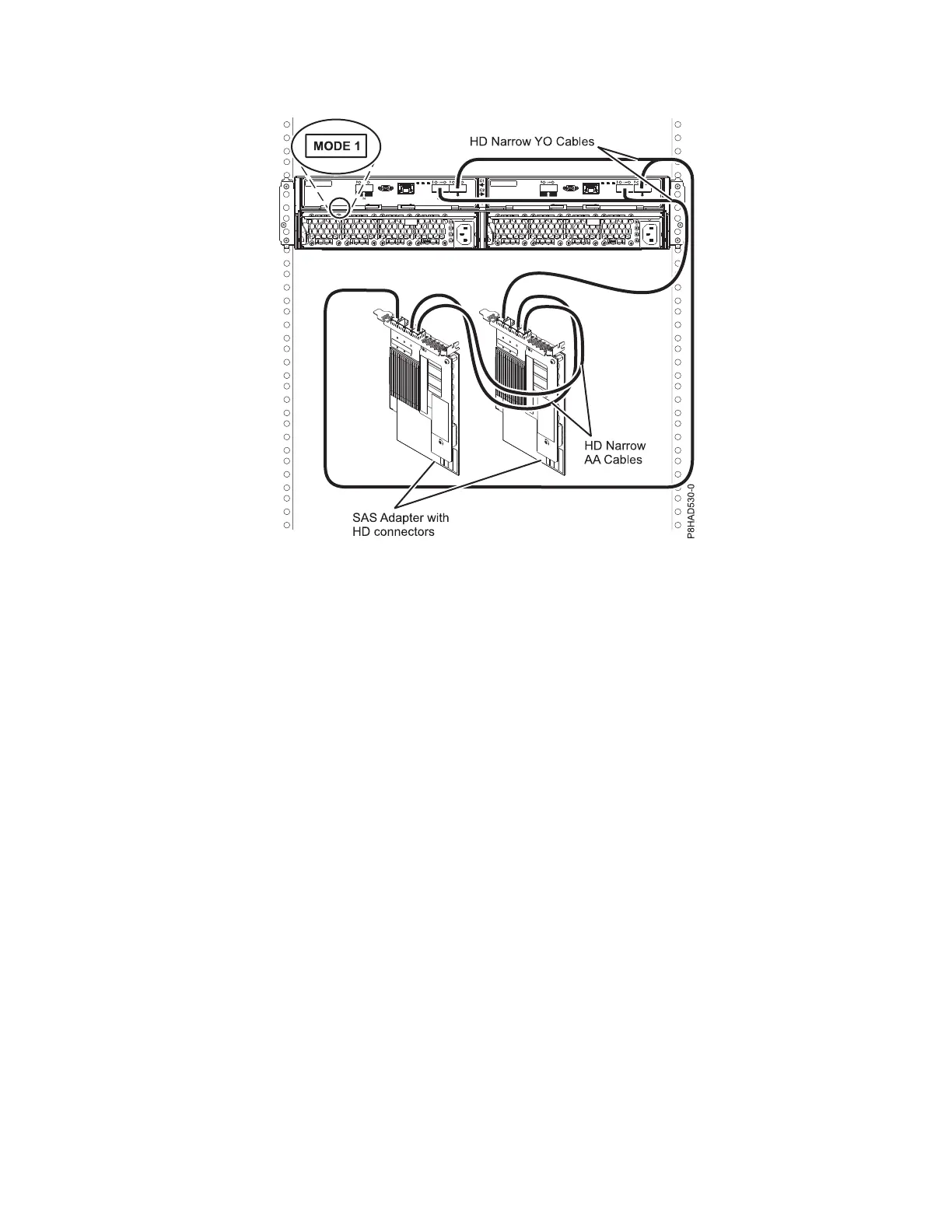

Figure 89. Mode 1 connection of a 5887 enclosure to two PCIe3 SAS adapters with HD narrow connectors.
Site and hardware planning 159
