8. Two PCIe3 SAS adapters with HD narrow connectors to four 5887 enclosures via a mode 1

connection.

v No cascading allowed.

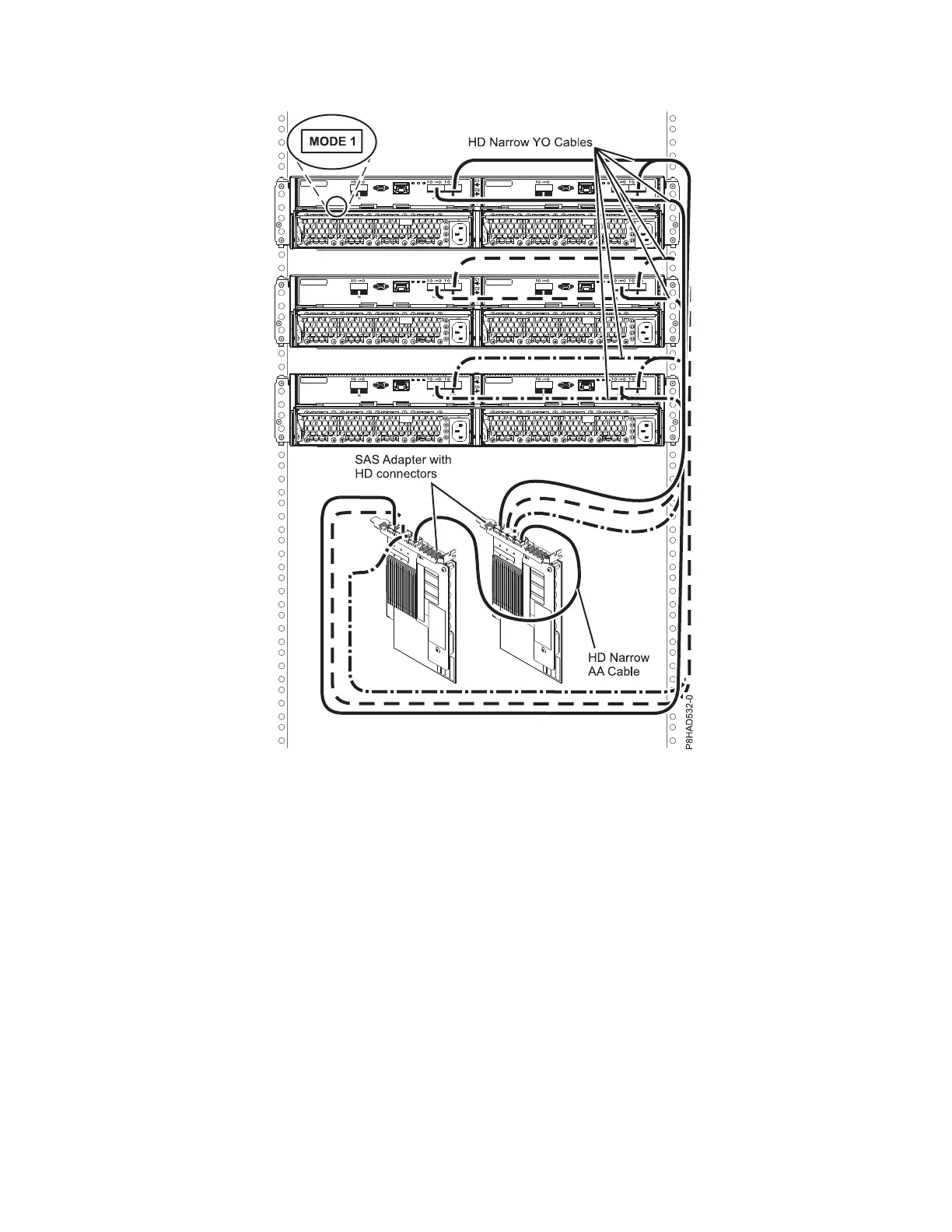

Figure 91. Mode 1 connection of three 5887 enclosures to two PCIe3 SAS adapters with HD narrow connectors.

Site and hardware planning 161
