Cabling
under
the
floor
A
cable
access
bar
located
on
the
bottom
rear
of
the
rack
helps
to
route
the
cables,
leaving
the
rack
in
place.
This
bar
can
be
removed
for
installation
and
then
reattached
after
the
rack
is
installed
and
cabled.

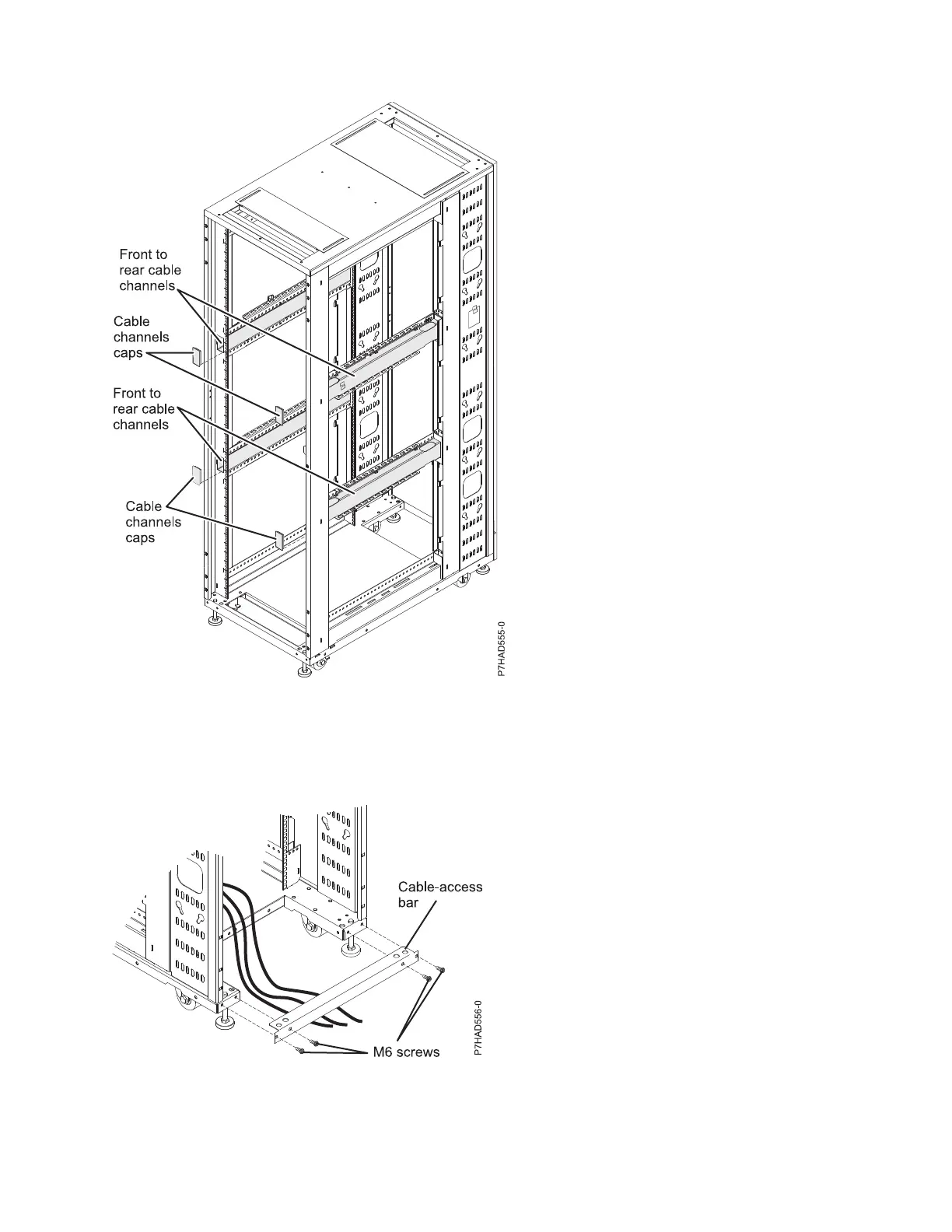

Figure
27.
Cabling
within
the
rack
Figure
28.
Cable
access
bar
Site
and
hardwar
e
planning
51
